5-6 OneGear™ Standard Plenum Assembly Procedure
7712-IN001B-EN-P – June 2013
12. Remove the temporary fastened hardware from Step 5; the front inner
bracket should stay in place as a result of Step 11.
13. Attach the outer side bracket that is on an angle (81023-075-01) at the
front of the plenum using M8 hardware (M8 HHCS, 19 mm [0.75"]
OD fl at washers and lock washer). Refer to Figure 5.7.

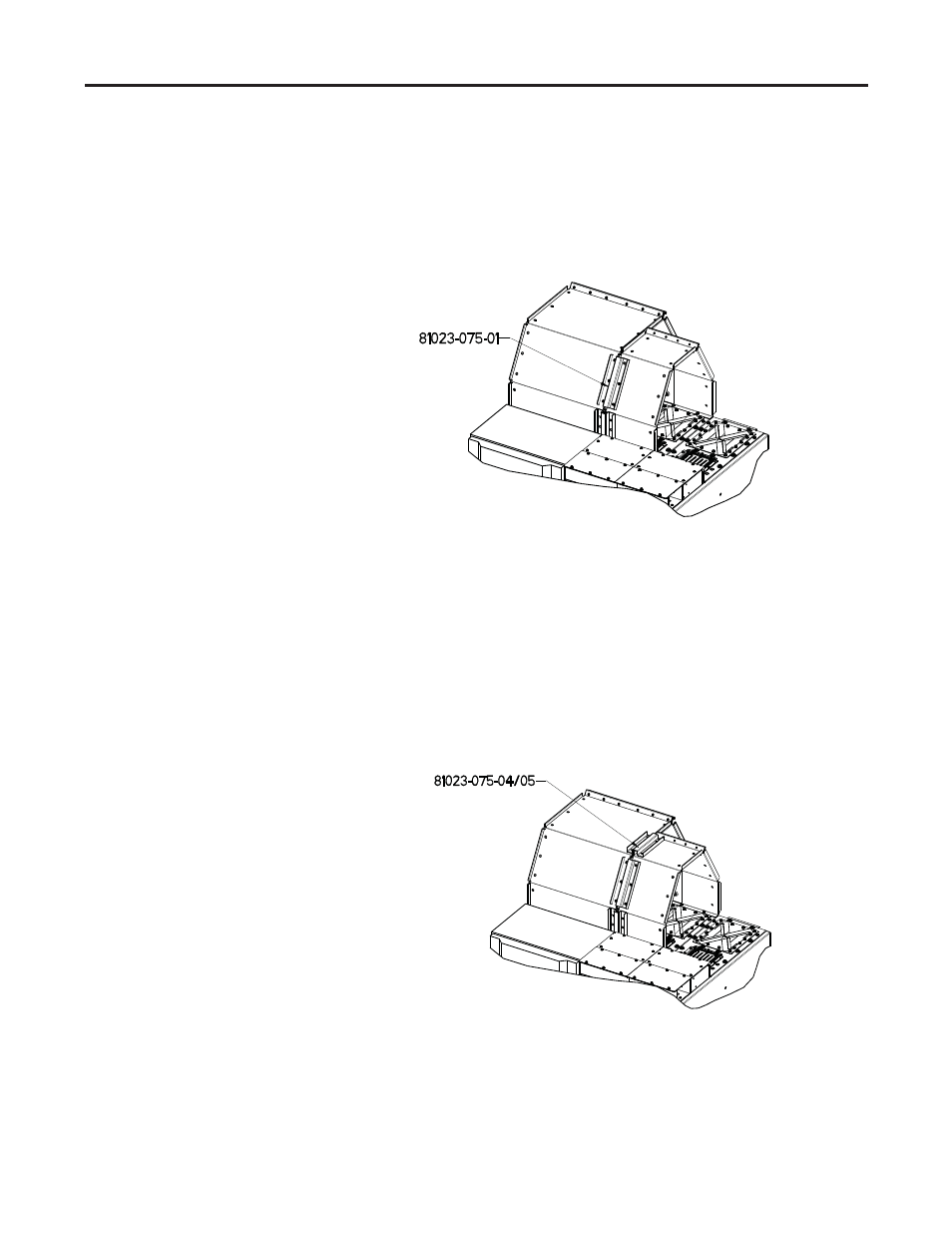

Figure 5.7 – Attaching front outer bracket on angle
14. Remove the temporarily fastened hardware from Step 9; the top inner
bracket should stay in place as a result of Step 13.
15. Attach the top outer side bracket (81023-075-04/05) at the top of the
plenum using M8 hardware (M8 HHCS, 19 mm [0.75"] OD fl at washers
and lock washer). Refer to Figure 5.8.
Figure 5.8 – Attaching top outer bracket
