Equipment Installation 4-11
7712-IN001B-EN-P – June 2013
4.6.1 Mechanical Connections between Enclosures
For fi nding the mechanical connection bolts in the front of the structure,
remove low voltage wire duct cover from the front of the contactor cart
section, and load cable compartment. The covers are held in place by two
bolts each. Each section has these covers that need to be removed.

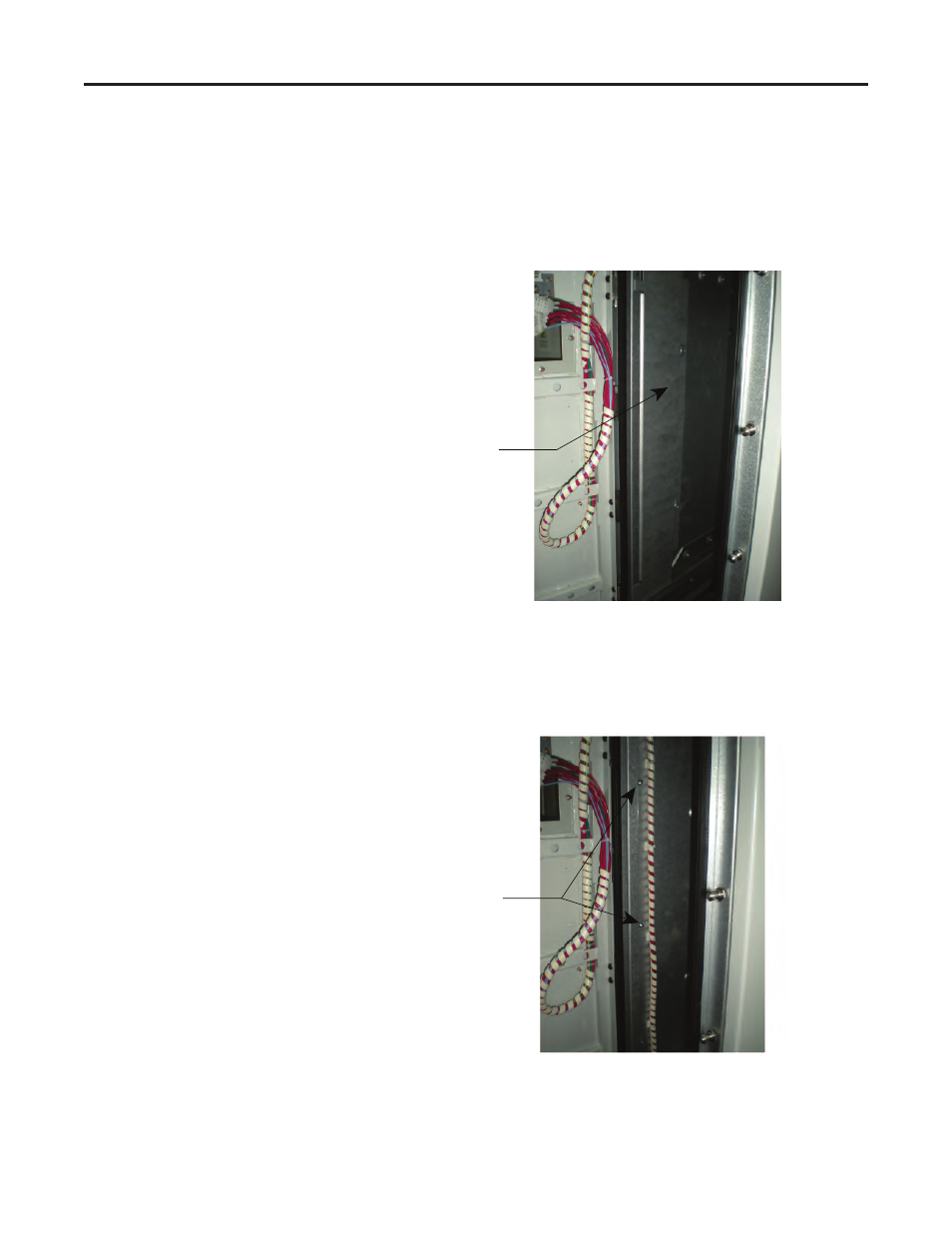

Figure 4.17 – Low Voltage Wire Duct Cover
Inside these LV wire ducts, you will fi nd the bolts needed to connect each
section together.
Figure 4.18 – Mechanical Mounting Bolts in the Contactor Compartment
Low Voltage wire duct cover
in Contactor Compartment
Connecting bolts
for front of the cabinet
