Rockwell Automation 2100 CENTERLINE Motor Control Center (MCC) Units with Vertical Operating Handles User Manual
Page 13

Rockwell Automation Publication 2100-IN014F-EN-P - March 2014
13
CENTERLINE 2100 Motor Control Center (MCC) Units with Vertical Operating Handles

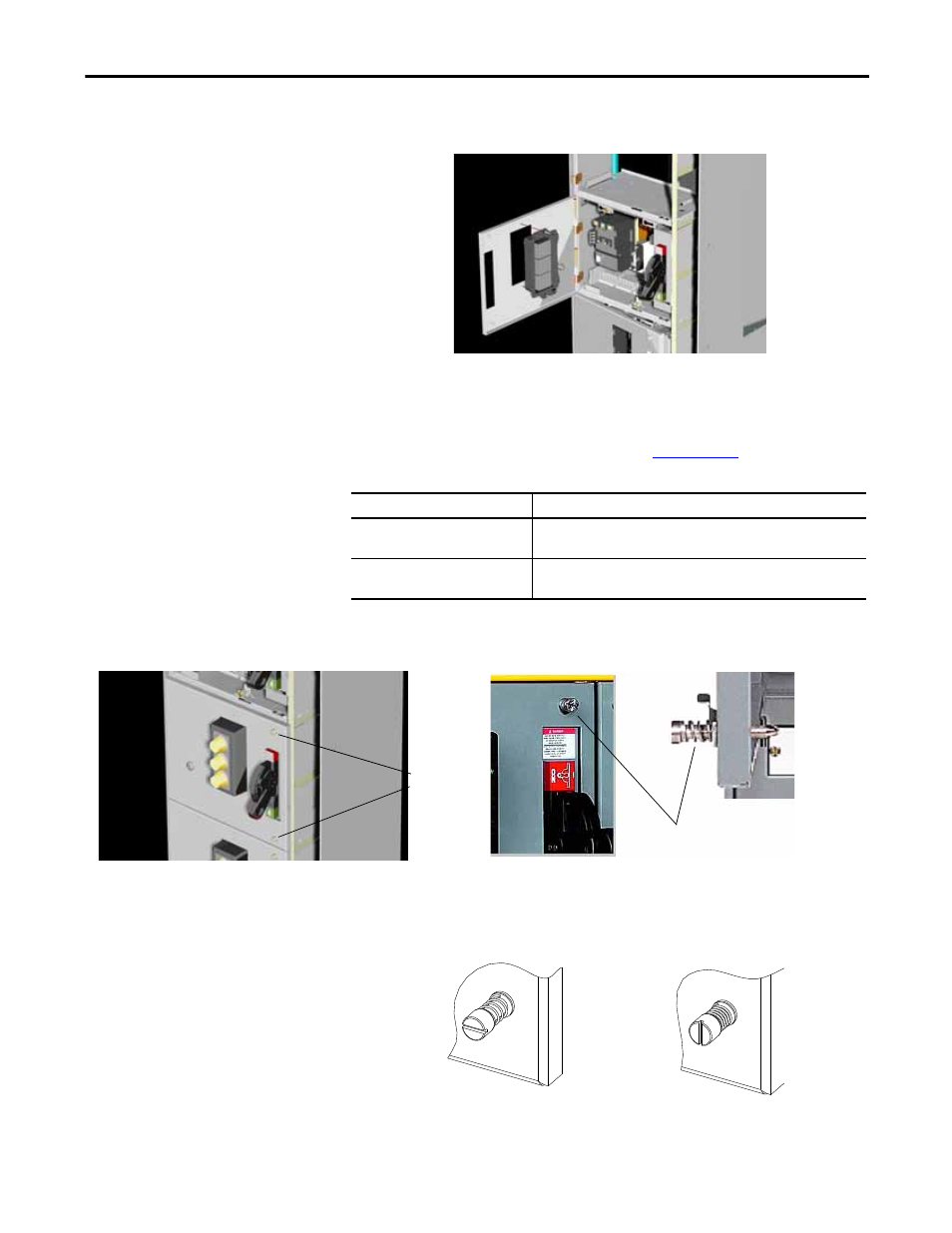

3. If a control station is present, place it through the door cutout and tighten
the captive screws.
4. If swing-out latch brackets are present, rotate the movable portion of the
swing-out latch bracket in the counter-clockwise direction unit it stops.
5. Close the door and secure the latch.
Refer to MCC instructions, publicat
information on proper door latch orientations.
For
Follow This Step
Non-arc resistant latches
Turn each door latch 1/4 turn until it catches on the unit support pan or
structure and holds the door closed.
Units that are equipped with arc
resistant door latches
Orient the slot of the latch so that it is horizontal, then push in the latch and
rotate 1/4 turn.
TIP
Latches may require a flat-head screwdriver to open and close.
Latch
Arc Resistant Latch
TIP
When properly latched, the slots on all of the arc resistant latches are
vertical and the latch springs are compressed. The spacing of the spring
coils is decreased.
Uncompressed
Spring -
Unlatched
Compressed
Spring -
Latched
