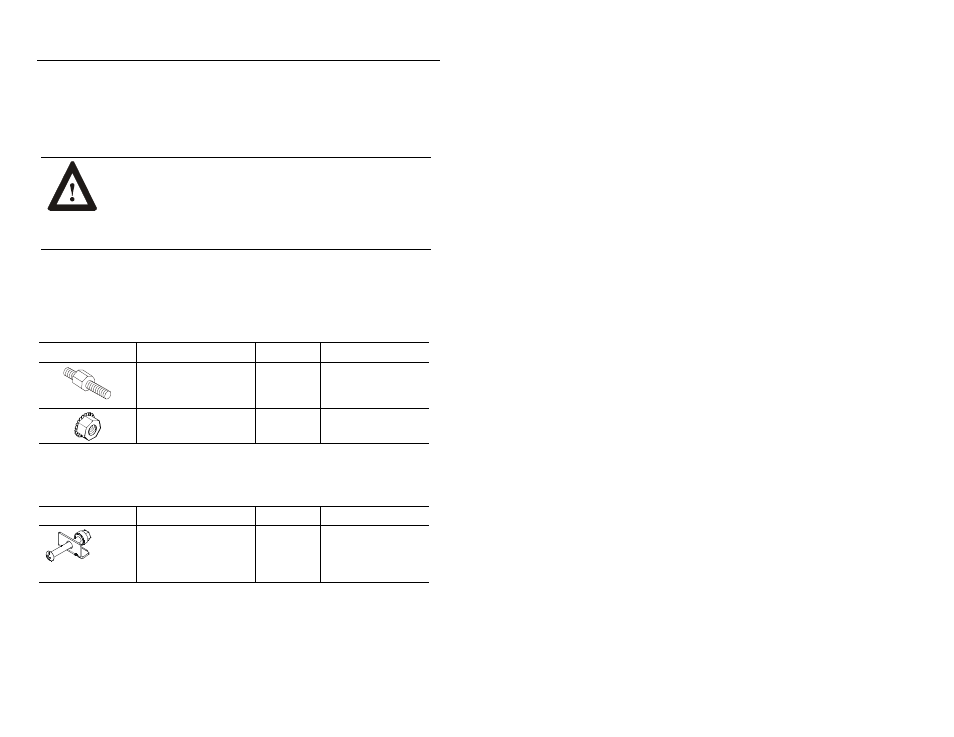

Page 3
RAC6180 Industrial Computers
3
Publication 6180-IN001B-EN-P
The RAC6180 must be mounted in a vertical position as illustrated in this
manual. Installing the RAC6180 in any other orientation may result in
overheating due to improper airflow.
ATTENTION: The bottom of the chassis has a knockout
panel. This knockout was provided for special
applications with other Allen–Bradley products. Do not
remove this knockout. If the knockout is removed, the
RAC6180 will not meet UL 1950 standards for
flammability containment.
Mounting Hardware
The RAC6180 is shipped with the following mounting hardware installed
on the bezel.
Item
Description
Quantity
Use For
1.265
−inch long
mounting studs with
integral spacer
18
Panel or enclosure
mounting
Self-locking nuts
18
Panel, enclosure,
or rack mounting
Mounting clips can be used instead of the mounting studs and are ordered
separately.
Item
Description
Quantity
Use For
Mounting Clips
Catalog No. 2711-
NP1
Each
Package
Contains
10 Clips
Panel or enclosure
mounting
