2–23 Configuring your Reader
Publication 2755-6.14
Note: The following table of 32 ALT characters can be used along
with the above RS232 options as programmable prefix or suffix
identifiers. For example, if you wanted to use the carriage return
character (CR) as a programmable suffix identifier, select the
Programmable suffix identifier as an RS232 choice in the OPTIONS
pull–down menu. Then hold down the ALT key and type CTRL M.
CONTROL CODES for ALT characters
Character Control Code Character Control Code Character Control Code Character Control Code
NULL CTRL 2 BS CTRL H DLE CTRL P CAN CTRL X
SOH CTRL A HT CTRL I DC1 CTRL Q EM CTRL Y
STX CTRL B LF CTRL J DC2 CTRL R SUB CTRL Z
ETX CTRL C VT CTRL K DC3 CTRL S ESC CTRL [
EOT CTRL D FF CTRL L DC4 CTRL T FS CTRL \
ENQ CTRL E CR CTRL M NAK CTRL U GS CTRL ]
ACK CTRL F SO CTRL N SYN CTRL V RS CTRL 6
BEL CTRL G SI CTRL O ETB CTRL W US CTRL _

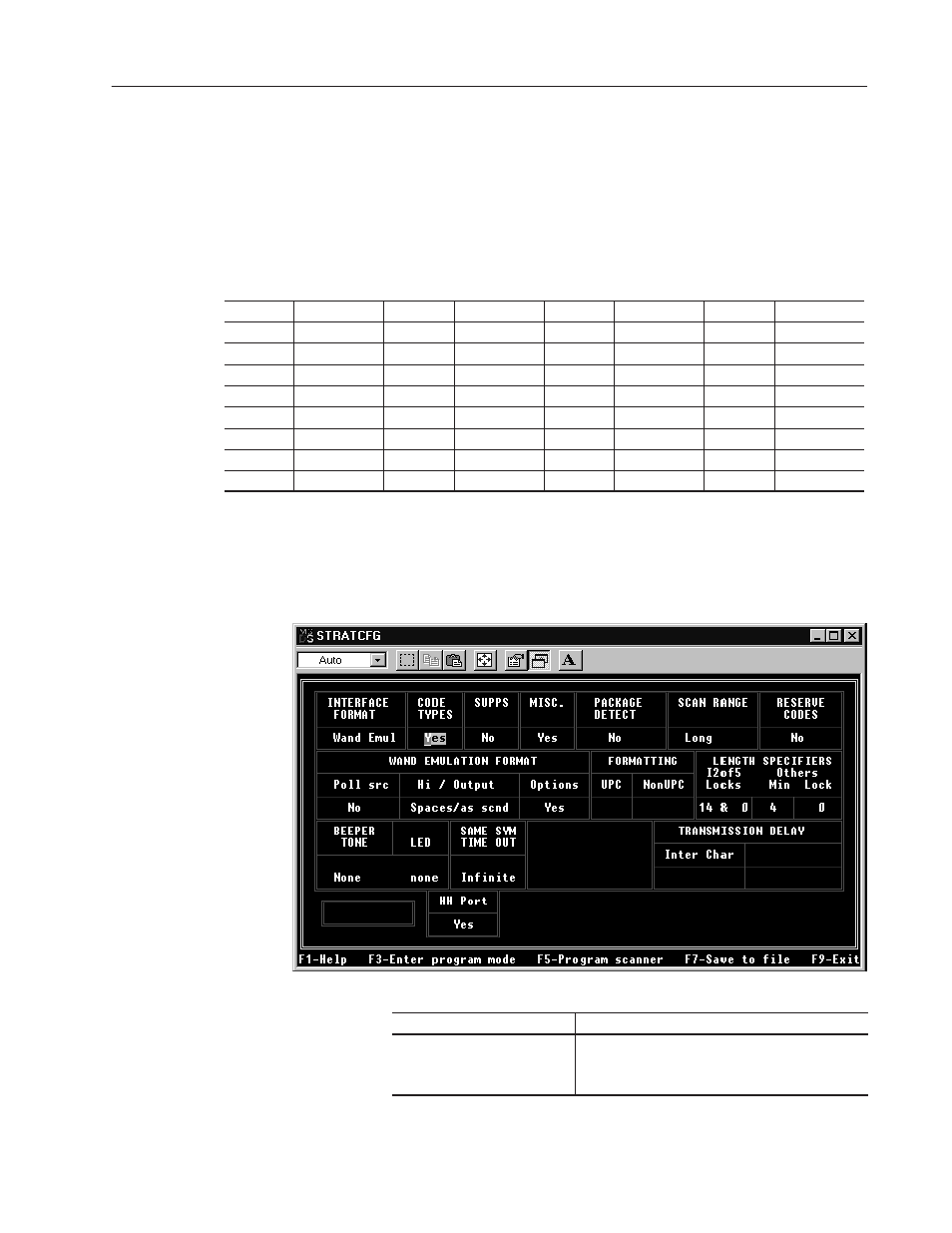

Wand Emulation Format
If Wand Emulation format is selected in the Interface Format menu
instead of RS232/422, then Poll Source, High Output and Options
boxes display as Wand Emulation specific options.
Wand Type Description
Poll Source
When poll source is enabled, the reader does not
scan unless a 5–volt signal is seen on the poll source
input.
