Power connections – Rockwell Automation 2706-P22R InView Panel Mount Message Display Installation Instructions User Manual
Page 7

InView Panel Mount Message Display 7
Publication 2706-IN014B-MU-P

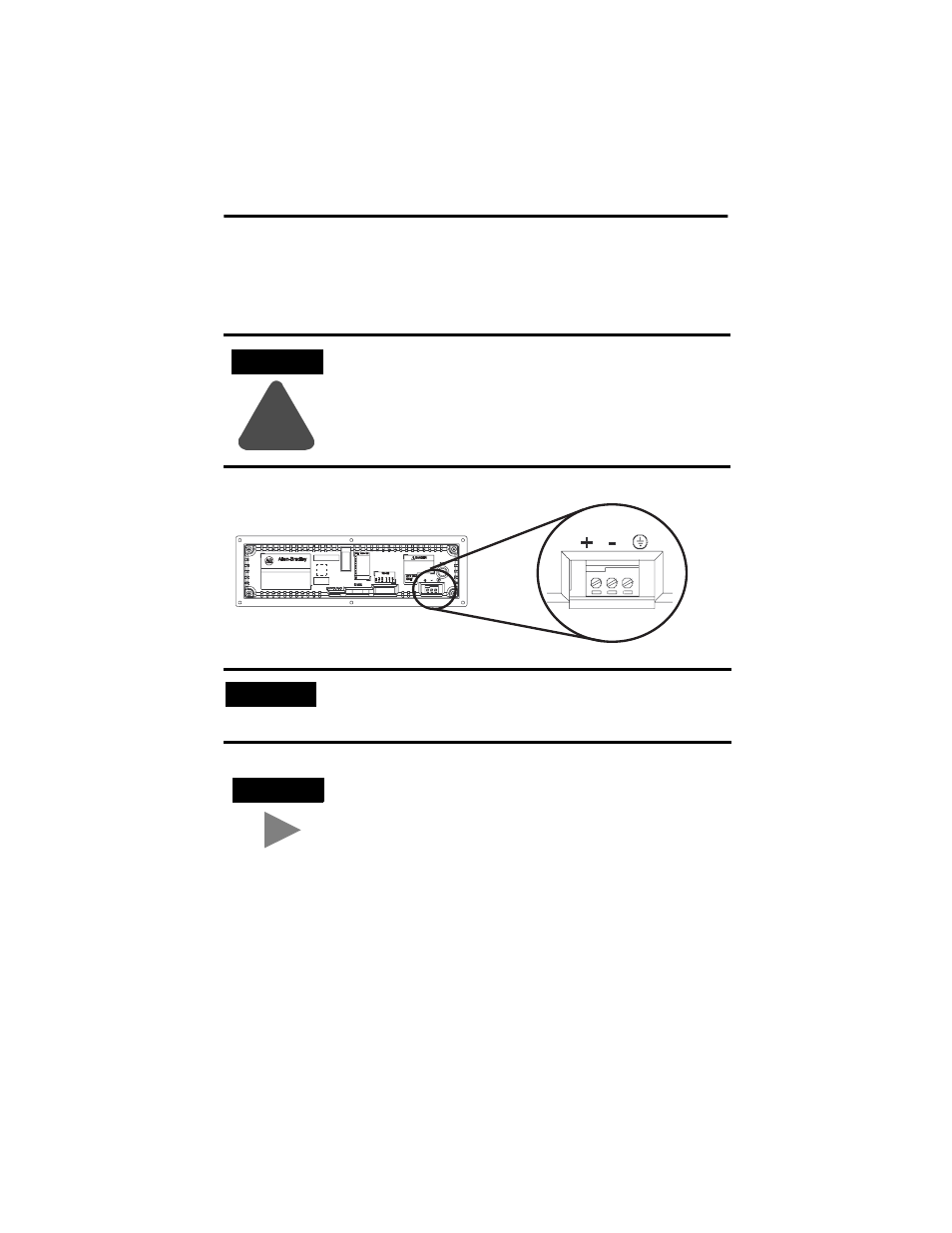

Power Connections
The InView display requires 18 to 30V dc, 0.5A at 18V dc.
ATTENTION
!
Before making power connections, make sure that the power
is turned off. Improper wiring of the power connections may
result in personal injury or damage to the InView Display.
Make sure the area around the panel cutout is clear. Make sure
metal cuttings or debris did not enter any components that
may have been installed in the panel.
IMPORTANT
To satisfy all agency requirements and ensure proper
operation, power this product using a 24V dc, class 2 SELV
power supply.
TIP
Use a small screwdriver to remove the terminal block’s header
to ease product wiring.
