Integrated Display Computers 15
Publication 6181P-IN001I-EN-P - July 2008
Connect DC Power
The 1200P computers with an integrated 24V DC power supply support these
electrical ratings:
•
18 to 32V DC (24V DC nominal)
•
6.3 A at 24V DC
The power supply is internally protected against reverse polarity.
1. Secure the DC power wires to the terminal block screws.
2. Secure the ground wire to the GND terminal screw.
3. Apply 24V DC power to the terminal.
ATTENTION
Use a Class 2/SELV (Safety Extra-Low Voltage) isolated and ungrounded power supply as
input power to the workstation. This power source provides protection so that under
normal and single fault conditions, the voltage between the conductors and Functional
Earth/Protective Earth does not exceed a safe value.
ATTENTION Connect the product to earth ground using a 1.31 mm 2 (16 AWG) or larger external wire.
The ground wire should have green insulation with a yellow stripe for easy identification.

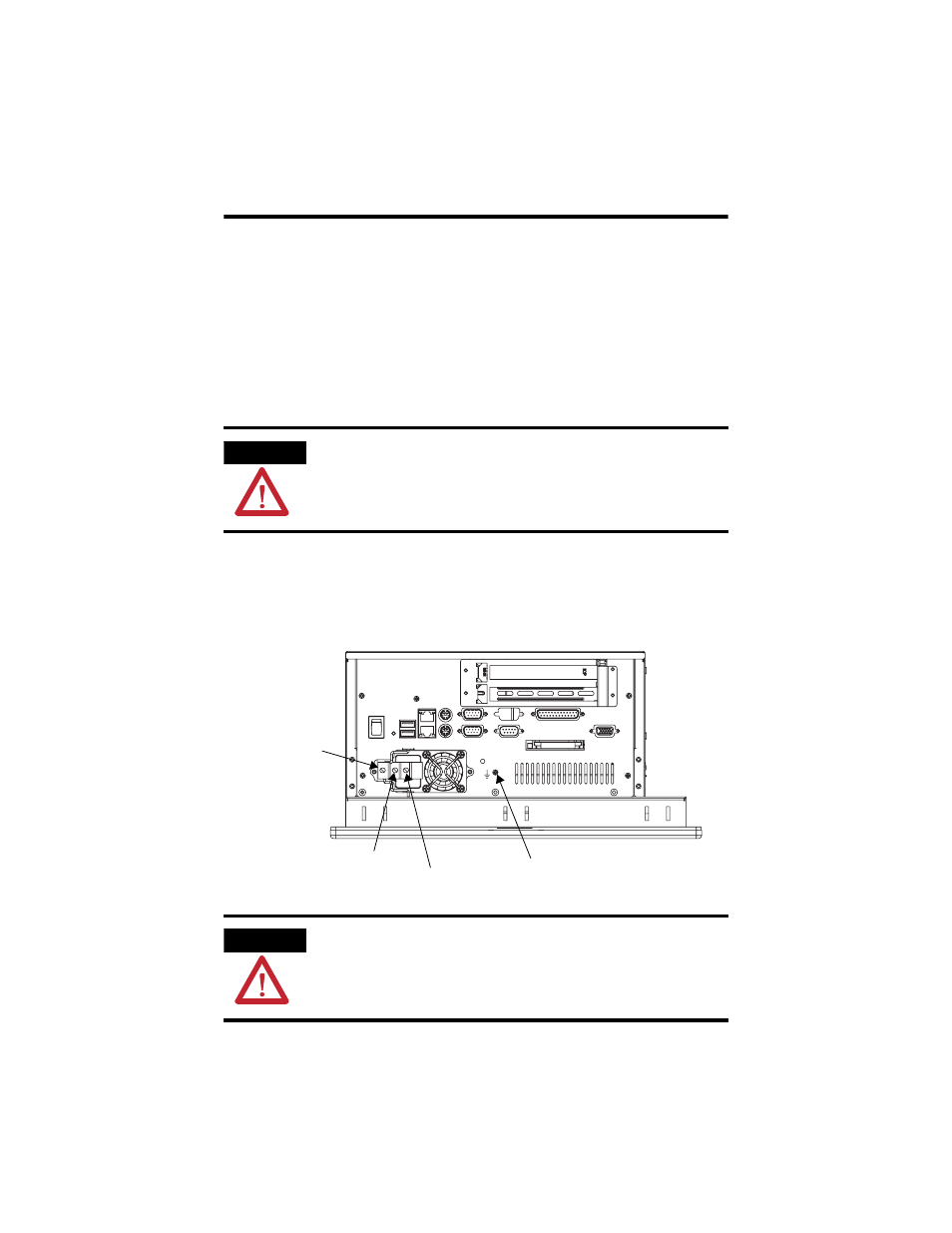

V- (DC Negative)
V+ (DC Positive)
GND (Safety Ground Alternate Connection)
V - V+
GND
(Safety Ground)
