Adapter Kit for PanelView 1200/1200e/1400e Keypad Terminal Cutout 5

Publication 2711P-IN015C-EN-P - March 2007

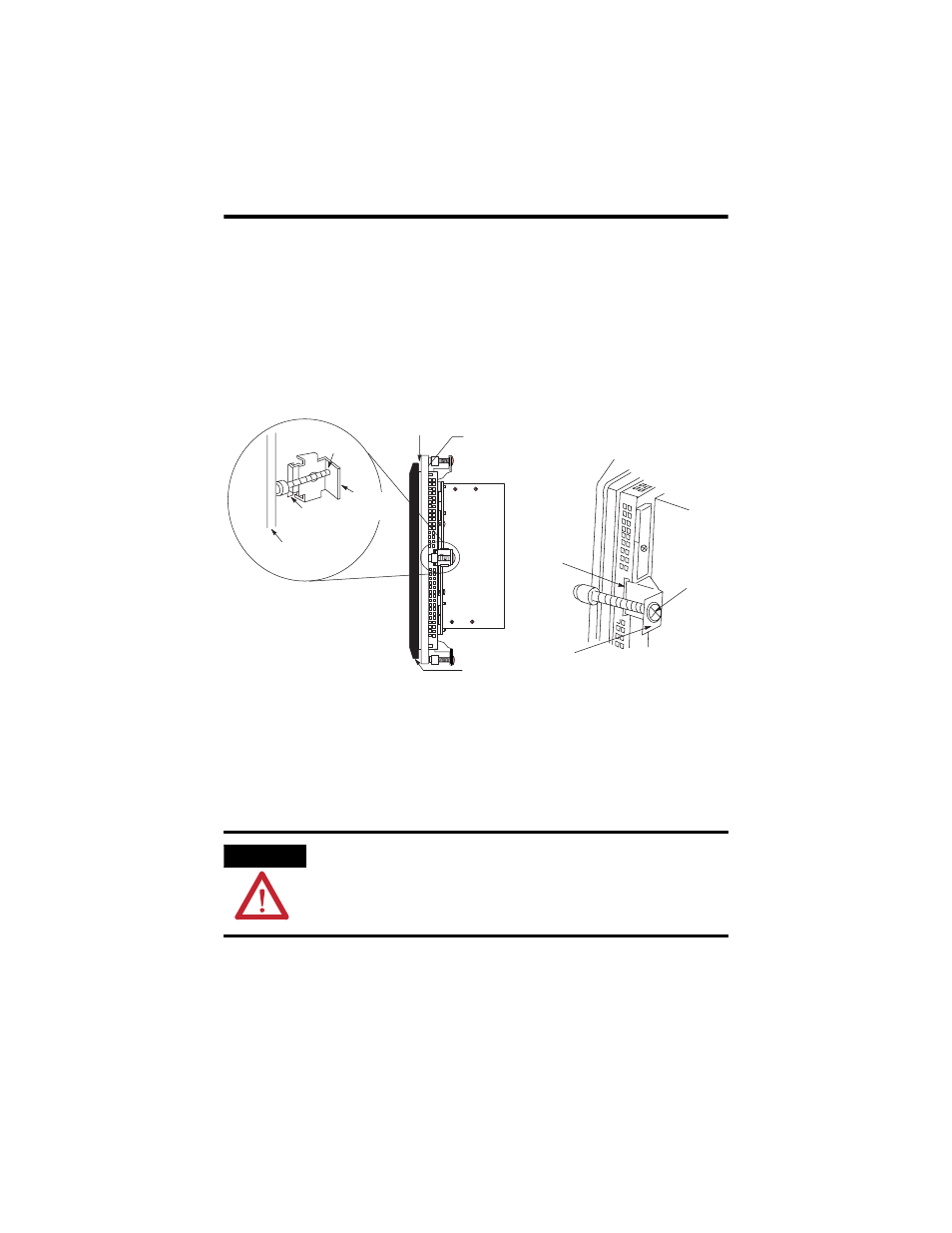

Mount the New Terminal in the Cutout Adapter Plate

1. Insert the new terminal into the adapter plate cutout until the terminal

gasket is flush with the front of the adapter plate.

2. Install the mounting clips according to the installation instructions provided

with the new terminal.

The ends of the clips slide into the slots on the terminal.

3. Tighten the screws on the mounting clips by hand until the gasket seal

contacts the mounting surface uniformly.

4. Using the torque wrench, tighten the screws on the mounting clips to the

specified torque rating provided in the installation instructions of the new
terminal.

Do not overtighten.

The new terminal is now ready for operation.

ATTENTION

Tighten the mounting clips to the specified torque to provide a proper seal and
to prevent potential damage to the product. Allen-Bradley assumes no
responsibility for water or chemical damage to the product or other equipment
within the enclosure because of improper installation.

Mounting Slot

Adapter Plate

Screw Driver Slot

Mounting

Stud

Mounting

Clip

Mounting

Clip

Screw-
driver
Slot
