Industrial Standard Monitors 9
Rockwell Automation Publication 6176M-IN001E-EN-P - August 2012

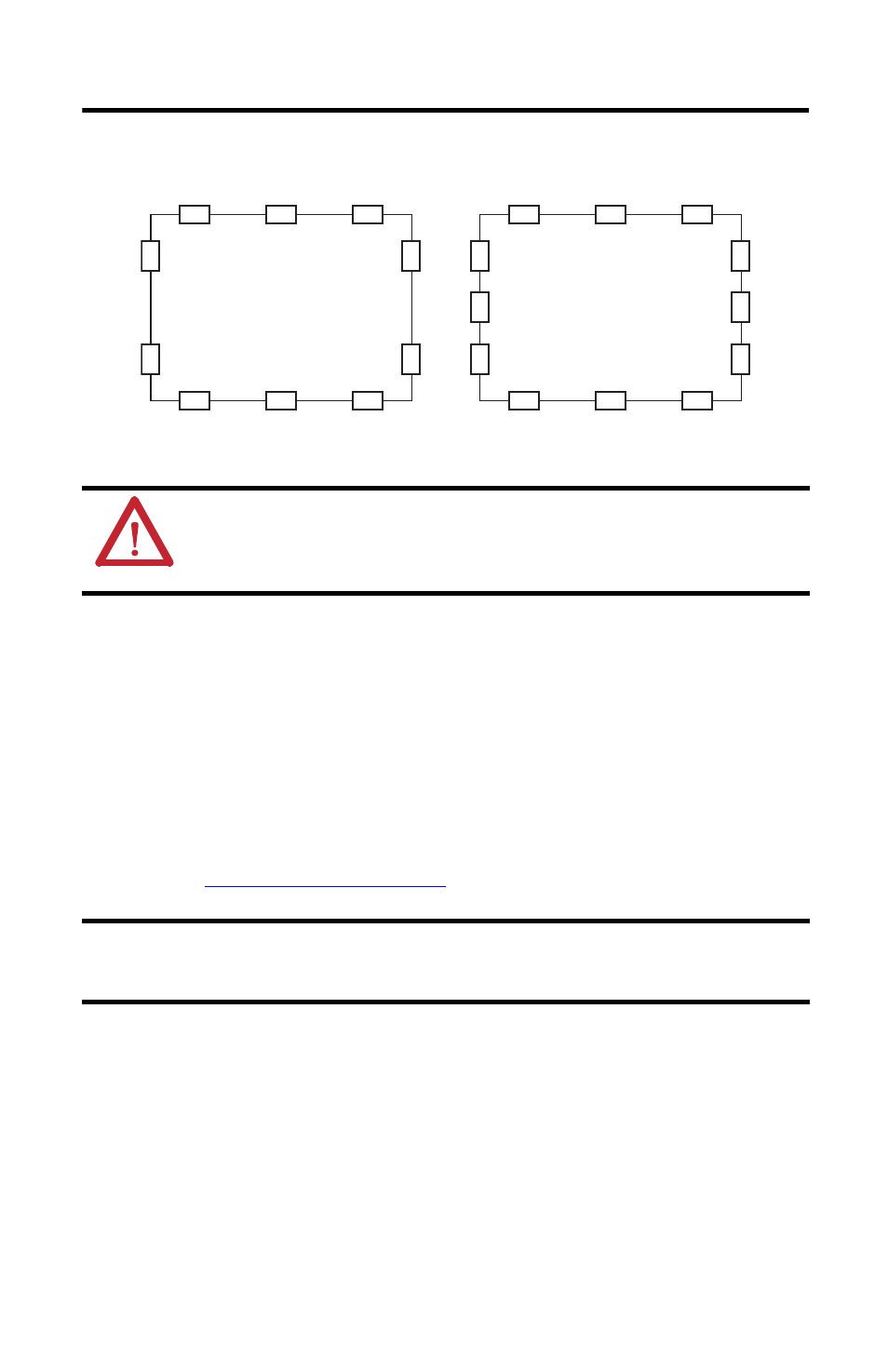

Tightening and Torque Sequence
7. Tighten the mounting clips to a torque of 1.1 Nm (10 lb-in.) by following the torque
sequence, making sure to not overtighten.
8. Repeat the torque sequence at least three times until all mounting clips are torqued to
1.1 N•m (10 lb•in) and the sealing gasket is compressed uniformly against the panel.
Rack Mounting
The 1950M monitor is installed directly into a standard 19-inch rack.
Mounting Clearances
Make sure there is adequate space behind the rack panel. Allow minimum clearances for cables
and airflow. See
Mounting Clearances on page 7 .
ATTENTION: Tighten the mounting clips to the specified torque to provide a proper seal and
prevent damage to the monitor. Rockwell Automation assumes no responsibility for water or
chemical damage to the monitor or other equipment within the enclosure because of improper
installation.
IMPORTANT Do not operate the monitor in an enclosure using minimum clearances unless adequate
ventilation or other cooling methods are used to maintain the monitor temperature at its
specified rating.
1550M and 1750M Monitors
9
4
3
10
7 1 5
6 2 8
1950M Monitors
9
11
12
10
7 1 5
6 2 8
4 3
