Rockwell Automation 6176M-xxxx Standard Industrial Monitors Installation Instructions User Manual
Page 8
8 Industrial Standard Monitors
Rockwell Automation Publication 6176M-IN001E-EN-P - August 2012
Panel Cutout Dimensions
Mount the Monitor in a Panel
Follow these steps to mount the monitor in a panel.
1. Cut the panel opening using the appropriate cutout dimensions.
2. Attach cables to the monitor before installing if rear access to the monitor will be limited
after installation.
Monitor Connections on page 15
for where to attach cables.
3. Verify that the sealing gasket is properly positioned on the monitor.
This gasket forms a compression-type seal. Do not use sealing compounds.
4. Place the monitor in the panel cutout.
5. Slide the mounting clips into the slots on the top, bottom, and sides of the monitor.
6. Hand-tighten the clips in the specified sequence until the gasket is compressed uniformly
against the panel.
Monitor Model
Cutout Dimensions (HxW), approx
1550M
285.6 x 386.6 mm (11.24 x 15.22 in.)
1750M
329.5 x 424.0 mm (12.97 x 16.69 in.)
1950M
363.5 x 449.6 mm (14.31 x 17.70 in.)

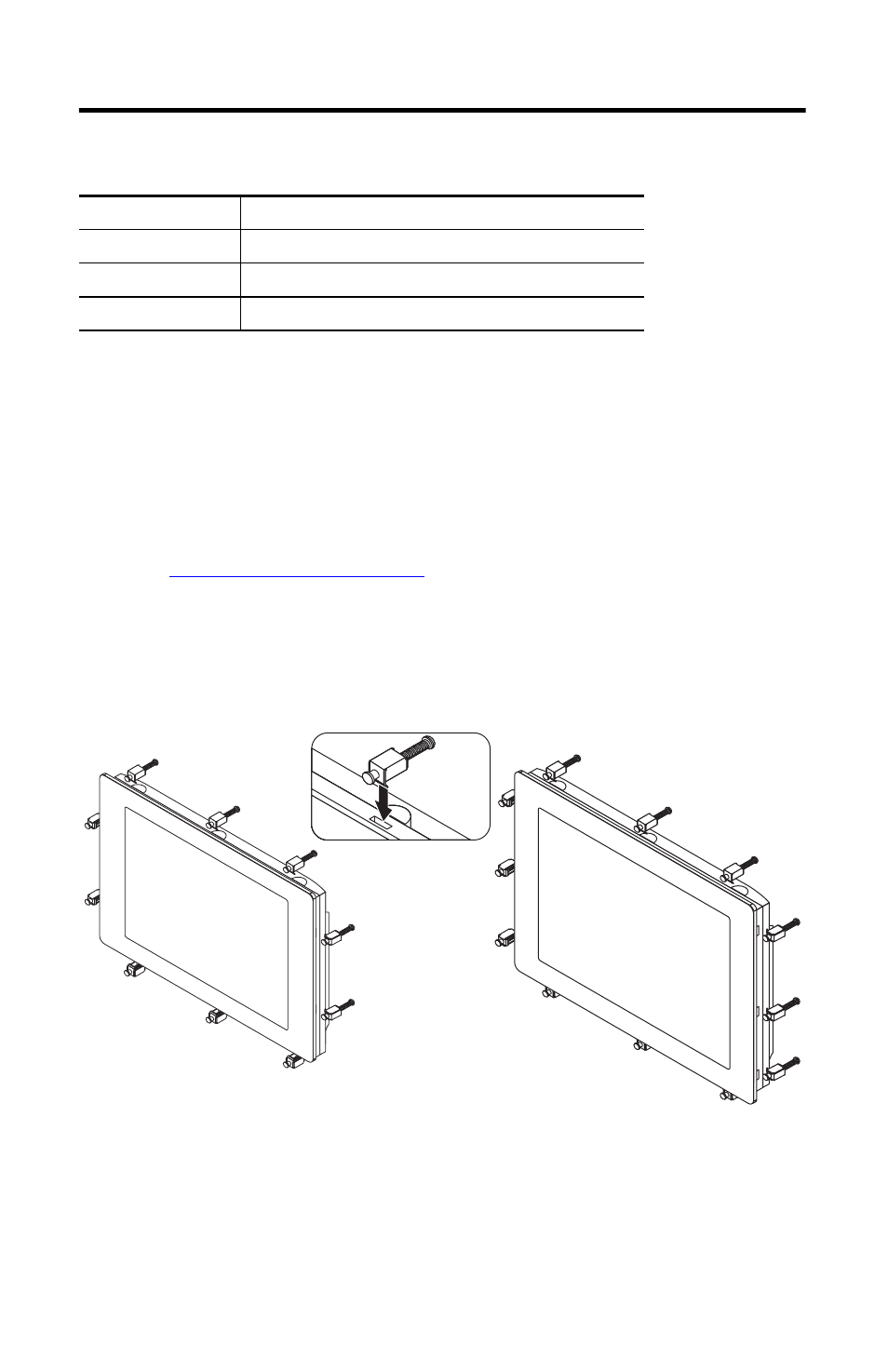

Mounting Clips for 1550M and 1750M
Mounting Clips for 1950M
