Industrial Standard Monitors 19
Rockwell Automation Publication 6176M-IN001E-EN-P - August 2012
Connect the Power
With the AC power adapter, the monitor can use a single-phase AC power supply, providing
90…264V AC at 47…63 Hz. Use only the AC adapter supplied with the monitor.
Power must be available at a grounded outlet nearby. Whenever possible, connect the monitor to
the same AC power source that supplies the computer.

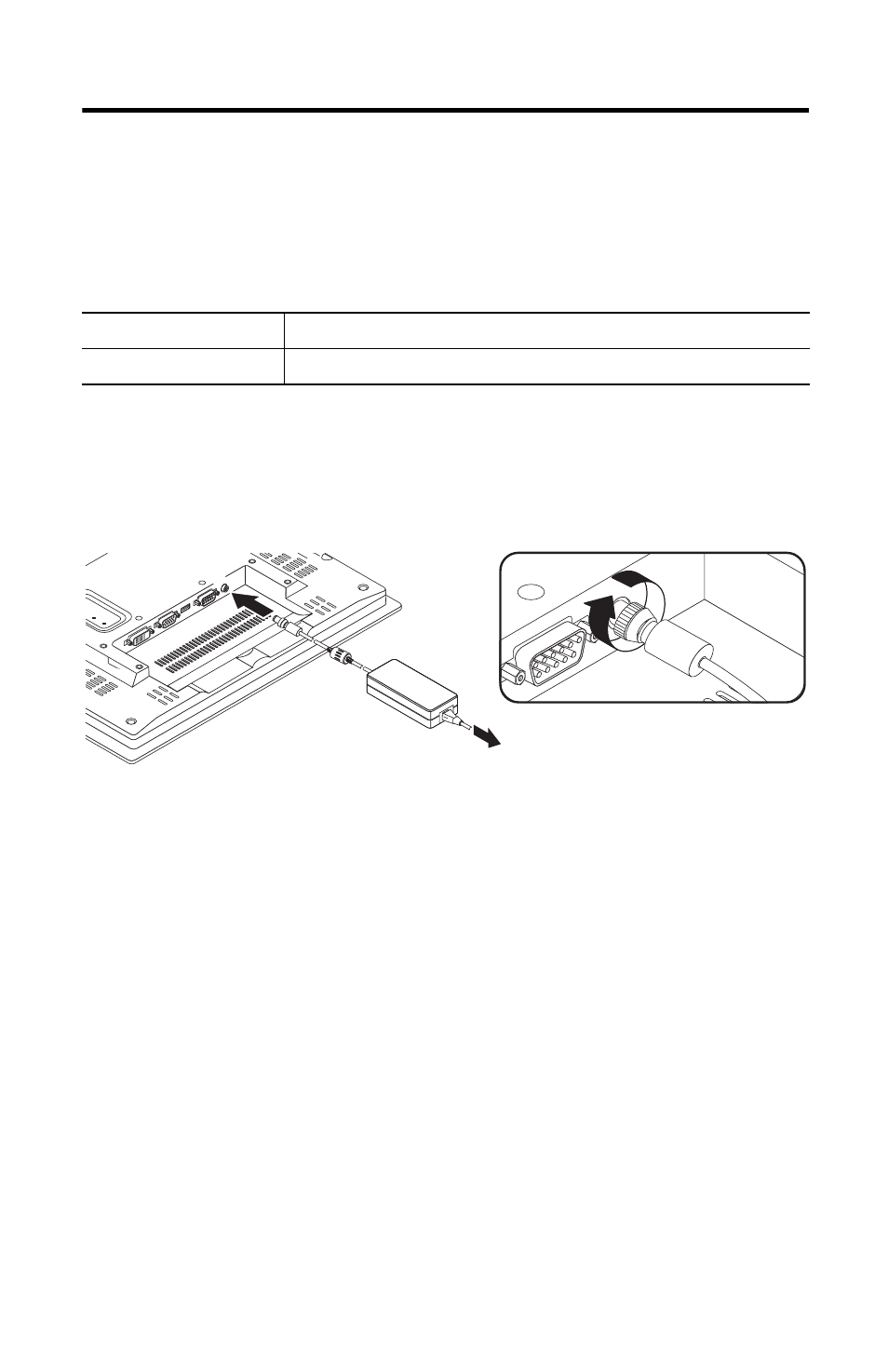

Follow these steps to connect power to the monitor.
1. Connect the supplied AC power adapter cable to the power input connector on the
monitor (
1).
2. Secure this connection by screwing the barrel over the threads (2).
3. Connect the AC power cord to the main power supply (3).
Use the Functional Ground Screw
Using the functional ground screw is not required for safety and regulatory compliance.
However, you can use the functional ground screw on the rear panel of the computer if a
supplemental ground is desired.
Cat. No. Description
6189V-MPS3 Replacement AC power adapter
