Rockwell Automation 2500 CENTERLINE MCC Joining and Splicing Columns User Manual
Page 13
Publication 2500-IN004A-EN-P - August 2009
CENTERLINE 2500 Motor Control Centers Installing, Joining and Splicing Columns 13
9. For Double-front Configured, remove the bottom horizontal
wireway end closing plates and fasten the MCC to the
foundation using the mounting hole arrangement illustrated.

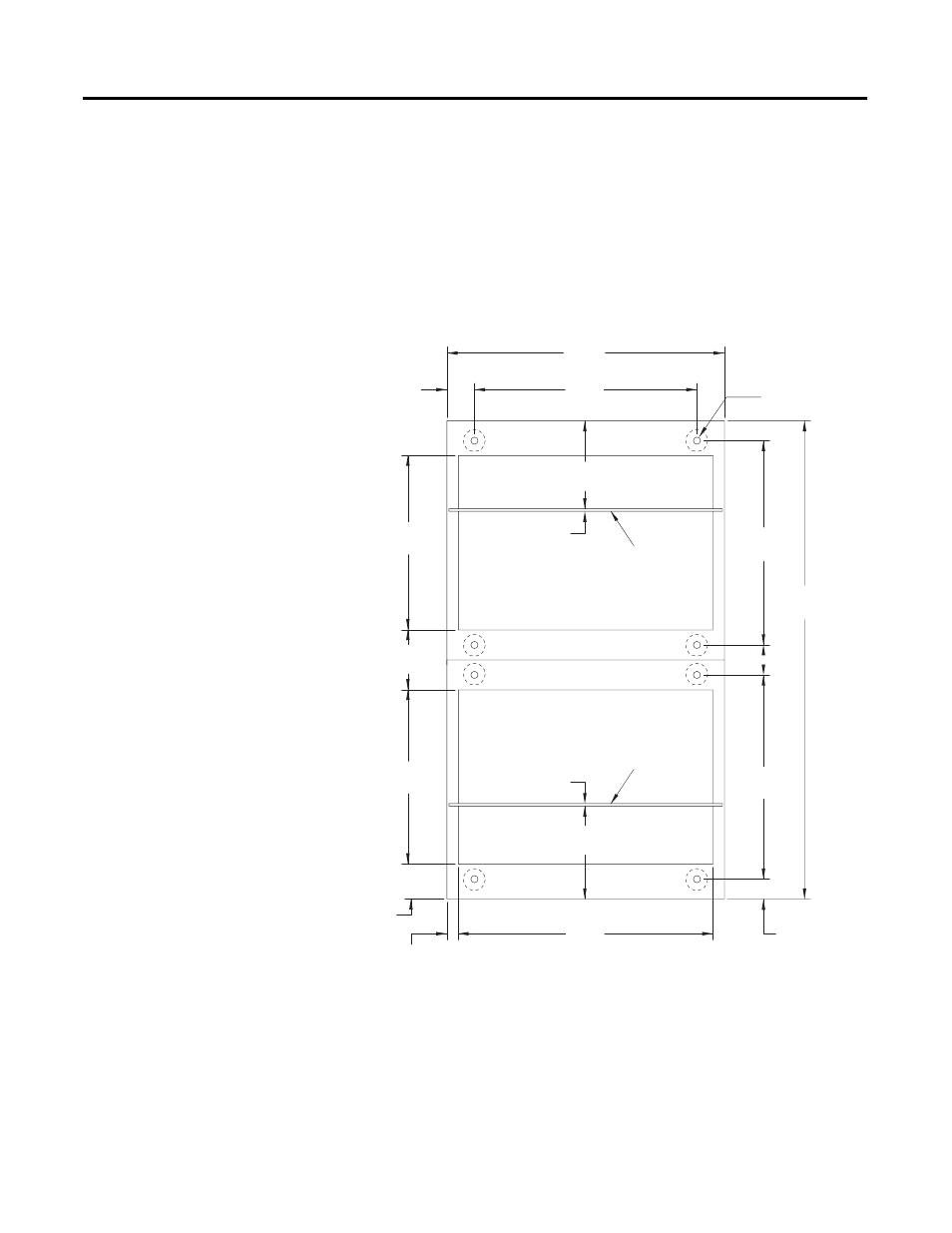

Double-front Mounting Arrangement
700,0
(27.56)
561,0
(22.09)
69,0
(2.72)
18,0
(0.71)
1196,0 - 1596,0
(47.08 - 62.83)
513,0 - 713,0
(20.20 - 28.07)
438,0 - 638,0
(17.24 - 25.12)
234,0
(9.21)
6,0
(0.24)
642,0
(25.28)
29,0
(1.14)
82,0
(3.23)
44,0
(1.73)
513,0 - 713,0
(20.20 - 28.07)
438,0 - 638,0
(17.24 - 25.12)
156,0
(6.14)
234,0
(9.21)
6,0
(0.24)
82,0
(3.23)
Dimensions are in mm and (in.)
Diagram illustrates 600,0 (23.62 in.) column depth.
Protective Earth
Conductor
Front
Protective Earth
Conductor
(8) Mounting
Holes
