6 Micro800 4-channel and 8-channel Analog Voltage/current Input and Output Modules
Publication 2085-IN006A-EN-P - September 2012
Mount the Module
For more information on proper grounding guidelines, see the Industrial Automation Wiring
and Grounding Guidelines, publication
1770-4.1 .

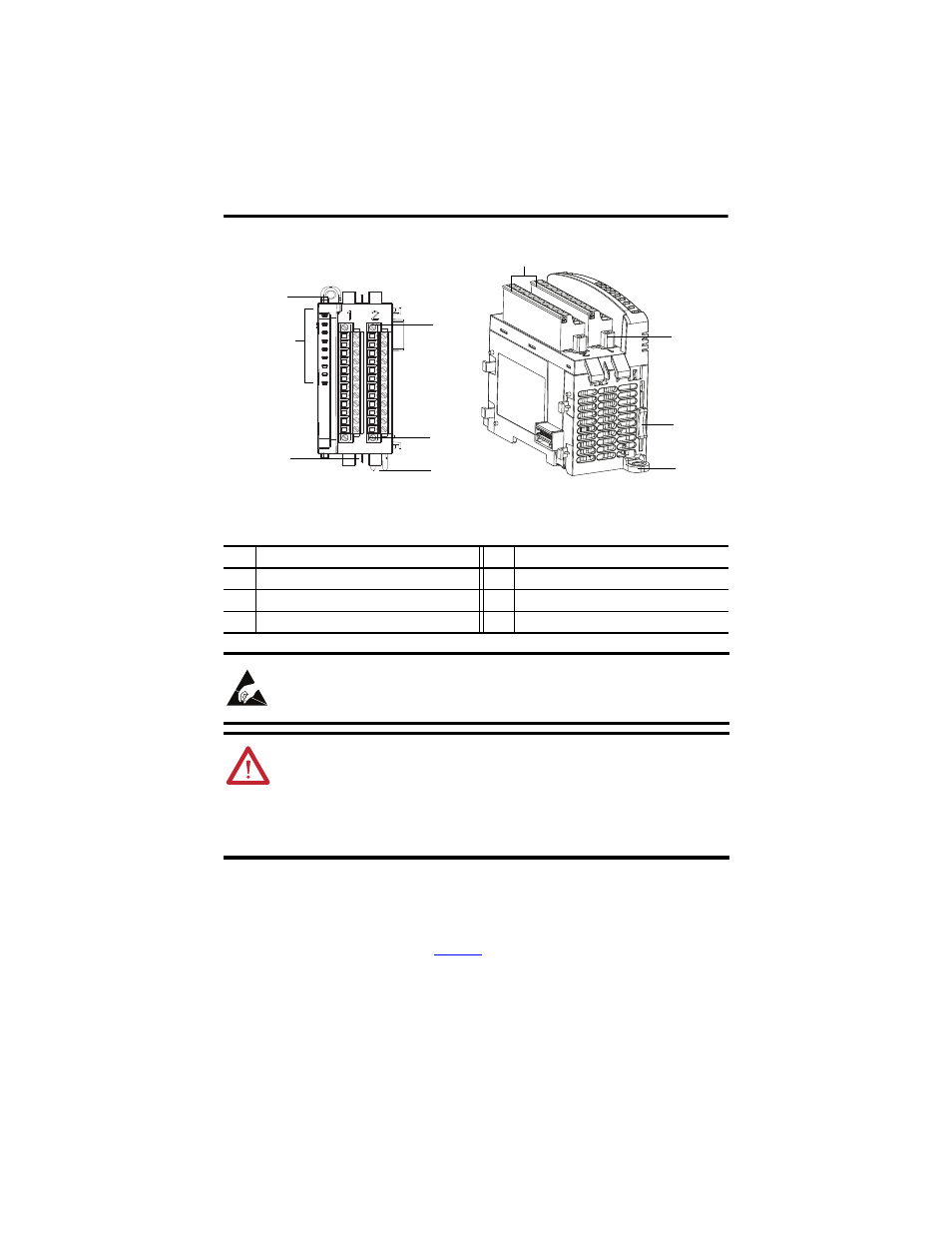

Module Description
Description Description
1 Mounting screw hole / mounting foot 4 Module interconnect latch
2 Removable Terminal Block (RTB) 5 DIN rail mounting latch
3 RTB hold down screws 6 I/O status LED
This equipment is sensitive to electrostatic discharge (ESD).
Follow ESD prevention guidelines when handling this equipment.
ATTENTION: To comply with UL restrictions, this equipment must be powered from a source
compliant with the following:
Class 2 or Limited Voltage/Current.
ATTENTION: To comply with the CE Low Voltage Directive (LVD), all connected I/O must be
powered from a source compliant with the following:
Safety Extra Low Voltage (SELV) or Protected Extra Low Voltage (PELV).
45319 45318
1
1
6
Front view Right top view
1
2085-IF8
2
5
4
3
3
3
