Rockwell Automation 6180 6180 Industrial Power Supplies Installation Instructions User Manual
Page 3
Power Supplies
3
Publication 6180-5.8

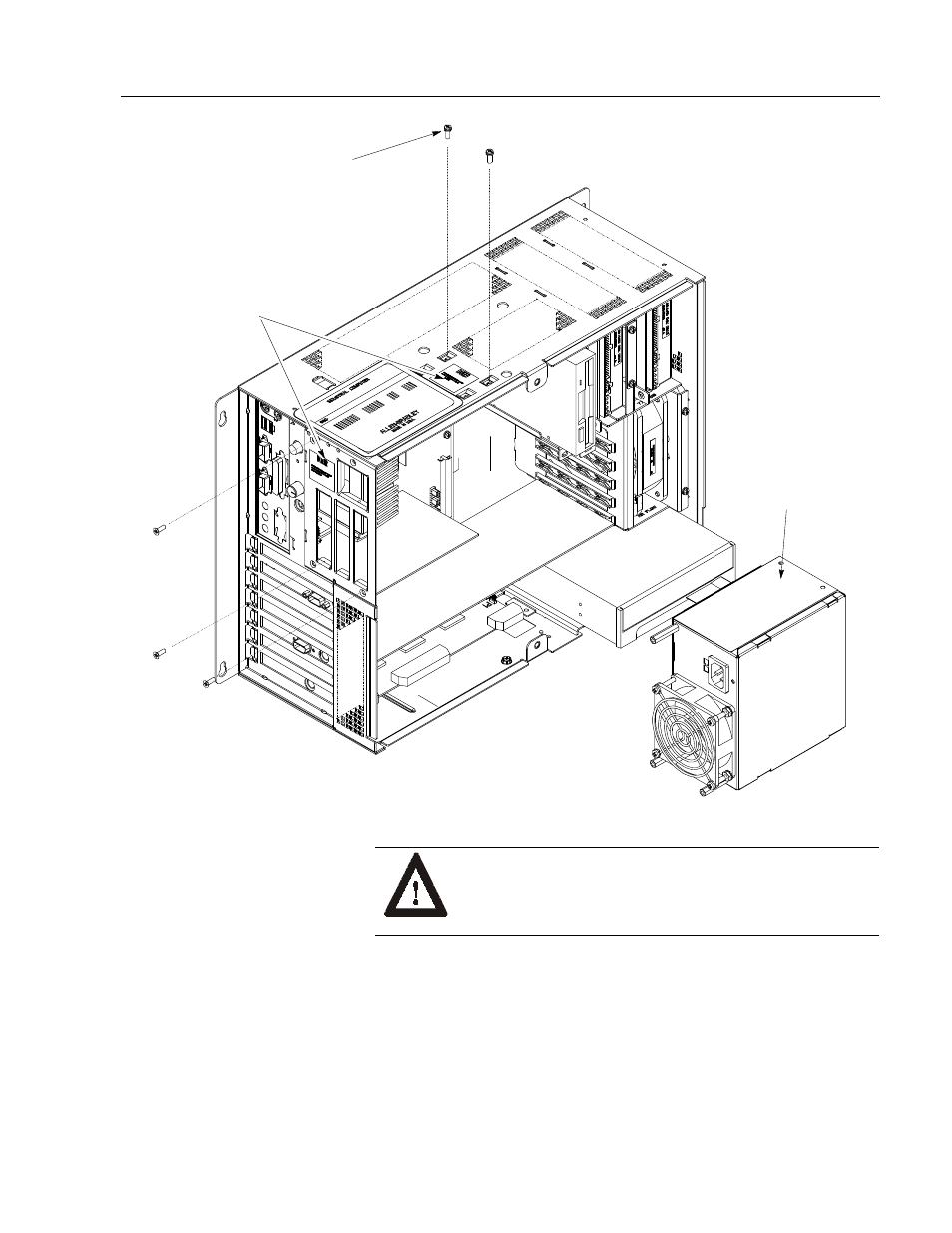

Power Supply
Mounting Screws (5)
Danger Labels - Screw Size
(see Attention Next Page)
Pentium II System
Power Supply
To install the power supply:
ATTENTION: Risk of Electrical Shock. Do not use
screws exceeding 0.438 inches (11.125 mm). Screws that
are longer than recommended may come in contact with
voltage sources within the power supply.
1.
Position the power supply in the chassis and secure with the 5
mounting screws. Torque screws to 6–8 in–lbs (0.7 to 0.9 N•m).
