Remove a secureconnect unit from a section – Rockwell Automation 2100 CENTERLINE Low Voltage Motor Control Centers User Manual
Page 48

48
Rockwell Automation Publication 2100-IN012E-EN-P - February 2012
Chapter 4 Installing and Removing Plug-in Units
Remove a SecureConnect
Unit from a Section
Follow these steps to remove a SecureConnect™ unit from a section.
1.
Make sure the disconnect handle is in the OFF/O position.
2.
Slide the shaft port cover open.
3.
Insert the 1/4 in. hex tool into the shaft port.
4.
Rotate the wrench counter-clockwise to retract the power stabs.
The indicator next to the disconnect handle changes from red to green.
5.
Pull out the power stabs lockout lever.
You can attach a lock to the lever to prevent the lever from being pushed in
and the power stabs being extended.
6.
Remove the cover from the status port.

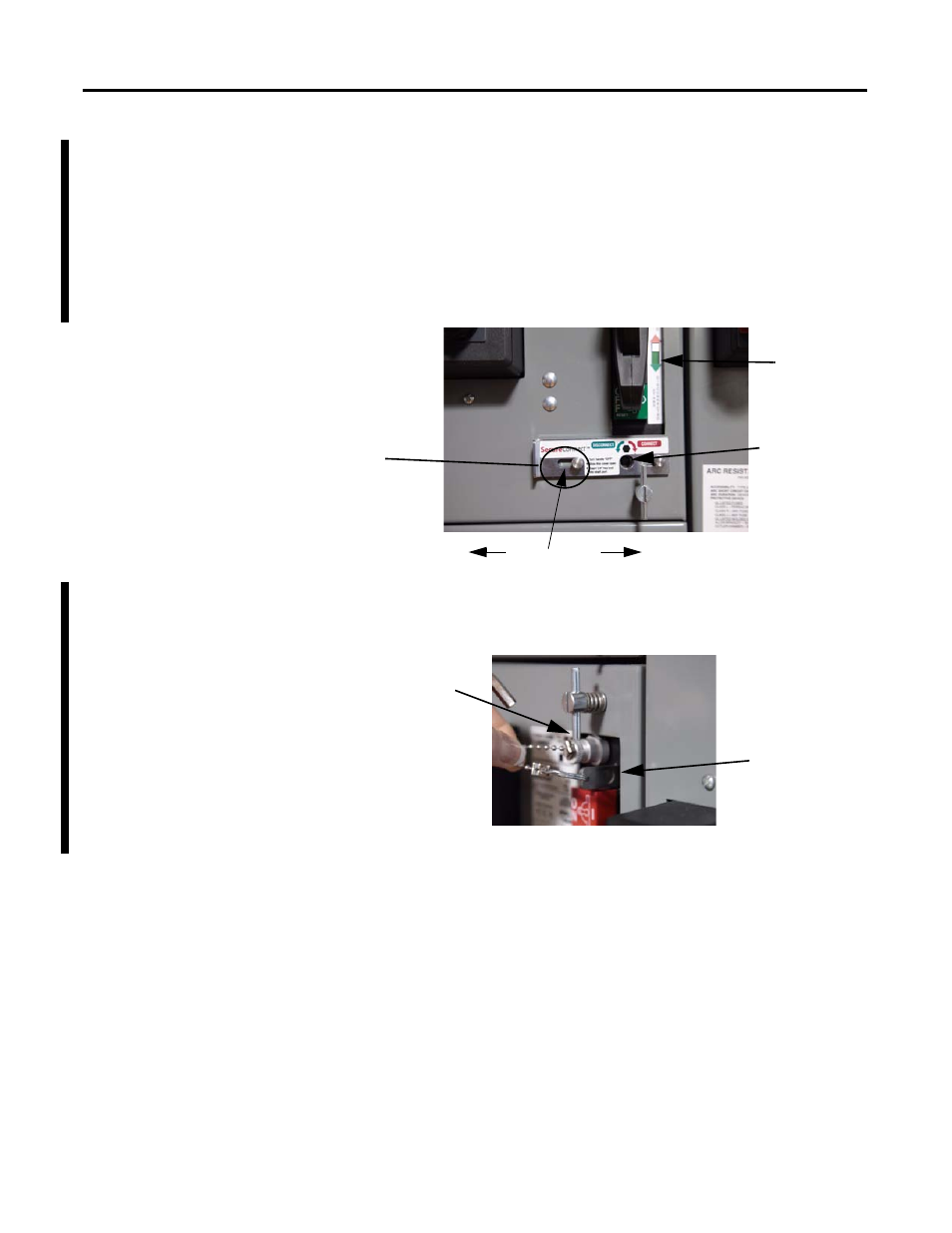

Shaft Port
Open
Closed
Shaft-port Cover
Indicator
Lockout Lever
Status Port
