Rockwell Automation 2100 CENTERLINE Low Voltage Motor Control Centers User Manual
Page 104
104
Rockwell Automation Publication 2100-IN012E-EN-P - February 2012
Chapter 12 Parts Illustrations

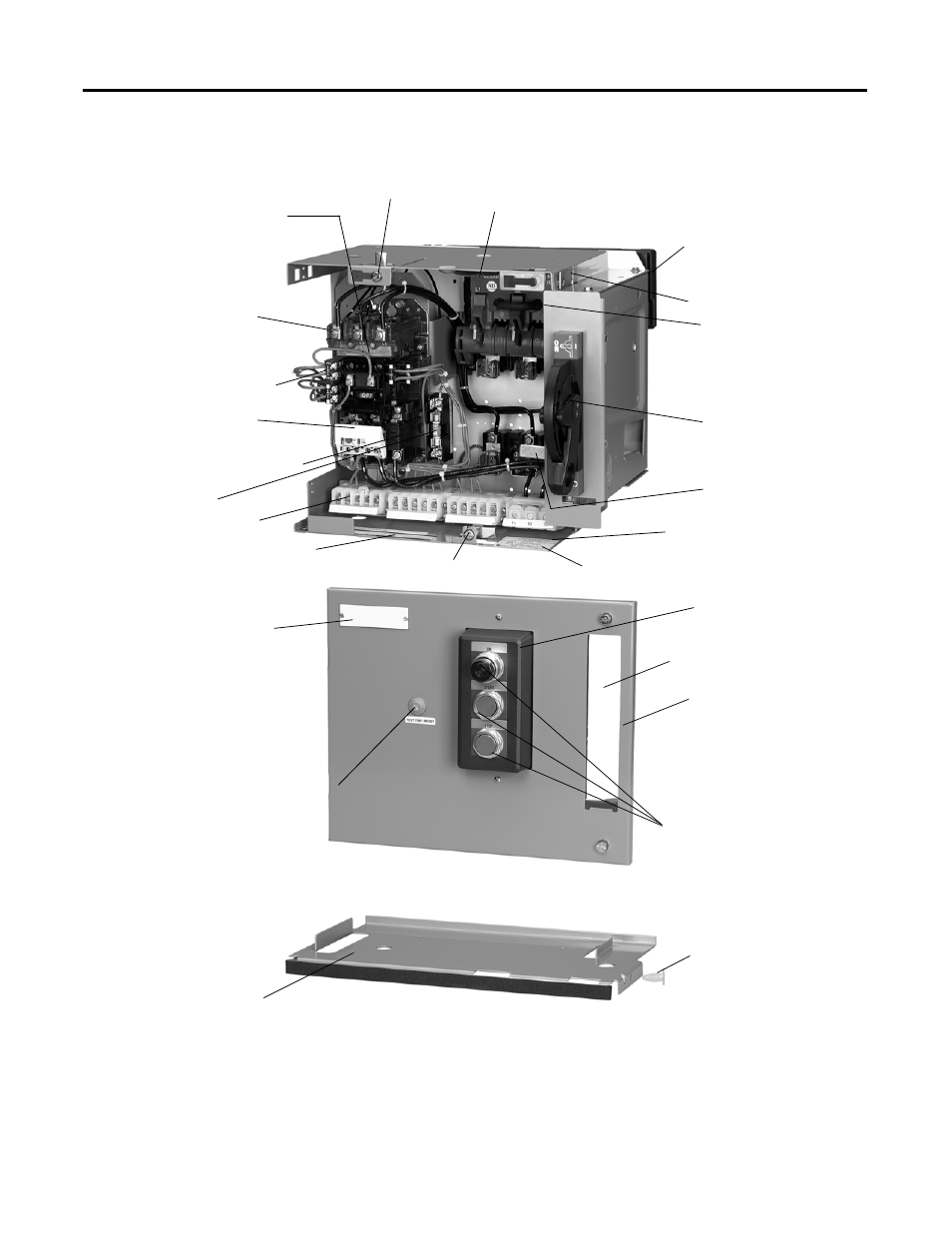

Typical Construction of a Unit with a Vertical Operating Handle
Unit Stab Assembly
Unit Handle Interlock
Circuit Breaker or Fusible
Disconnect (shown)
Disconnect Handle
Unit Identification Nameplate
Diagram Pocket
Captive Latch
Starter or Contactor
Control Circuit
Fuses and
Fuse Block
Auxiliary
Contacts
Control Transformer
Fusing and Fuse Block
Control Circuit
Transformer (not shown)
Power and Control
Terminal Blocks
Short Circuit Rating Label
UL Label
Captive Latch
Control Station
Pilot Devices
Reset Button
Unit Support Pan
Plastic Retaining Pin
Overload
Handle Cutout
Unit Door
Defeater Mechanism
Bulletin 2112, Size 1, FVNR
with Transformer Shown
Unit Nameplate
