Specifications, General specifications – Rockwell Automation 2085-IA8_IM8_OA8 Micro800 8-Point Input and 8-Point Output AC Modules User Manual
Page 9

Micro800 8-Point Input and 8-Point Output AC Modules 9
Publication 2085-IN005B-EN-P - September 2012

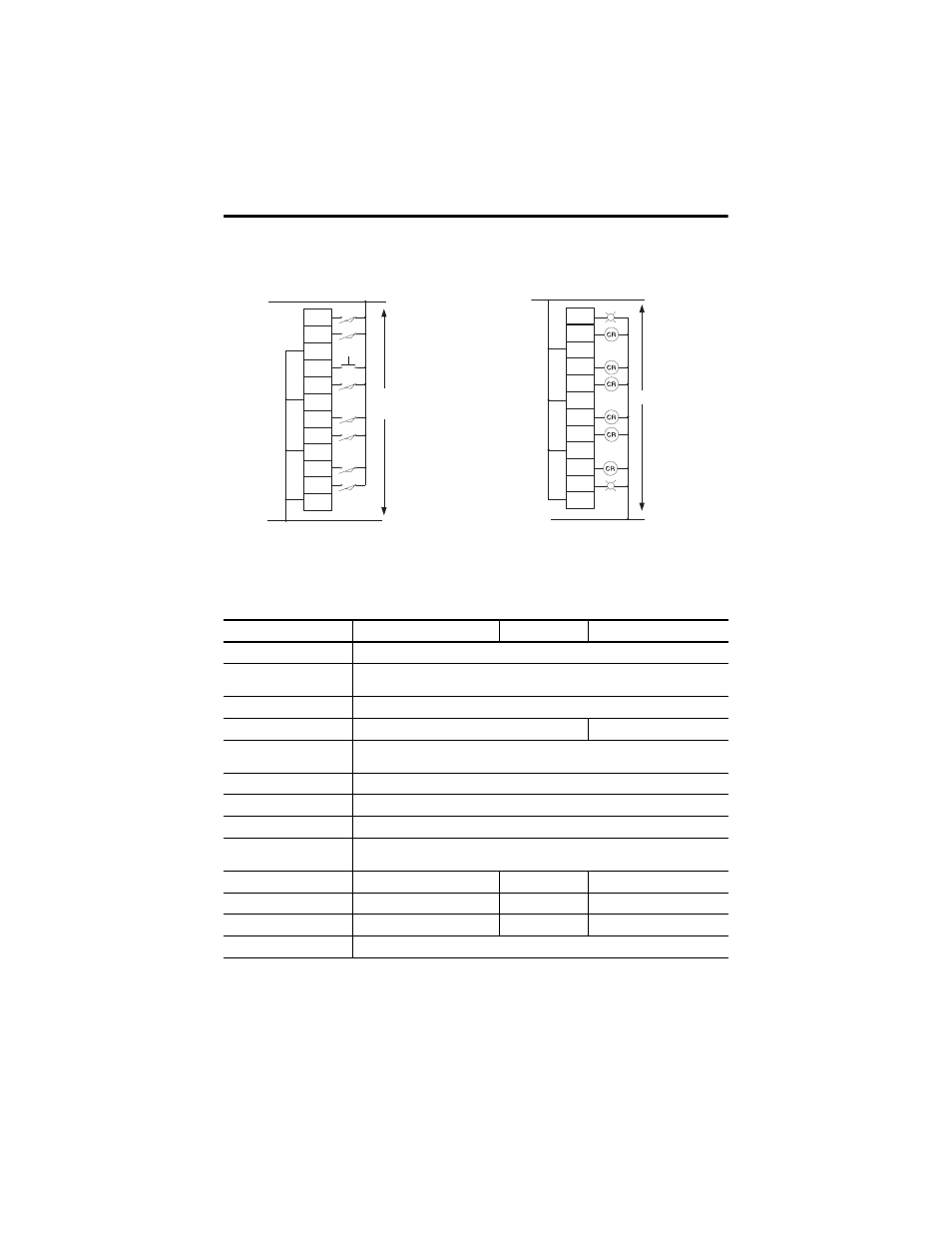

Basic Wiring to the 2085-IA8, 2085-IM8, 2085-OA8 Modules
Specifications
General Specifications
Attribute
2085-IA8
2085-IM8
2085-OA8
Number of I/O
8
Dimensions
HxWxD
28 x 90 x 87 mm
(1.10 x 3.54 x 3.42 in.)
Shipping weight, approx.
140 g (4.93 oz)
Bus current draw, max
5V DC, 150 mA
5V DC, 180 mA
Wire size
0.25... 2.5 mm
2
(22...14 AWG) solid or stranded copper wire rated at 75 °C (167 °F ), or
greater, 1.2 mm (3/64 in.) insulation max
Insulation stripping length
10 mm (0.39 in.)pdf
Wiring category
(1)
2 – on signal ports
Wire type
Copper
Terminal screw torque, max
0.5…0.6 Nm
(4.4…5.3 lb-in.)
(2)
Input/output circuit type
120V AC input
240V AC input
120V/240V AC output
Power supply
120V AC
240V AC
120V/240V AC
Power dissipation, total
2.36 W
2.34 W
5.19 W
Enclosure type rating
None (open-style)
L1
L2
I-00
I-01
COM
I-02
I-03
COM
I-04
I-05
COM
COM
I-06
I-07
120V AC (2085-IA8)
240V AC (2085-IM8)
45313
O-00
O-01
L1
O-02
O-03
L1
O-04
O-05
L1
L1
O-06
O-07
L1
L2
120V / 240V AC
45314
2085-IA8 or 2085-IM8
2085-OA8
