Publication 2706-UM017C-EN-P - March 2006
3-24 InView Communication Module Connections
EtherNet/IP Connections The EtherNet/IP InView communication module can communicate on
an EtherNet TCP/IP network with the following devices.
• PLC-5E or PLC-5 controllers with 1761-NET-ENI or 1785-ENET
module
• SLC-5/05 or SLC controllers with 1761-NET-ENI module
• ControlLogix controller with 1756-ENET/B or 1761-NET-ENI
module
• MicroLogix, CompactLogix, or FlexLogix with 1761-NET-ENI
module
• Another EtherNet/IP InView communication module
• Any device that can process CIP messages
EtherNet/IP Ports
The EtherNet/IP versions of the InView communication modules have
an Ethernet RJ45 communications port and an RS-232 serial port.
• Use the RJ45 port to communicate with a logic controller on an
EtherNet/IP network and transfer applications over an
EtherNet/IP network.
• Use the RS-232 serial port to transfer applications between a
computer and the InView communication module using a direct
connection.
For connection details, see Connect a Computer on page 3-26.
• Use the RS-232 port to connect an InView display to trigger
messages.

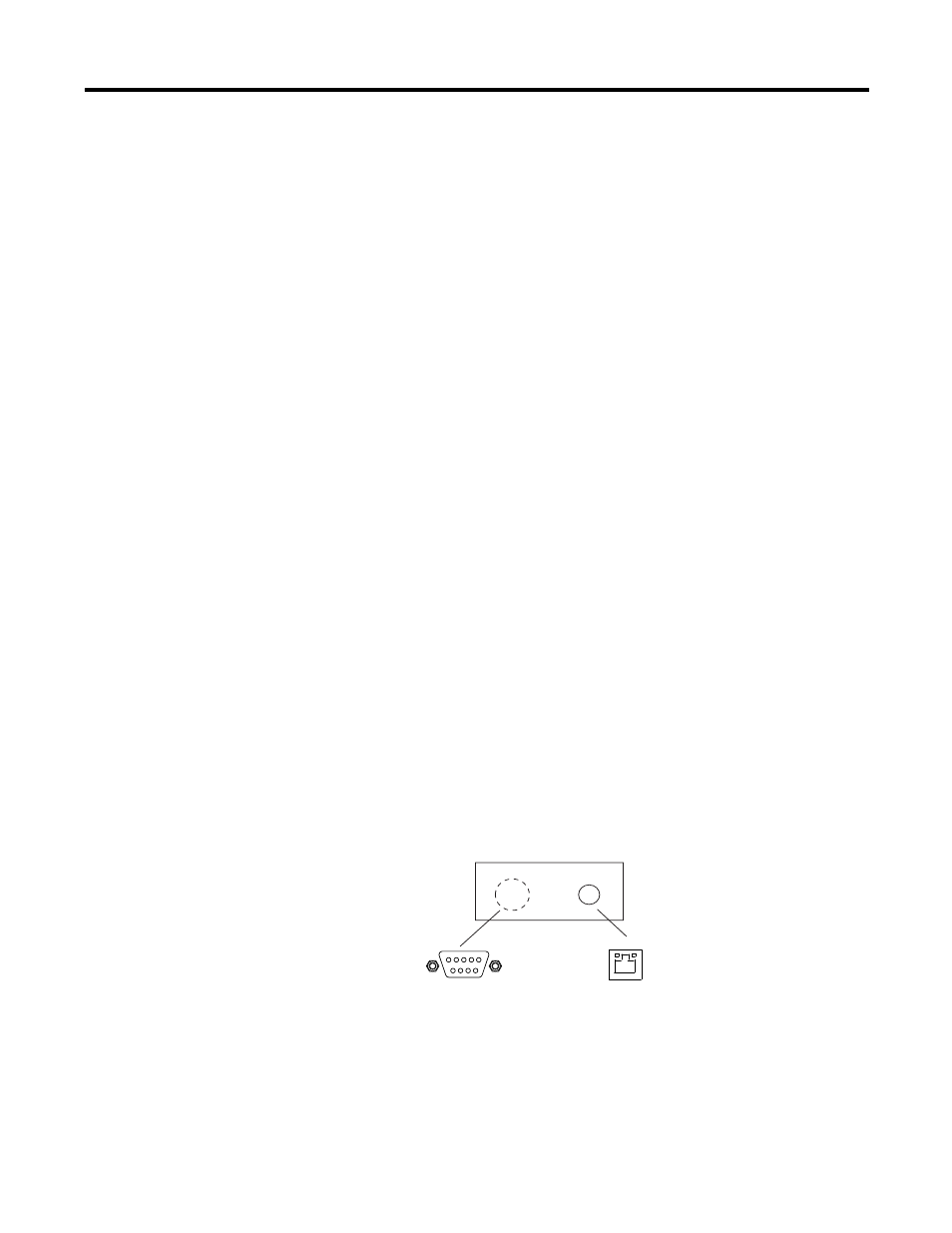

InView Communication Module EtherNet/IP Ports
Ethernet Connector
InView Ethernet Communication Module
RS-232 Port
