64

Publication 2711C-QS001F-EN-P - November 2010

Chapter 6 Create the Motor Status Screen

3.

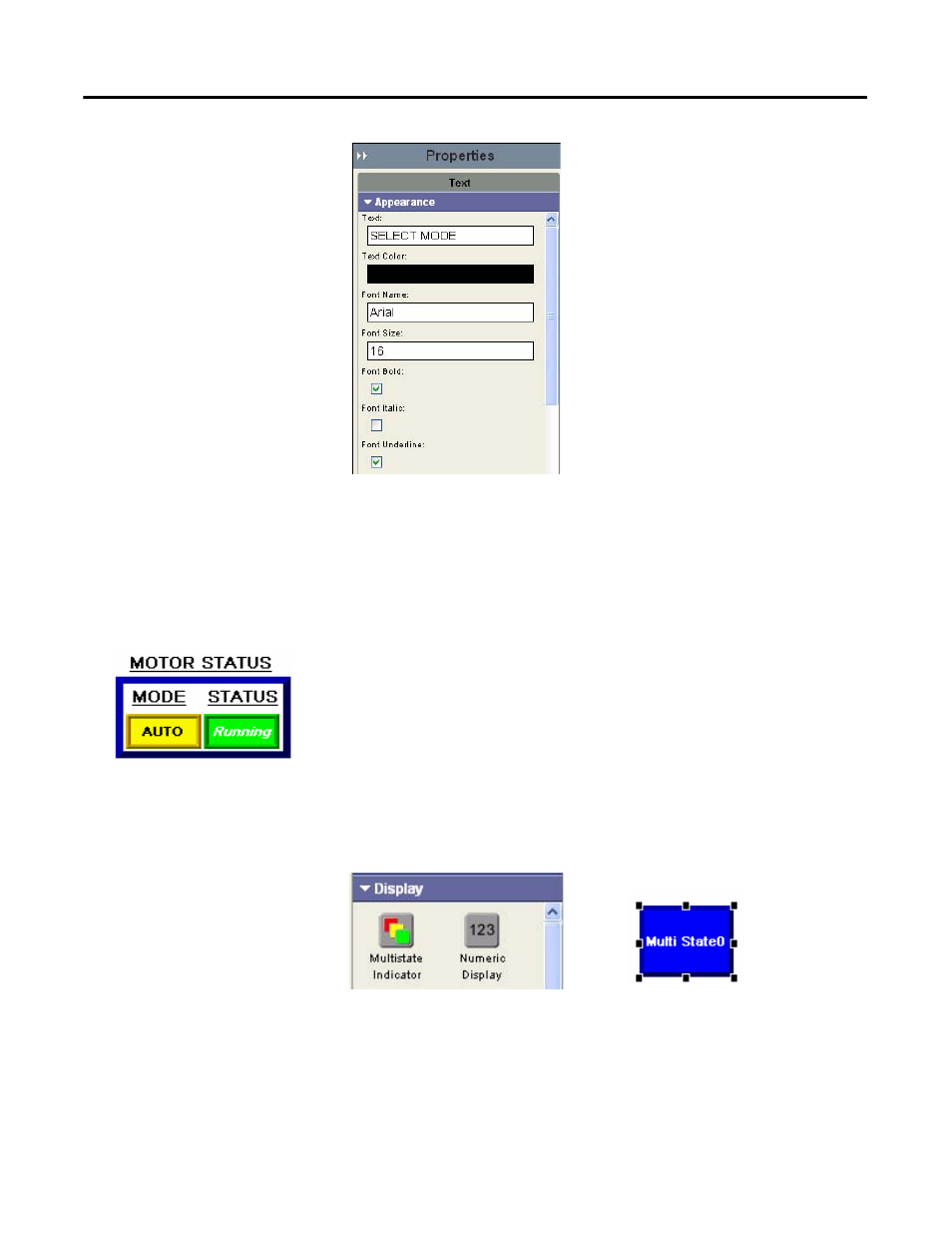

On the Appearance tab:
a. Type SELECT MODE in

the Text box.

b. Set the Font Size to 16.
c. Check the Font Underline

checkbox.

d. Set the Border Style to

None.

4.

Resize the object to fit the
text.

Create the Motor Status Indicators

The Motor Status box contains two multistate indicators. The Mode indicator shows whether the motor is in
Auto or Manual mode. The Status indicator shows whether the motor is running or stopped.

Create the Mode Indicator

1.

Open the Display tab of the
object palette.

2.

Drag the Multistate Indicator
object to the right of the
Motor Control list selector.
