Page 102: Mode

102
Publication 2711C-QS001F-EN-P - November 2010
Chapter 9 Validate and Run Application

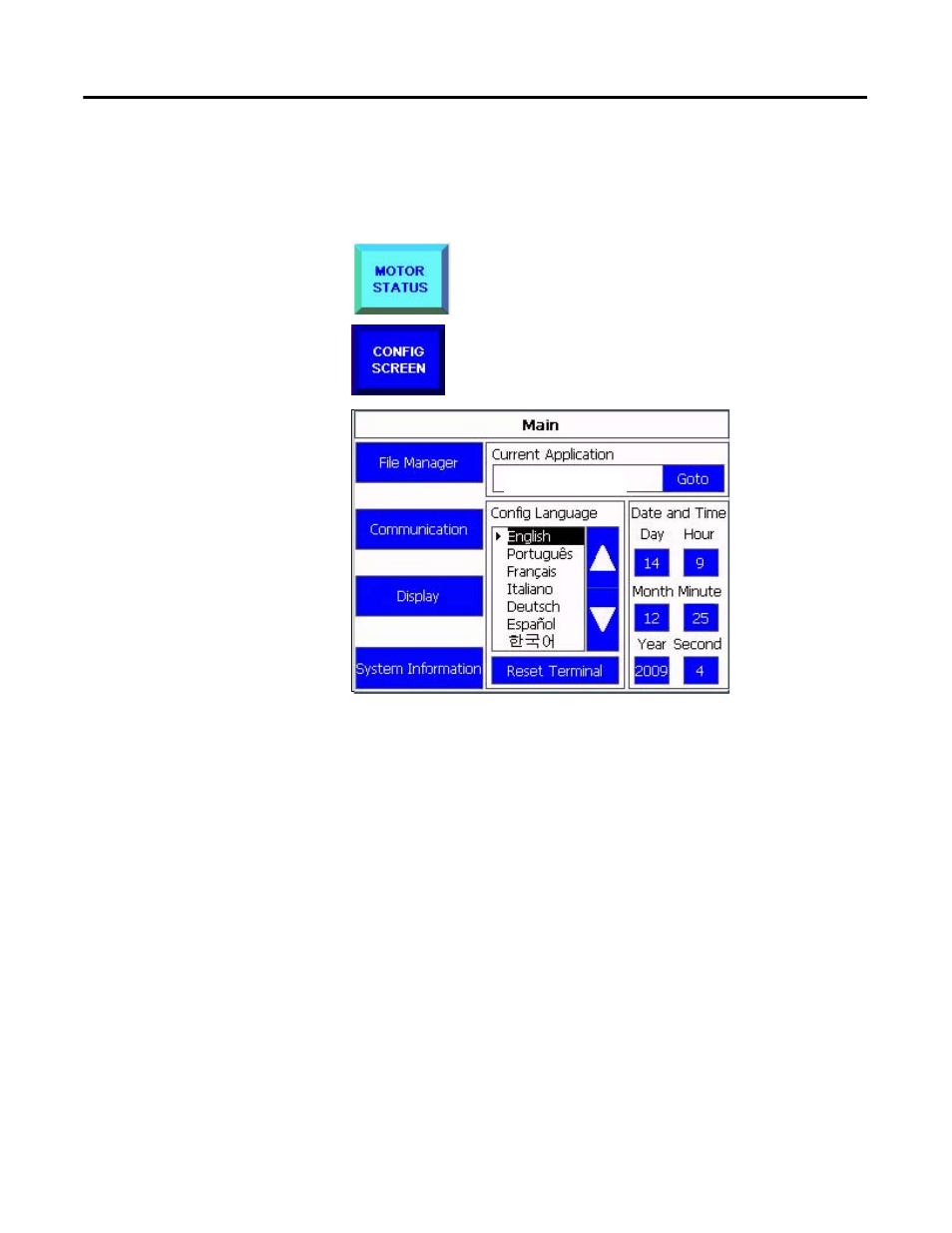

Go to Configuration Mode
You can access the configuration screens of the terminal while in Run mode.
1.
Press the Motor Status
button to return to the
Motor Status screen.
2.
Press the Config Screen
button.
The terminal leaves the
running application and goes
to the Main screen in
configuration mode.
The name of the current
application is displayed.
3.
Press the buttons on the side
to view some of the other
screens.
4.
Press the Main button when
ready to return to the
running application.
5.
Press the Goto button to
return to the application.
Sample Application
