Connect terminal to computer, Connect, Terminal to – Rockwell Automation 2711C-xxxx PanelView Component HMI Terminals Quick Start User Manual
Page 23: Computer, For ethernet cable connection, For usb cable connection
Publication 2711C-QS001F-EN-P - November 2010
23
Make Terminal Connections Chapter 2
Connect Terminal to Computer

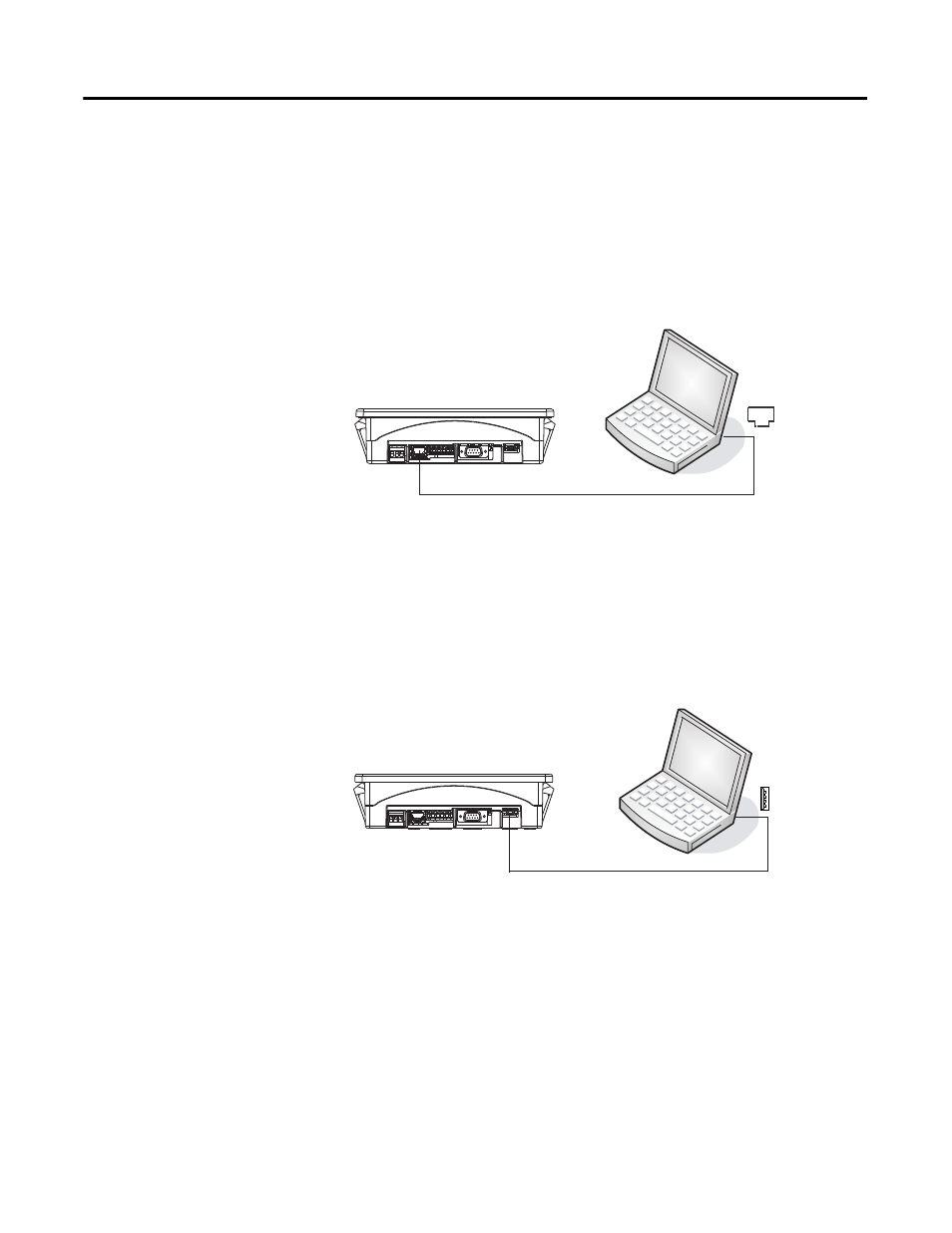

For Ethernet Cable Connection
PanelView Component C600 and C1000 terminals support an Ethernet port connection and will require a
computer with the Windows 2000, XP, or Vista operating system.
1.
Connect one end of a
standard Ethernet cable to
the Ethernet port on your
PanelView Component
terminal.
2.
Connect the other end of the
cable to the Ethernet port
on your computer.
For USB Cable Connection
All PanelView Component terminals support a USB port connection and will require a computer with the
Windows XP or Vista operating system, and the ‘PanelView USB RNDIS Device’ driver installed. The driver
cannot be installed on a computer with the Windows 2000 operating system.
1.
Connect one end of a
2711C-CBL-UU02 USB
cable to the mini USB device
port on your PanelView
Component terminal.
2.
Connect the other end of the
USB cable to a USB port on
your computer.
