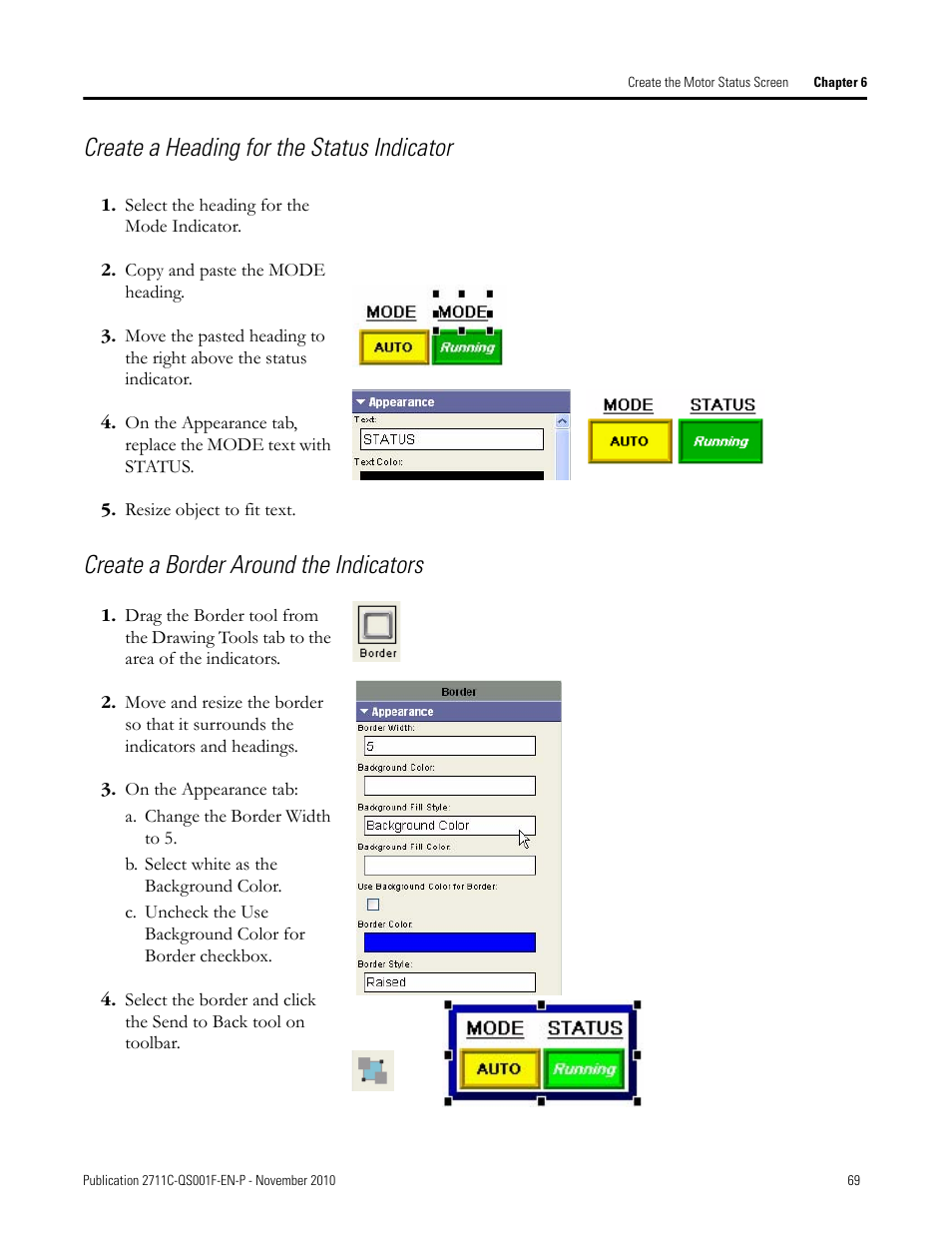

Create a heading for the status indicator, Create a border around the indicators – Rockwell Automation 2711C-xxxx PanelView Component HMI Terminals Quick Start User Manual
Page 69
