Continuous-flex Power and Brake Extension Cable with SpeedTec Connector 5

Publication 2090-IN028B-EN-P - January 2011

5. Remove the O-ring from the motor receptacle when using a cable with a SpeedTec plug.

The type of plug on the cable determines whether an O-ring is required on the
receptacle.

IMPORTANT

The O-ring dampens the effects of vibration at the cable-to-motor connection.
This creates a more secure connection for a cable with a threaded plug.

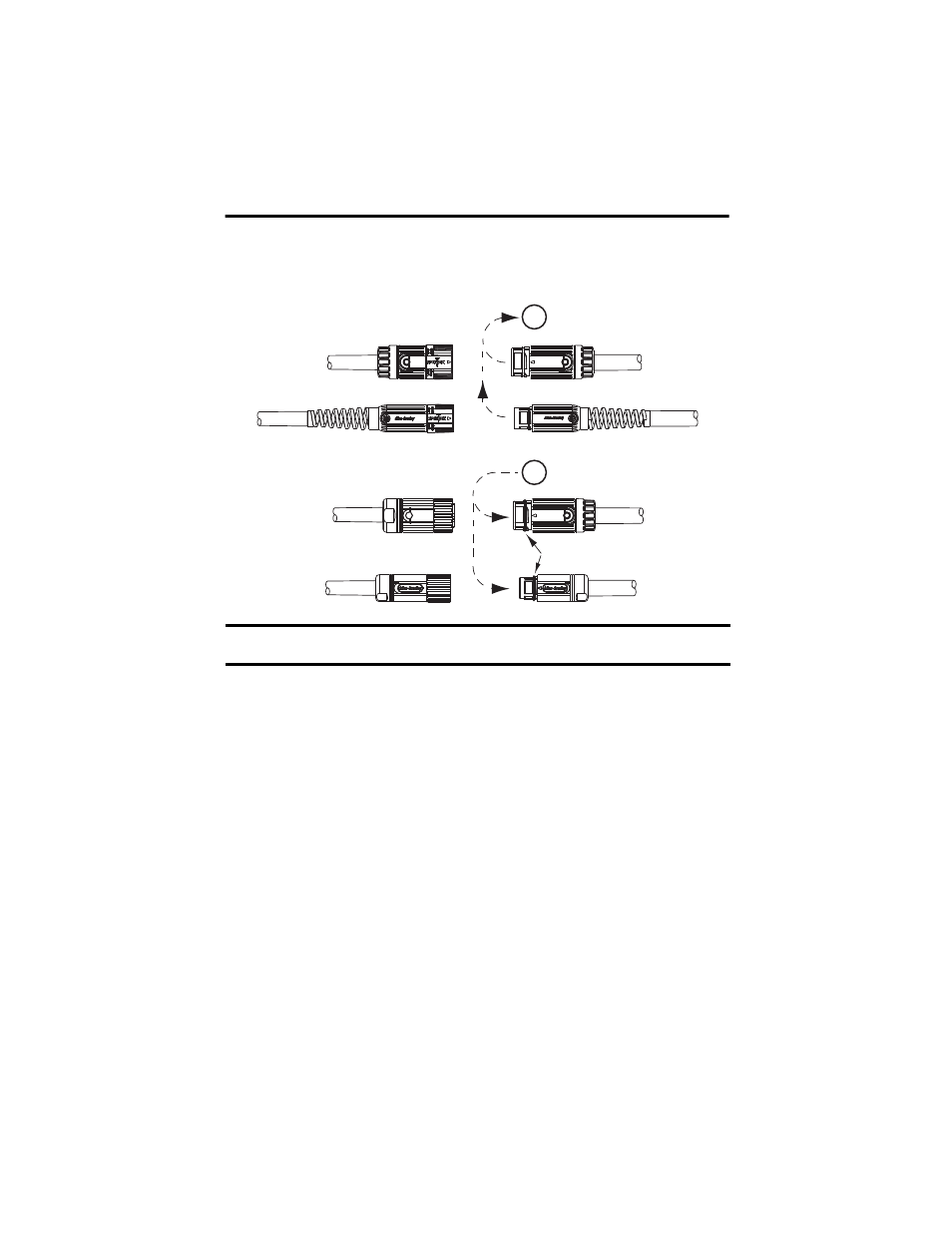

SpeedTec Plug

Threaded Plug

Remove O-ring when mating with a
SpeedTec plug.

Install O-ring when mating with a
threaded plug.

O-ring in Groove.

If an O-ring is installed, a SpeedTec plug will not engage with the receptacle.
