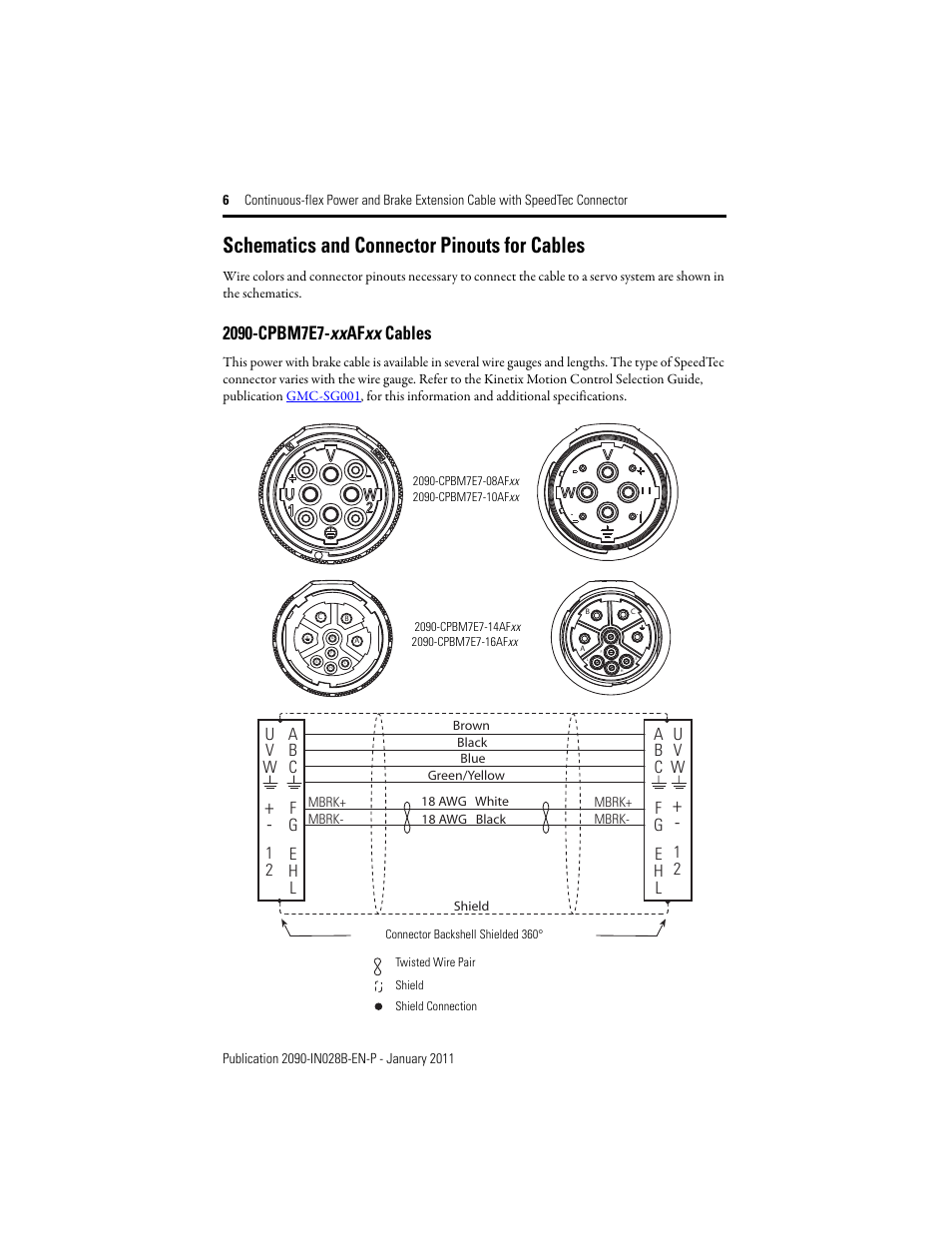

Schematics and connector pinouts for cables, 2090-cpbm7e7-xxafxx cables – Rockwell Automation 2090-CPxxx Continuous-flex Power and Brake Extension Cable with DIN Connector User Manual
Page 6
