10 ControlNet Adapter Module
Publication 1747-IN017C-EN-P - May 2001

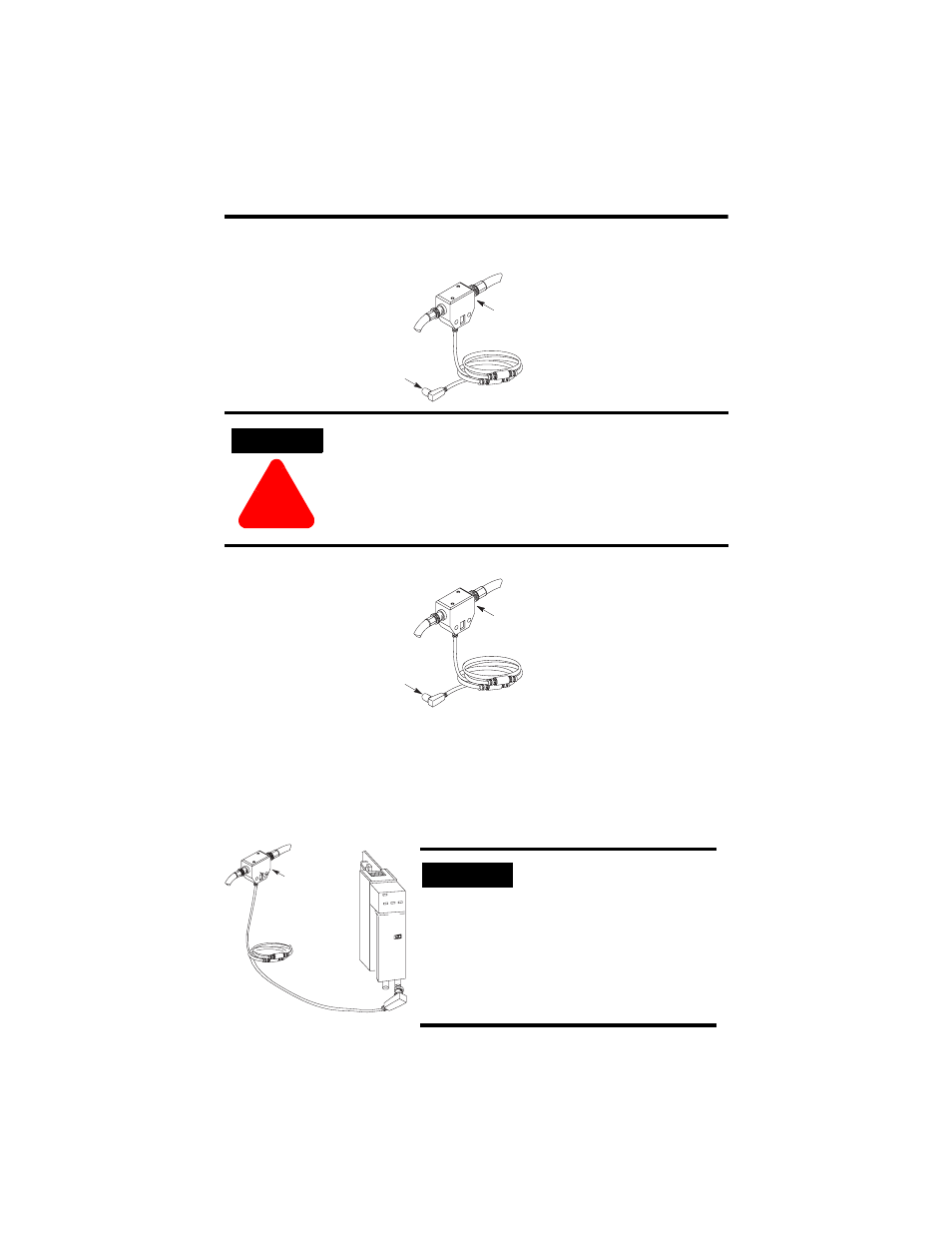

2. Remove and discard the dust caps from the adapter BNC jacks.
3. Remove and discard the dust caps from the adapter BNC jacks.
4. Connect this tap’s straight or right angle connector to the BNC connector on
the adapter.
ATTENTION
!
Do not allow any metal portions of the tap to contact any
conductive material. If you disconnect the tap from the
adapter, place the dust cap back on the straight or right angle
connector to prevent the connector from accidentally
contacting a metallic grounded surface.
segment 1
Tap
dust cap
segment 1
Tap
dust cap
segment 1
tap
IMPORTANT
To prevent inadvertent
reversal of the top
connections (resulting in
incorrect LED displays and
troubleshooting), check the
tap drop cable for a label
indicating the attached
segment before making your
connection.
