GuardPLC Relay Output Module 3
Rockwell Automation Publication 1753-IN012C-EN-P - June 2010
About the 1753-OW8 Relay Output Module

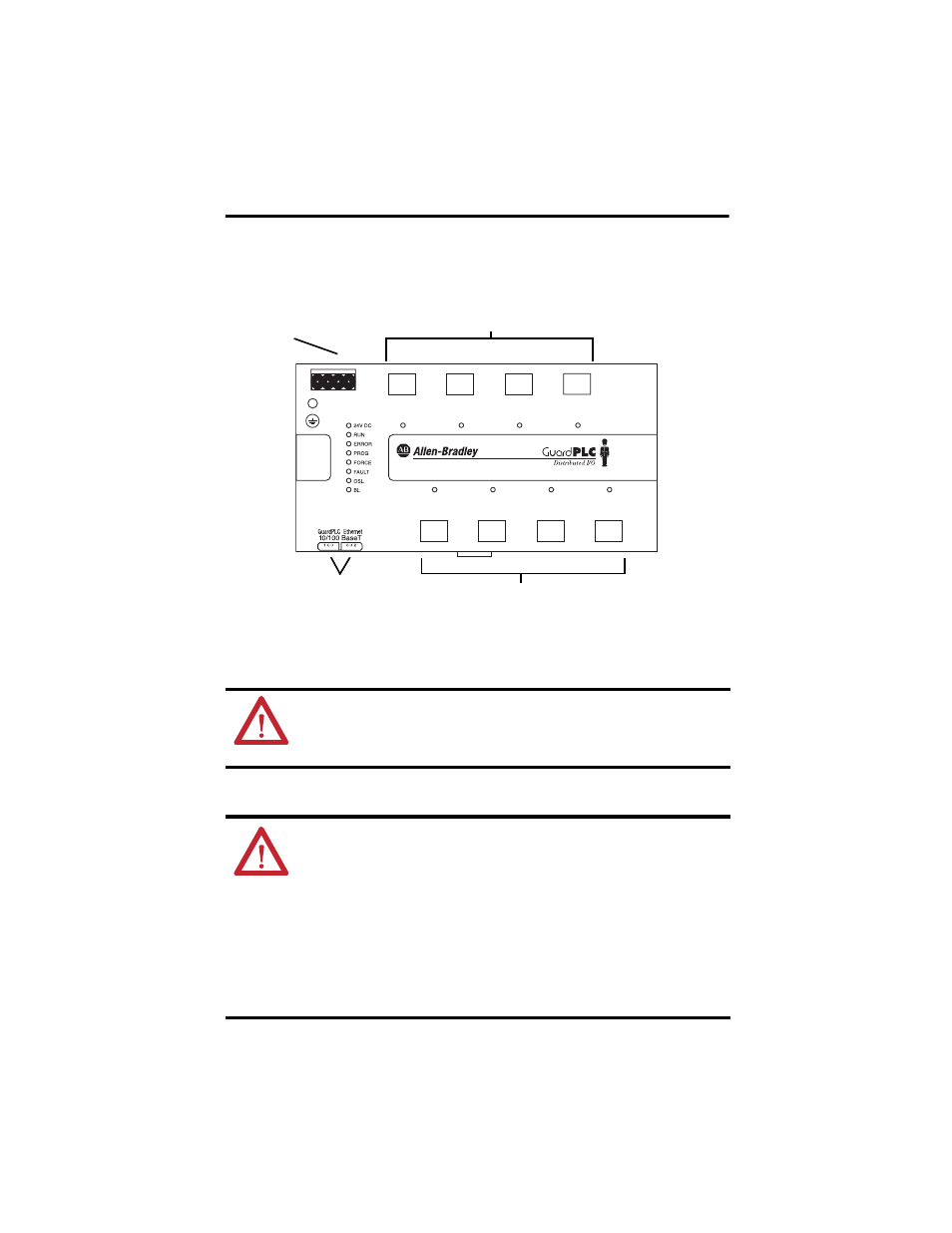

The 1753-OW8 relay output module is a distributed I/O module for use with GuardPLC
controllers. The module features eight relay outputs as shown below.
General Safety
Prevent Electrostatic Discharge
ATTENTION: Personnel responsible for the application of safety-related
programmable electronic systems (PES) shall be aware of the safety
requirements in the application of the system and shall be trained in using the
system.
ATTENTION: This equipment is sensitive to electrostatic discharge, which can
cause internal damage and affect normal operation. Follow these guidelines
when you handle this equipment:
•
Touch a grounded object to discharge static potential.
•
Wear an approved wrist-strap grounding device.
•
Do not touch connectors or pins on component boards.
•
Do not touch circuit components inside the equipment.
•
Use a static-safe workstation, if available.
•
Store the equipment in appropriate static-safe packaging when not in use.
1753-OW8
8 Digital Outputs
DO1
1 2
DO5 DO6 DO7 DO8
DO2
3 4
DO3
5 6
DO4
7 8
9 10 11 12 13 14 15 16
L- L- L+ L+
24V DC
Relay Outputs (1…4)
Relay Outputs (5…8)
Voltage Supply
Connection
Ethernet Ports
(on bottom of controller)
