Configuring Your Block I/O
Chapter 3
3-8
Table 3.C

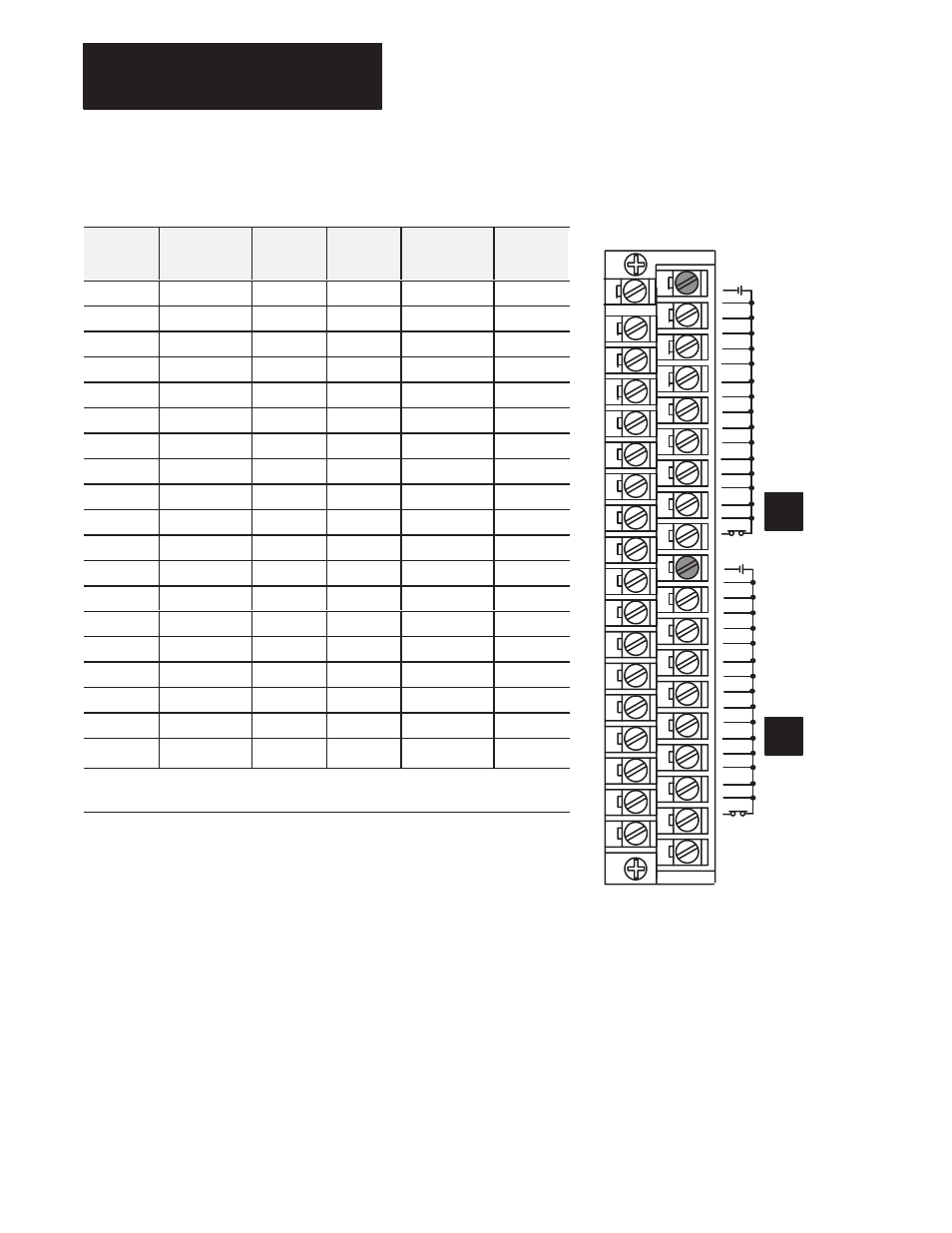

1791-IOBX Input Terminal Addressing for Groups 2 and 3 (TRM2)
Terminal
Number
Input
Assignment
Group 2
Program
Address
Terminal
Number
Input
Assignment
Group 3
Program
Address
1 Common C 19 Common D
2 Input 00 1X(Y+2)00 20 Input 00 1X(Y+3)00
3 Input 01 1X(Y+2)01 21 Input 01 1X(Y+3)01
4 Input 02 1X(Y+2)02 22 Input 02 1X(Y+3)02
5 Input 03 1X(Y+2)03 23 Input 03 1X(Y+3)03
6 Input 04 1X(Y+2)04 24 Input 04 1X(Y+3)04
7 Input 05 1X(Y+2)05 25 Input 05 1X(Y+3)05
8 Input 06 1X(Y+2)06 26 Input 06 1X(Y+3)06
9 Input 07 1X(Y+2)07 27 Input 07 1X(Y+3)07
10 Input 10 1X(Y+2)10 28 Input 10 1X(Y+3)10
11 Input 11 1X(Y+2)11 29 Input 11 1X(Y+3)11
12 Input 12 1X(Y+2)12 30 Input 12 1X(Y+3)12
13 Input 13 1X(Y+2)13 31 Input 13 1X(Y+3)13
14 Input 14 1X(Y+2)14 32 Input 14 1X(Y+3)14
15 Input 15 1X(Y+2)15 33 Input 15 1X(Y+3)15
16 Input 16 1X(Y+2)16 34 Input 16 1X(Y+3)16
17 Input 17 1X(Y+2)17 35 Input 17 1X(Y+3)17
18 N.C. 36 N.C.
37 N.C.
Where: X = Rack Number (1, 2, 3 ...)
Y = Module Group (0-7)
