Output Tags
The output tags in
Table 7 on page 75
provide real-time control over the
module’s operation.
Counter[x].InWindow0
BOOL
Window 0 Input—Indicates whether the accumulated count or frequency value of Counter[x] is within the
parameters defined by the Counter[x].Window0On and Counter[x].Window0Off output tags. A change in window status
triggers a Change of State (COS) message to be sent to the owner-controller or peer module.
0 = Counter[x] value is not within window 0.
1 = Counter[x] value is within window 0.
Counter[x].InWindow1
BOOL
Window 1 Input—Indicates whether the accumulated count or frequency value of Counter[x] is within the
parameters defined by the Counter[x].Window1On and Counter[x].Window1Off output tags. A change in window status
triggers a Change of State (COS) message to be sent to the owner-controller or peer module.
0 = Counter[x] value is not within window 1.
1 = Counter[x] value is within window 1.
Counter[x].Direction
BOOL
Direction—Indicates the direction of the last count or instantaneous frequency.
0 = Direction of the last count was down.
1 = Direction of the last count was up.
(1) The average frequency and average pulse width cannot be calculated on the same pulse due to frequency timeouts.
Table 6 - Counter Module Input Tags (continued)
Name
Data Type
Definition
IMPORTANT
In RSLogix 5000 software, versions 18.02.00 and later, output tag information
is sent to the counter module only at the RPI rate defined during configuration.
For optimal performance, use an Immediate Output (IOT) instruction.

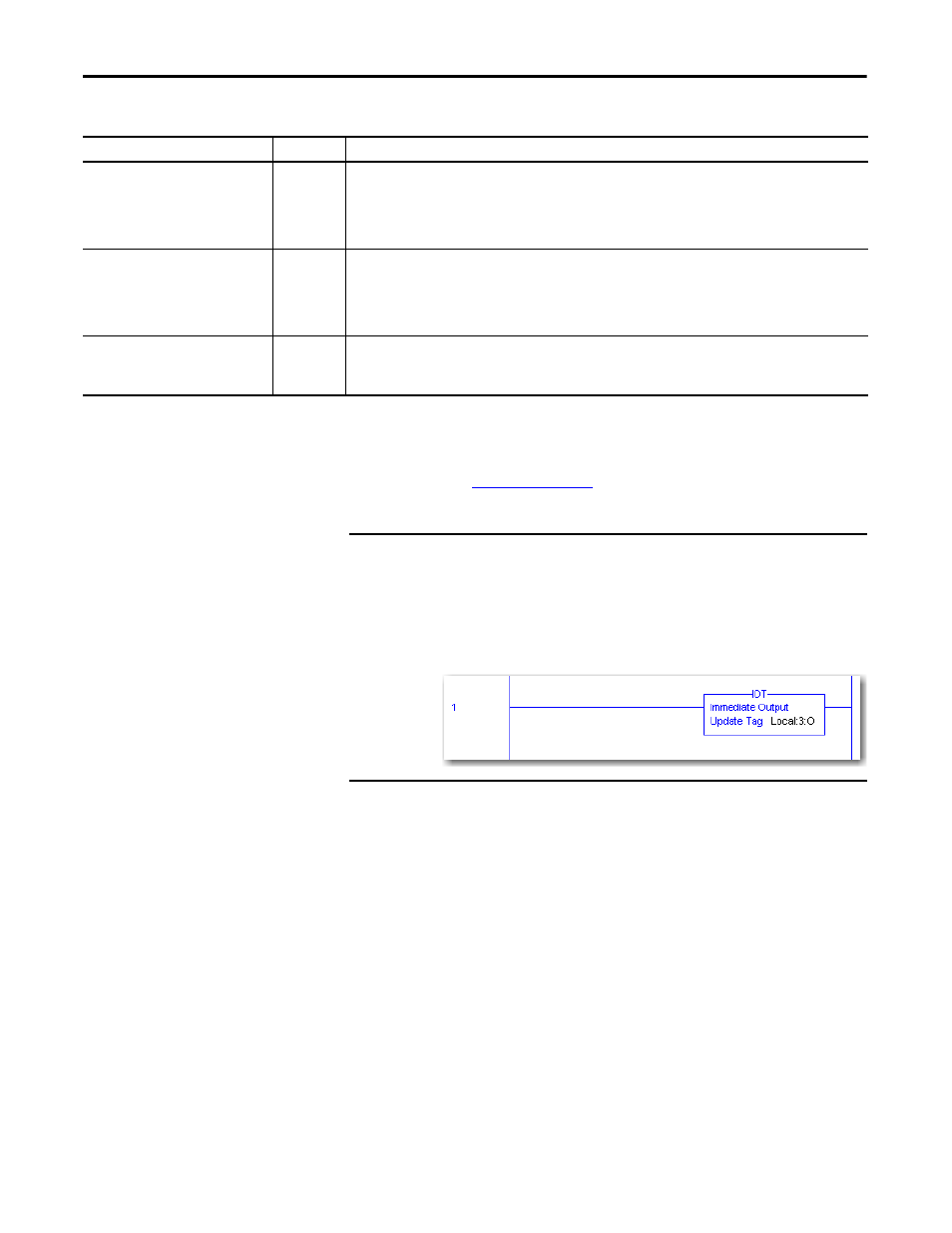

For example, the rung shown below contains an IOT instruction for a counter
module in slot 3. Add a similar rung to your last routine within the Main Task to
mimic normal output tag processing.
