ArmorBlock MaXum I/O Cable Bases DeviceNet Powered Outputs Series B 9
Publication 1792D-IN001B-EN-P - September 2000

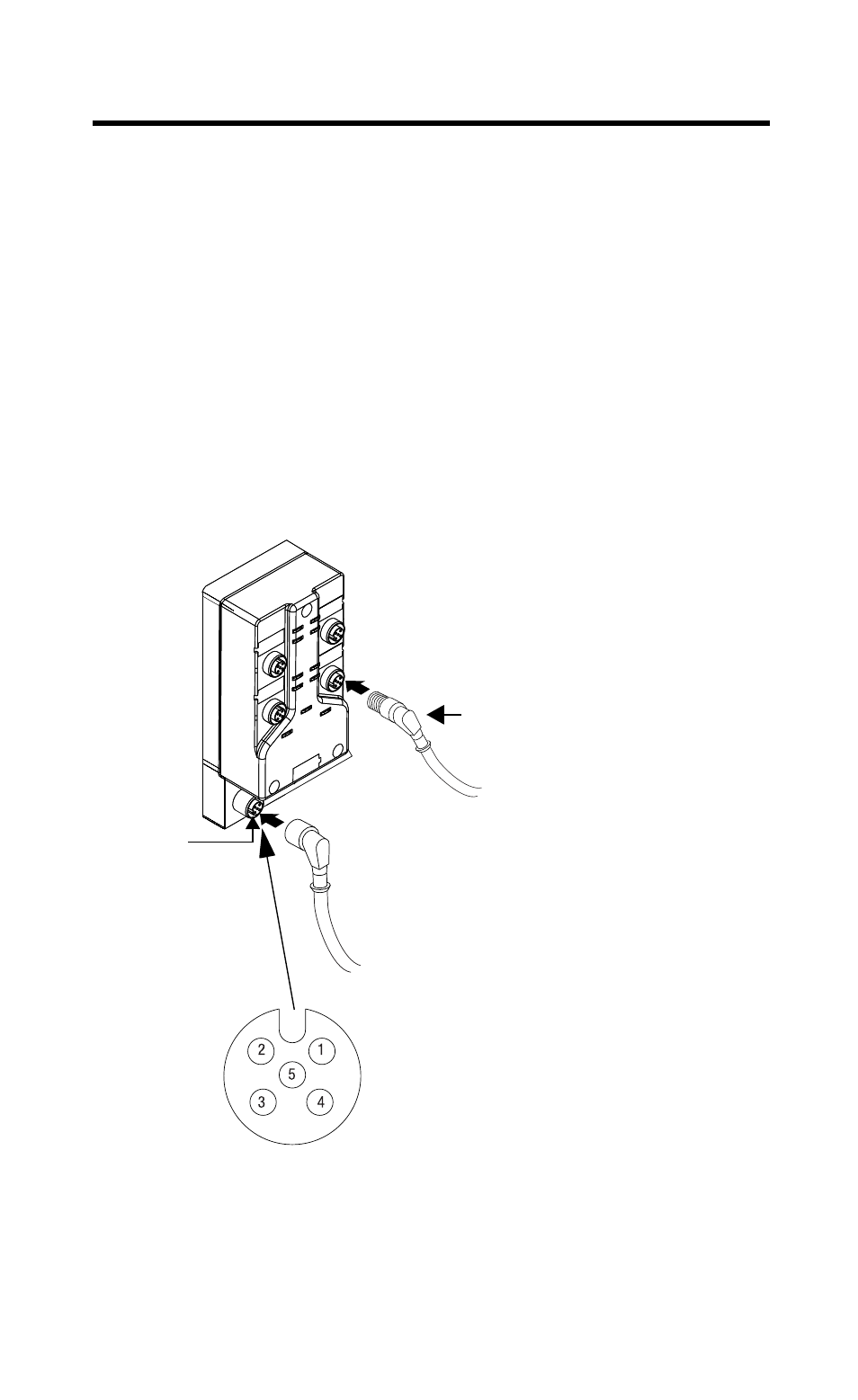

Attach the Cables (1792D-CB12JP)
1. Attach your network cable to the connector.
Note: The network cable drops straight down away from the
module.
2. Attach your I/O cables.
Note: I/O cables drop at a 45 degree angle because of the pin
settings, if you use a right angle connector.
3. Cover any unused point connectors with micro caps.
42278
I/O cable with a right angle
connector
5 pin
network
connector
41583
DeviceNet Male Connector
Pin 1 Drain
Pin 2 V+
Pin 3 V-
Pin 4 CAN_H
Pin 5 CAN_L
