Rockwell Automation 1747-OS302_OS401 SLC 5/03 and 5/04 Processors Firmware/Operating System Upgrade User Manual
Page 6

Publication 1747-IN007C-EN-P - October 2002
6 SLC 5/03™ and SLC 5/04™ Processors Firmware/Operating System Upgrade
If the LED’s indicate:
(1)
If the LED’s indicate:
If the LED’s indicate:
(1) The DH485 LED on the SLC 5/03 processor is labeled DH+ on the SLC 5/04 processor.
POWER
RUN
FLT
BATT
FORCE
DH485
RS232

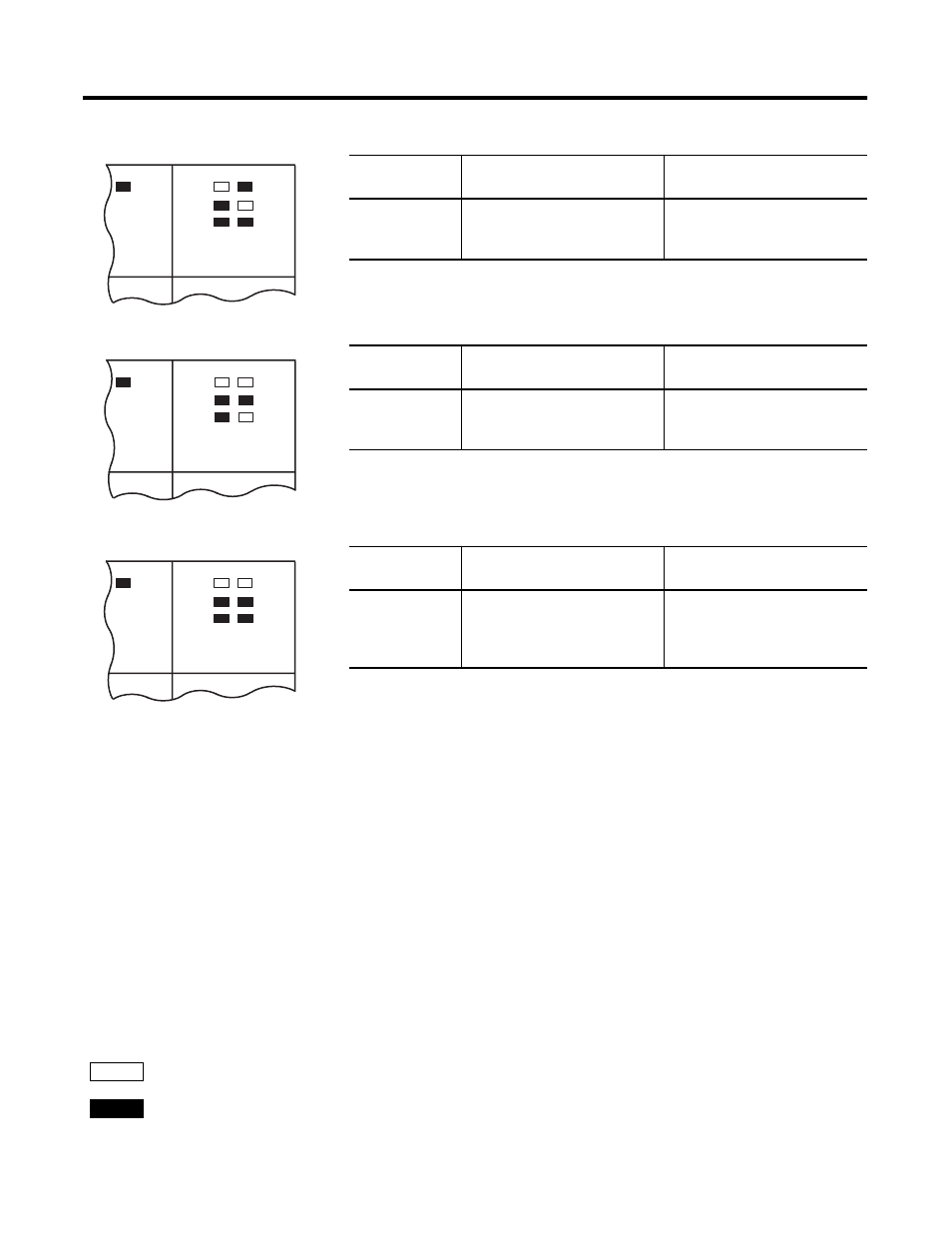

Refer to the following key to determine the status of the LED indicators:
Indicates the LED is OFF.
Indicates the LED is ON.
The Following
Error Exists
Probable Cause
Recommended Action
Downloadable
Operating
System Failure
Failure during transmission of
downloadable operating system.
Download the operating system.
POWER
RUN
FLT
BATT
FORCE
DH485
RS232
The Following
Error Exists
Probable Cause
Recommended Action
Incompatible
Platform
The upgrade of the operating
system is incompatible with the
processor hardware.
Use an operating system that is
compatible with your processor
hardware.
POWER
RUN
FLT
BATT
FORCE
DH485
RS232
The Following
Error Exists
Probable Cause
Recommended Action
Memory Write
Protected
An attempt was made to
download the operating system
onto write-protected memory.
Change the J4 jumper of the
SLC 5/03 and SLC 5/04
processors to the program
position.
