Rockwell Automation 1769-ASCII Compact I/O ASCII Module User Manual
Page 93
Rockwell Automation Publication 1769-UM012B-EN-P - January 2014
93

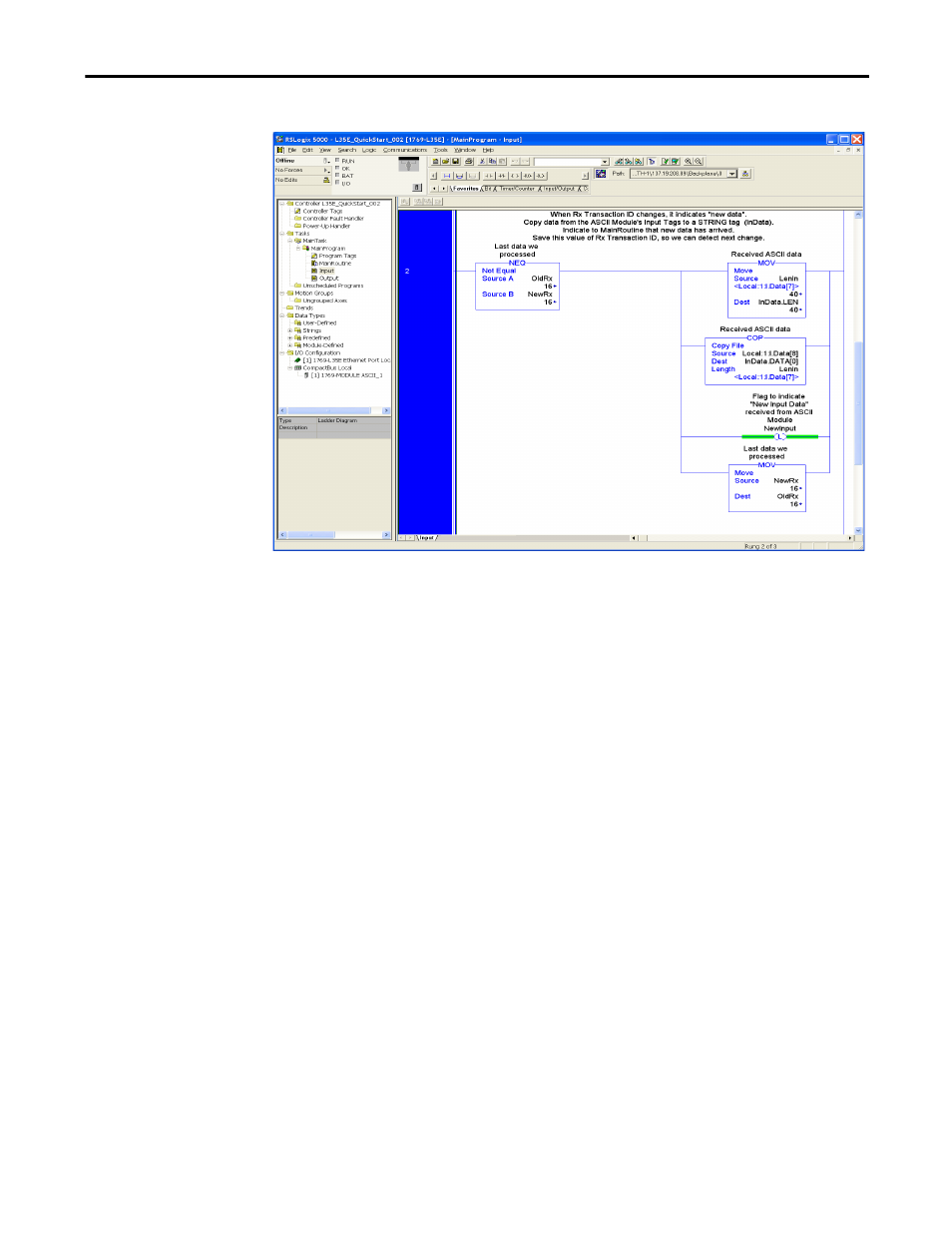

Configure the 1769-ASCII Module as a Generic Module
Appendix A
• transfer from input to output
10. Download your program to the controller.
11. Place the controller in Run mode.
12. Connect channel 0 of the ASCII module to a COM port of your
computer.
13. Run HyperTerminal.
14. Configure HyperTerminal so that the configuration matches the ASCII
device for baud rate and framing.
15. Turn off flow control.
16. In HyperTerminal, type in a value.
Type some text into HyperTerminal. When you press enter, the ASCII
module returns the same line of text back to your screen.
TIP
For a detailed example, see the 1769-ASCII module example in RSLogix
5000 software, version 15, called Example_for_1769-_ASCII_Module.ACD
at \RSLogix 5000\Projects\Samples\ENU\v15\Rockwell Automation.
