Rockwell Automation Publication 1769-UM012B-EN-P - January 2014 21
Chapter
2
Configure the 1769-ASCII Module
This chapter describes how to configure and program the 1769-ASCII module
with CompactLogix controllers and the MicroLogix 1500 controller.
Starting on page 34 , there are three example Logix Designer programs using the
1769-ASCII module’s Add-On Profile. The examples use the Add-On Profile
instead of the generic module profile. Using the Add-On Profile saves you time
by making the configuration of the module easier, for example, not having to
input a lot of data.
• Connect to Channel 0 of the Module in Alternating Mode on page 34
•
Connect to Both Channels of the Module in Alternating Mode on page 41
•
Connect to Both Channels of the 1769-ASCII Module in Simultaneous
Mode on page 49
To access these Logix Designer programs, see the Knowledgebase Technote #
64203 at
https://rockwellautomation.custhelp.com/app/answers/detail/a_id/
64203 .
Configure the 1769-ASCII
Module Follow these steps to add and configure the 1769-ASCII module.

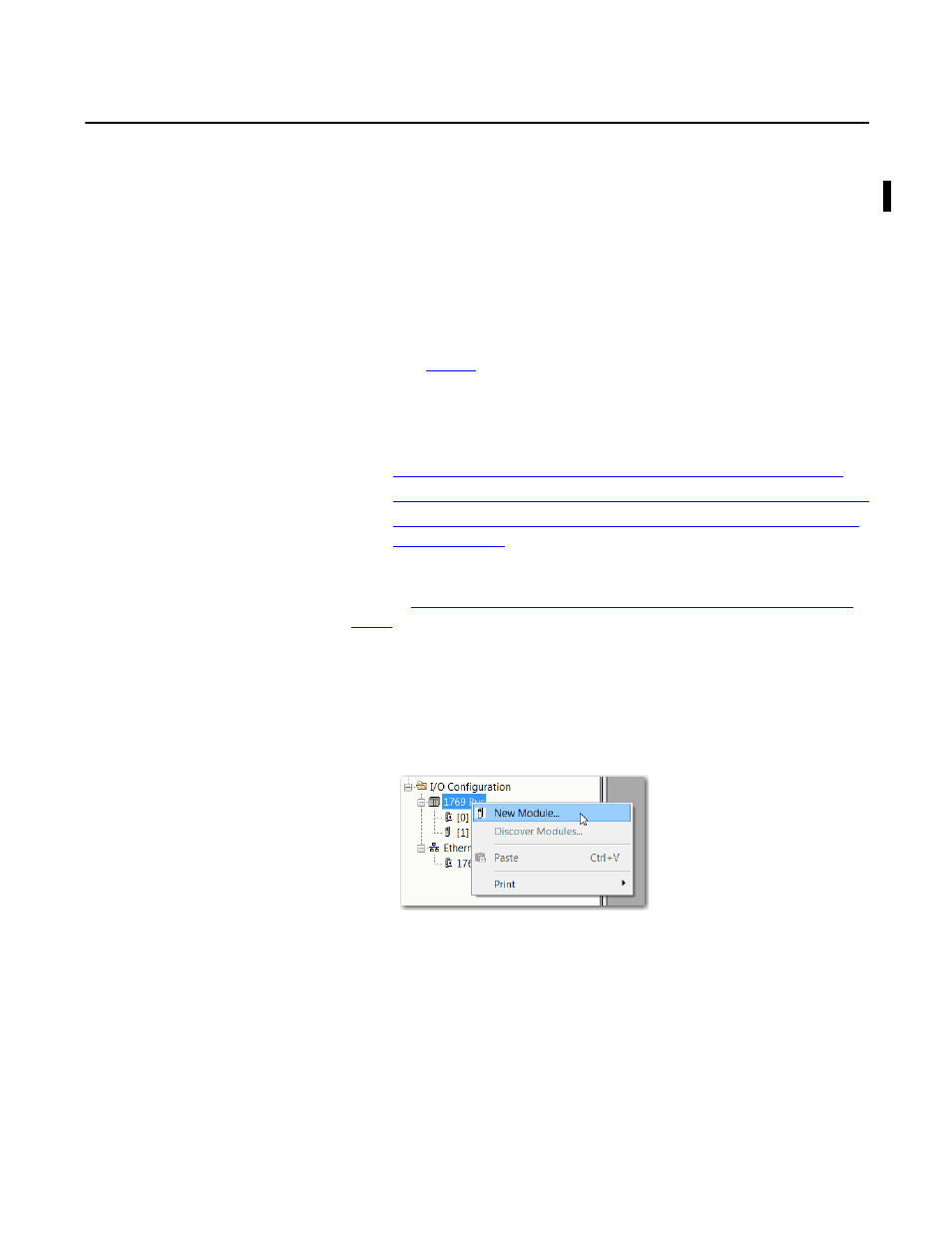

1. Right click on the 1769 Compact Bus in your Logix Designer project and
choose New Module.
