16 ControlLogix ControlNet Bridge Module
Publication
1756-IN602A-EN-P - November 2005
Connect a Programming Terminal to the Network with 1786-CP Cable
To connect a programming terminal to the network using a 1786-CP
cable, you have these options:
• Use a 1784-KTC, 1784-KTCx, or 1784-PCC communication card
and a 1786-CP cable (pictured)
WARNING
If you connect or disconnect the communications cable
with power applied to this module or any device on the
network, an electrical arc can occur. This could cause an
explosion in hazardous location installations.
IMPORTANT
To use redundant media, all nodes must support
redundant media.
If you are using redundant media, connect the channel
of each partner to the same network segment.

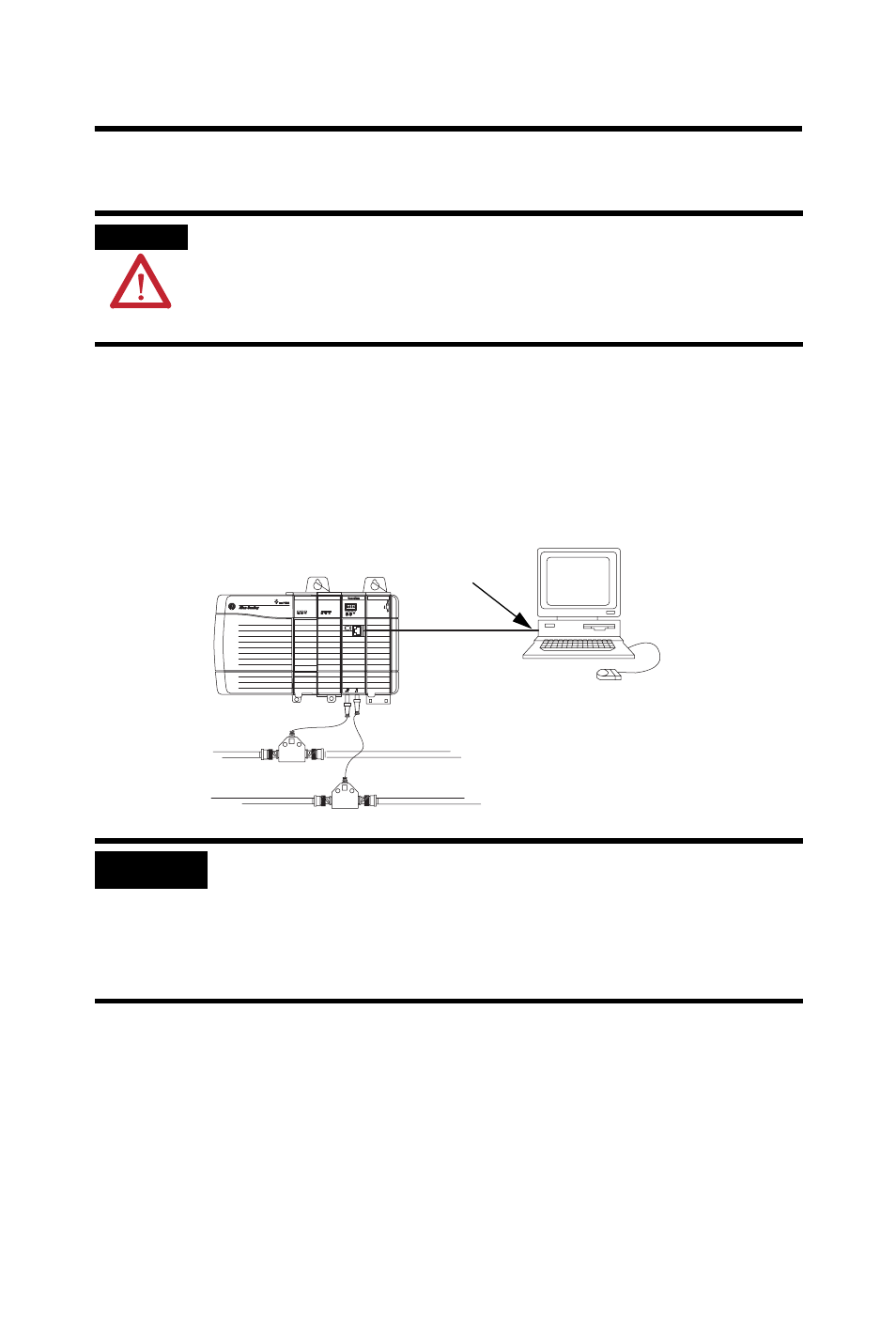

1756-CN2R
1786-CP Cable
1784-KTC, KTCx,
PCIC, or PCC Card
ControlNet Link
