10 ControlLogix ControlNet Bridge Module
Publication
1756-IN602A-EN-P - November 2005
For information about installing these products, refer to the
publications listed in this table.
These modules are compatible with all versions of chassis and power
supplies.
Determine Module Slot Location

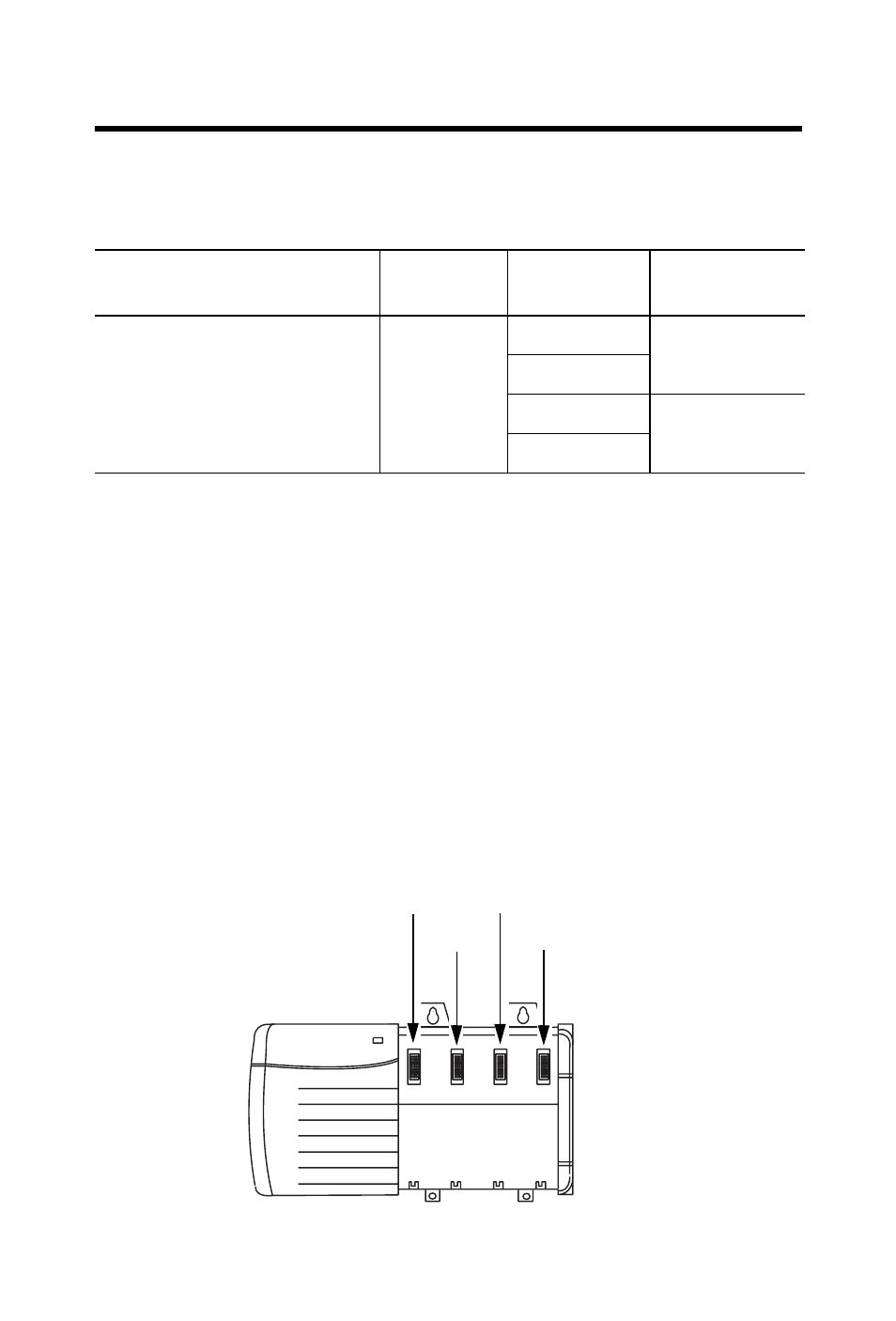

This figure shows chassis slot numbering in a 4-slot chassis. Slot 0 is
the first slot and is always the leftmost slot in the rack (the first slot to
the right of the power supply). You can use any size ControlLogix
chassis and install the module in any slot. You can also install
multiple bridge modules in the same chassis. You can install as many
modules as your power supply can accommodate (that is, the
number for which the power supply is rated).
Chassis Type
Chassis
Installation
Power Supply
Power Supply
Installation
Series B: 1756-A4, 1756-A7,
1756-A10, 1756-A13, 1756-A17
Publication
1756-IN080
1756-PA72/C
Publication
1756-IN078
1756-PB72/C
1756-PA75/B
Publication
1756-IN596
1756-PB75/B
Chassis
Power Supply
Slot 0
Slot 1
Slot 3
Slot 2
