Status indicators – Rockwell Automation 1784-U2CN USB-to-ControlNet Cable Installation Instructions User Manual
Page 9
USB-to-ControlNet Cable 9
Publication
1784-IN047A-EN-P - November 2008

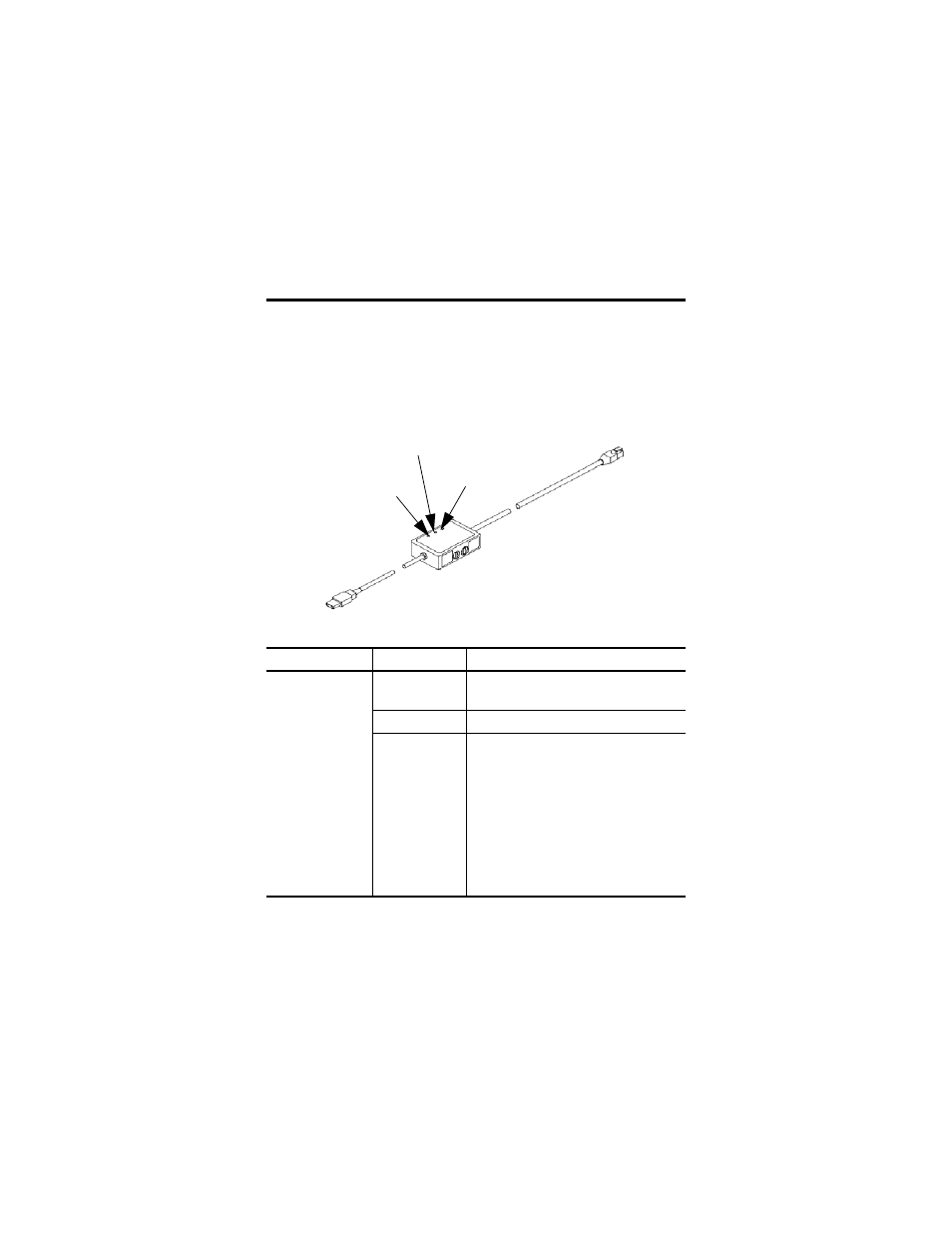

Status Indicators
The following table describes the cable status indicators.
Indicator
Status
Description
USB
Green
The cable is configured, but no network traffic
is present.
Flashing green
Network traffic is present.
Off
Unable to transfer data.
• Disconnected from host.
• In one of the following states:
– default
– powered
– address
– suspend
USB
ControlNet
Network Status
Module
Status
