The two switches are:
• MSD (most significant digit)
• LSD (least significant digit)
To reset the node address, use a small blade screwdriver to rotate the
switches. Line up the small arrow on the switch with the number
setting you wish to use.
The rotary switches are read at module power up only. Settings
between 64 and 99 cause the module to use the last valid node
address stored internally. Example: The last setting was 40. If a
change is made to 68, and then you power up, the address will
default to 40. Use the mini caps to cover and seal node address
switch ports.

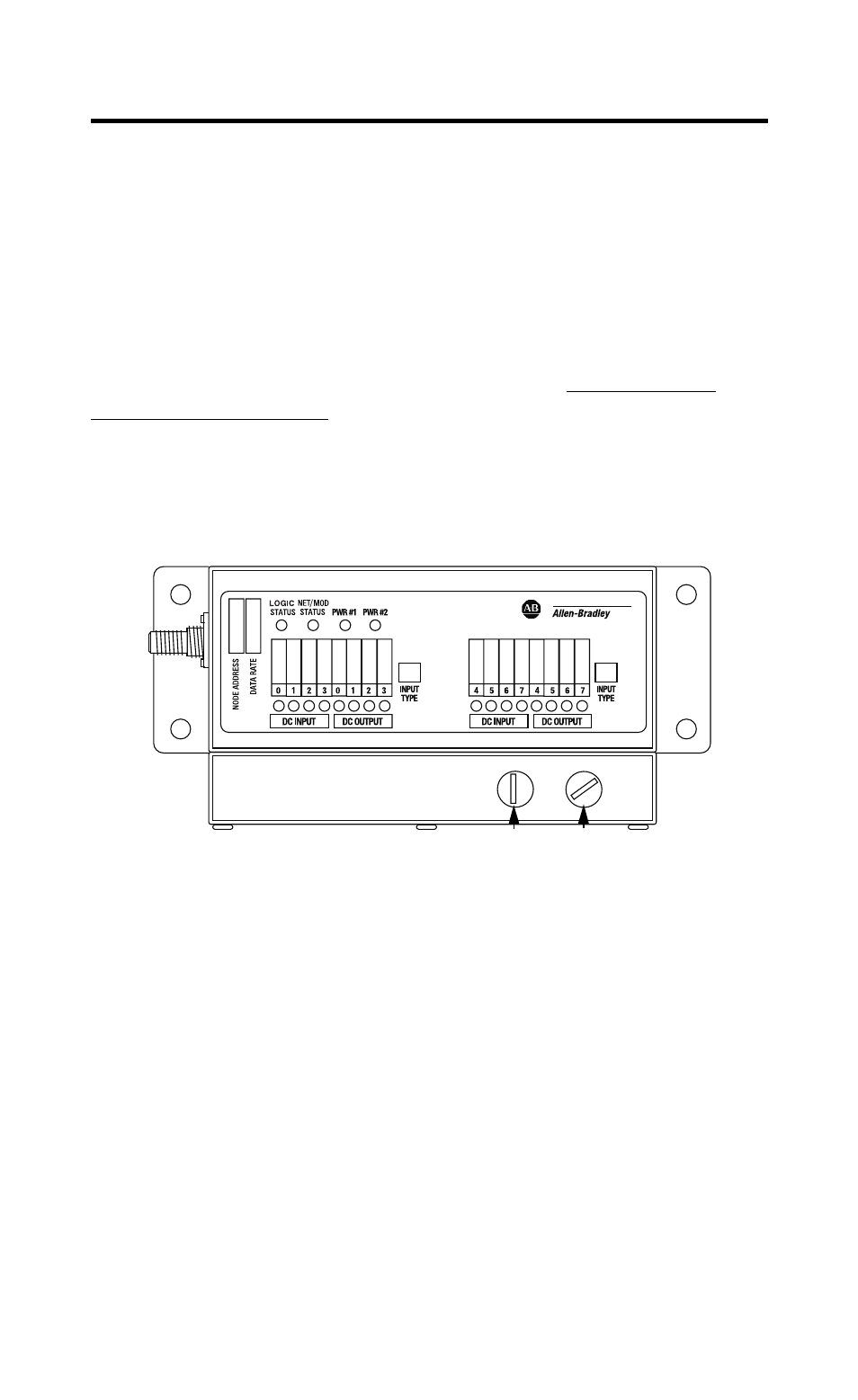

Refer to the illustration of the rotary switches below.
The module is equipped with AutoBaud detect. AutoBaud lets the
module read the settings already in use on your DeviceNet network
and automatically adjusts to follow those settings. The module is
shipped with AutoBaud enabled.
Mount the Module
1. Place the module against the panel where you want it
mounted.
2. Drill holes in the panel that are aligned with the moving holes
on the module.
MSD LSD
41945
