ArmorPOINT™ 24V DC Analog Output Modules 5
Publication 1738-IN004B-EN-E - July 2011
Mount the I/O Base
To mount the base on a wall or panel, use the screw holes provided in the base.

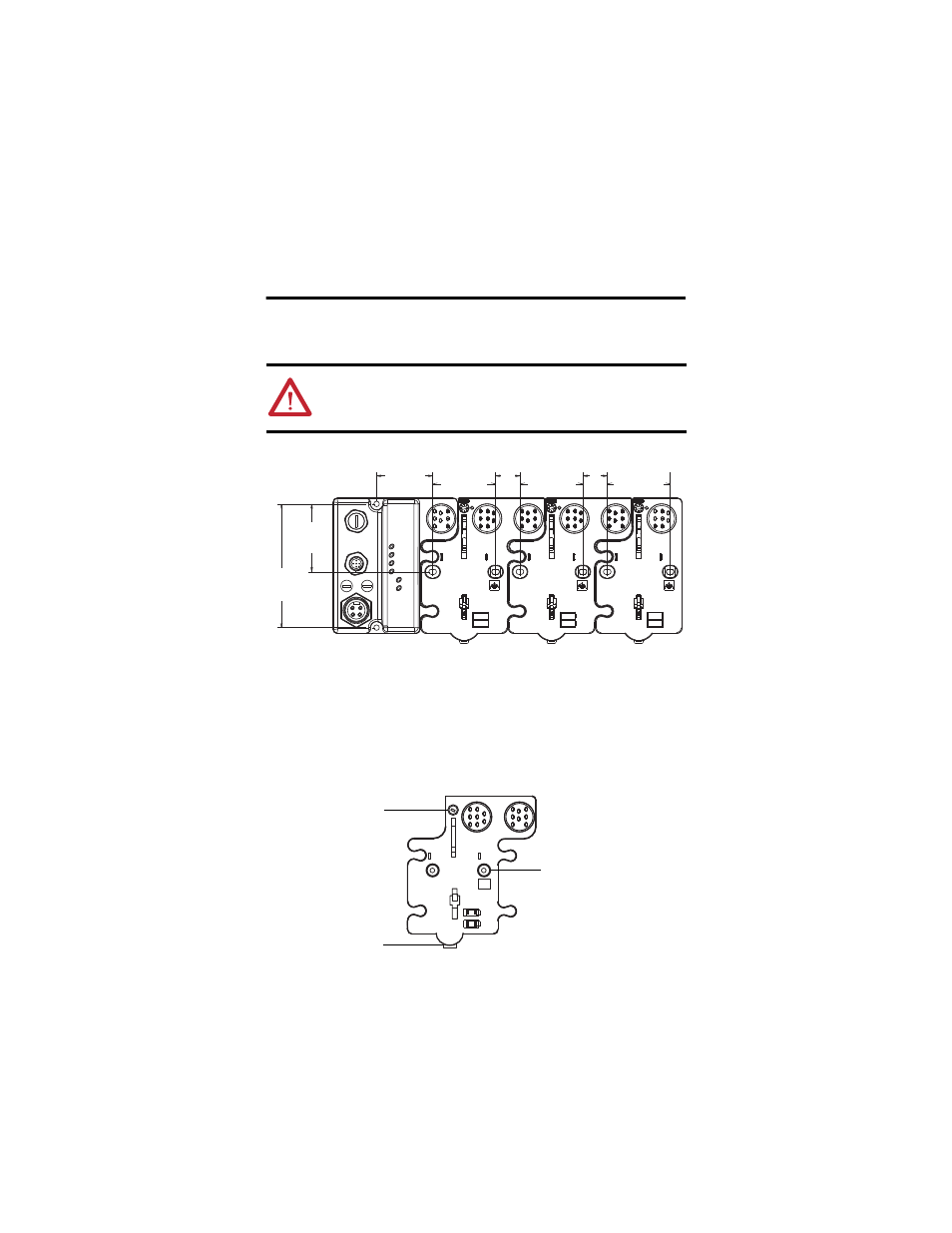

A mounting diagram for the ArmorPOINT base with adapter is shown here.
Install the mounting base as follows:
1. Lay out the required points as shown above in the drilling dimension diagram.
2. Drill the necessary holes for M4 (#8) machine or self-tapping screws.
3. Mount the base using M4 (#8) screws.
4. Ground the system using the ground lug connection. The ground lug connection
is also a mounting hole.
ATTENTION: The ArmorPOINT I/O module must be mounted on a grounded
metal mounting plate or other conductive surface.
102
(4.02)
56
(2.2)
46.25 (1.8)
51.9 (2)
Adapter
20.1 (0.8)
45707
Millimeters
(Inches)
51.9 (2) 51.9 (2)
20.1 (0.8)
Mounting base Keyswitch – set to
position 4 for 1738
analog output modules
Ground lug connection
Latching mechanism 45708
