Rockwell Automation 1734-IK Encoder/Counter Modules User Manual User Manual
Page 50

Publication 1734-UM006B-EN-P - August 2005
5-2 Access Instantiated Instances

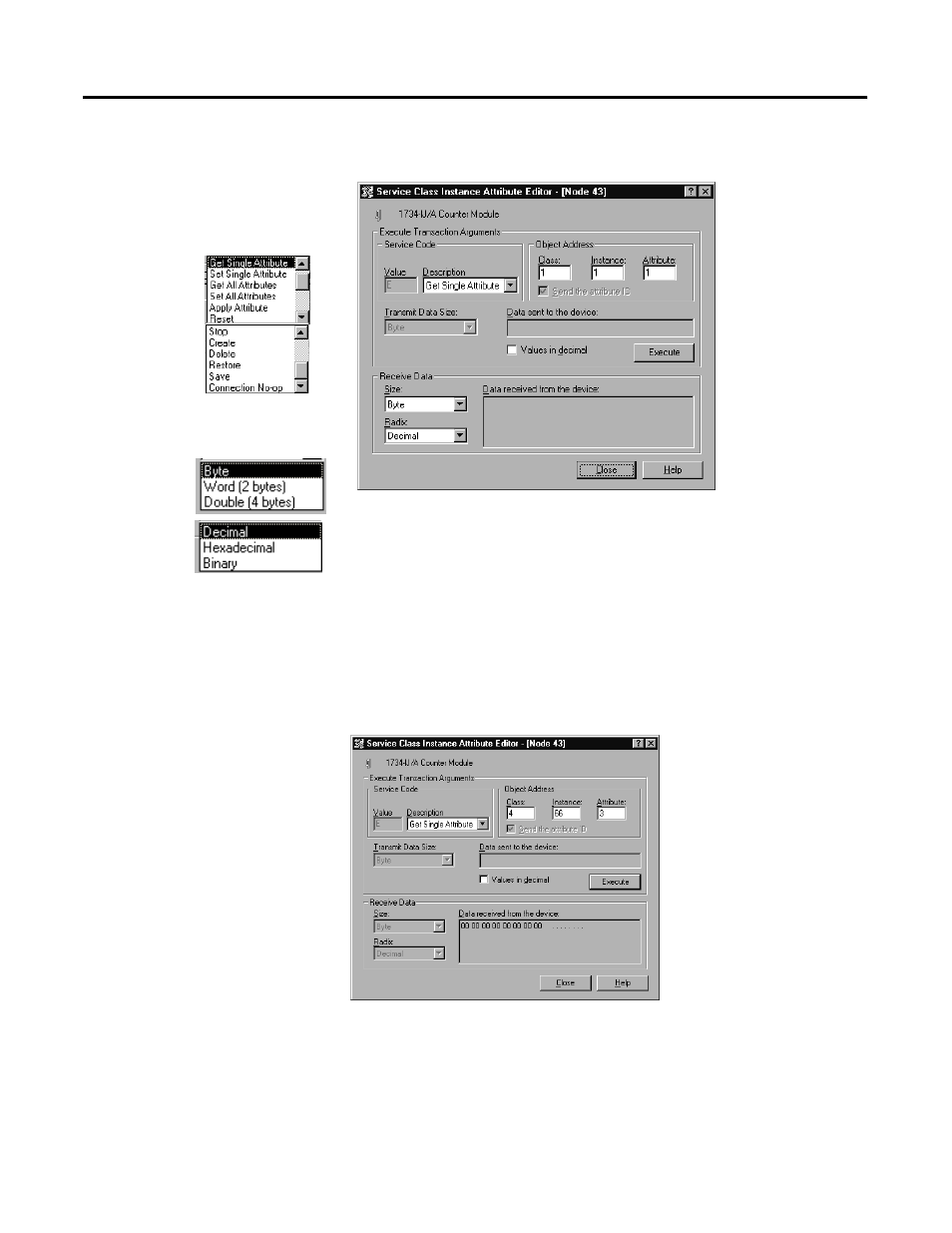

The Class Instance Attribute editor dialog appears.
For example:
If you select Instance 101 (polled connection), the dialog looks like
this.
1. Select the service code
3. Enter the class,
instance and attribute
here.
4. Click on Execute to
initiate the action.
3. Select the Receive
Data size and radix.
1. Type in the instance number
here. This is an example of
assembly number 102 (0x66).
(The class is always 4 and the
attribute is always 3.)
2. Click on execute.
3. Data received and status
information is recorded here.
4. Click on Close to finish.
