Installation Data

Enhanced PLCĆ5 and Ethernet PLCĆ5

Programmable Controller Memory Module

9

Important: You can have continuous processor memory backup after
restoring a program from a memory module to a processor by following
these instructions:

1.

Turn off power to the processor and I/O chassis.

2.

Remove the memory module by following the removal procedure in
this document (see page 5).

3.

Remove the write protection jumper with needle nose pliers to guard
against unauthorized changes. Store the jumper in a safe place for
future use.

4.

Re-install the memory module into the processor by following the
installation procedure in this document (see page 5).

5.

Remove the processor from the I/O chassis.

6.

Set switch 6 and 7 of the assembly backplane switches to the ON
position (see page 4).

7.

Re-install the processor into the I/O chassis.

The following table shows the specifications for the memory modules.

Memory Module

1785ĆME16 1785ĆME32 1785ĆME64 1785ĆM100

Capacity

16K words

32K words

64K words

100K words

Type

Nonvolatile

Write Protection

By removing the jumper

Weight

85.05 g

3 oz

70.875 g

2.5 oz

70.875 g

2.5 oz

70.875 g

2.5 oz

Environment

Operating Temperature 0

°

to 60

°

C (32

°

to 140

°

F)

Storage Temperature

Ć40

°

to 85

°

C (Ć40

°

to 185

°

F)

Relative Humidity

5 to 95% (without condensation)

Shock Testing Operating

15 g peak acceleration at 11 ms duration

NonĆoperating

3 g peak acceleration at 11 ms duration

Vibration Testing

2 g peak acceleration at 10Ć500 Hz

Agency Certification

(when product or package is marked)

CSA certified

CSA Class I, Division 2

Groups A, B, C, D

UL listed

CE marked for all applicable directives

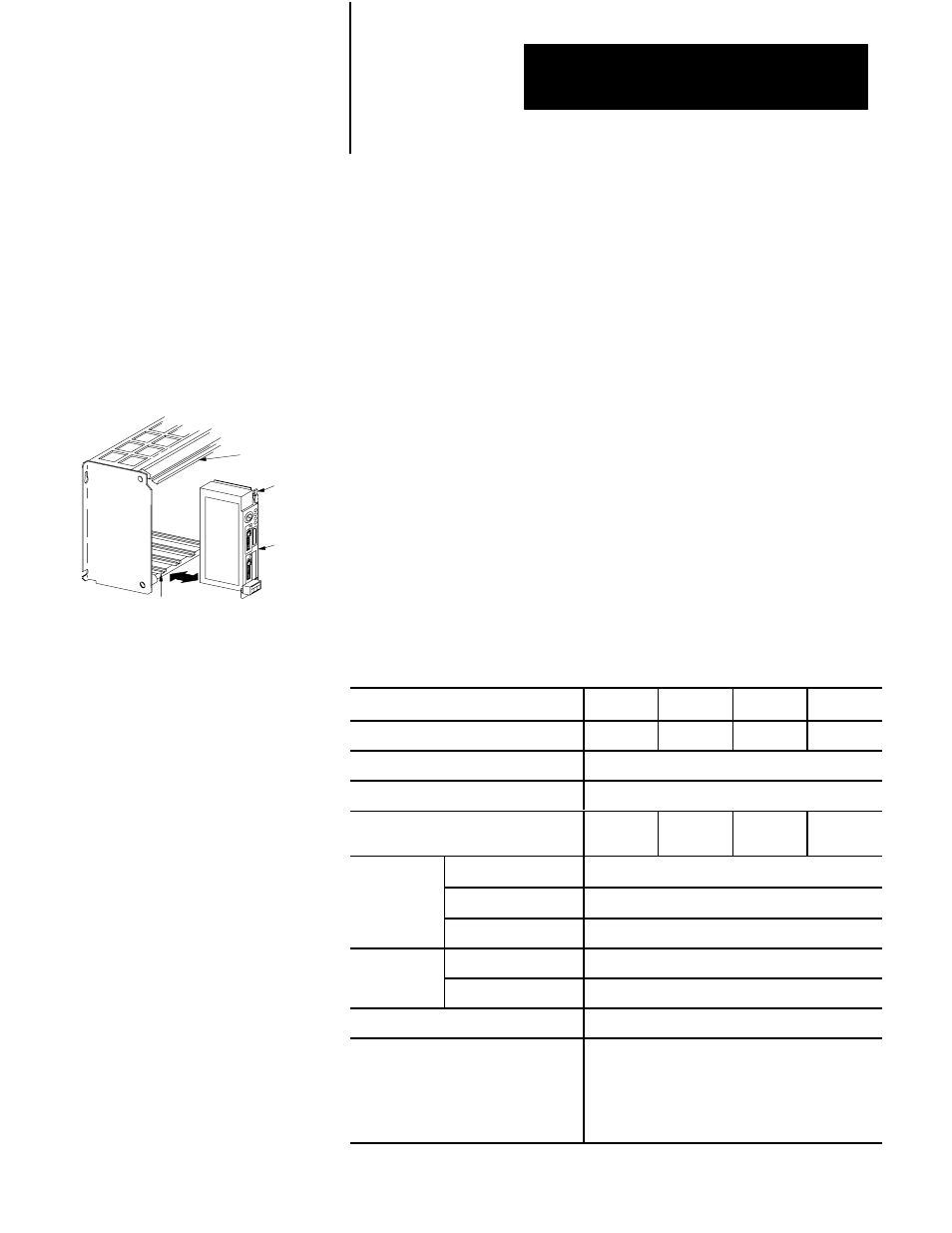

19633

PLCĆ5

processor

Ejector

Tab

Locking

Bar

Card Guides
