AC (120V) Isolated Output Module, 16 Outputs

Publication 1771Ć5.20 - January 1999

Note: You can use the shorting bar supplied with your module to
connect the L1-0 through L1-17 high side ac power connections
together if no isolation is required.

You should identify the labels on the wiring arm with the name or
number of the device connected at each terminal.

You can use an output of the 1771-ODD module to drive an input of
a 120V ac input module (1771-IA, -IA2, -IAD,-ID), as shown below,
to indicate status of turning on a motor starter, for example. Inputs
configured with the output module are not isolated from each other.

ATTENTION: Do not connect the 1771-ODD output
channels in series. Doing so can result in distortion of
the output waveform causing the output devices to
chatter.

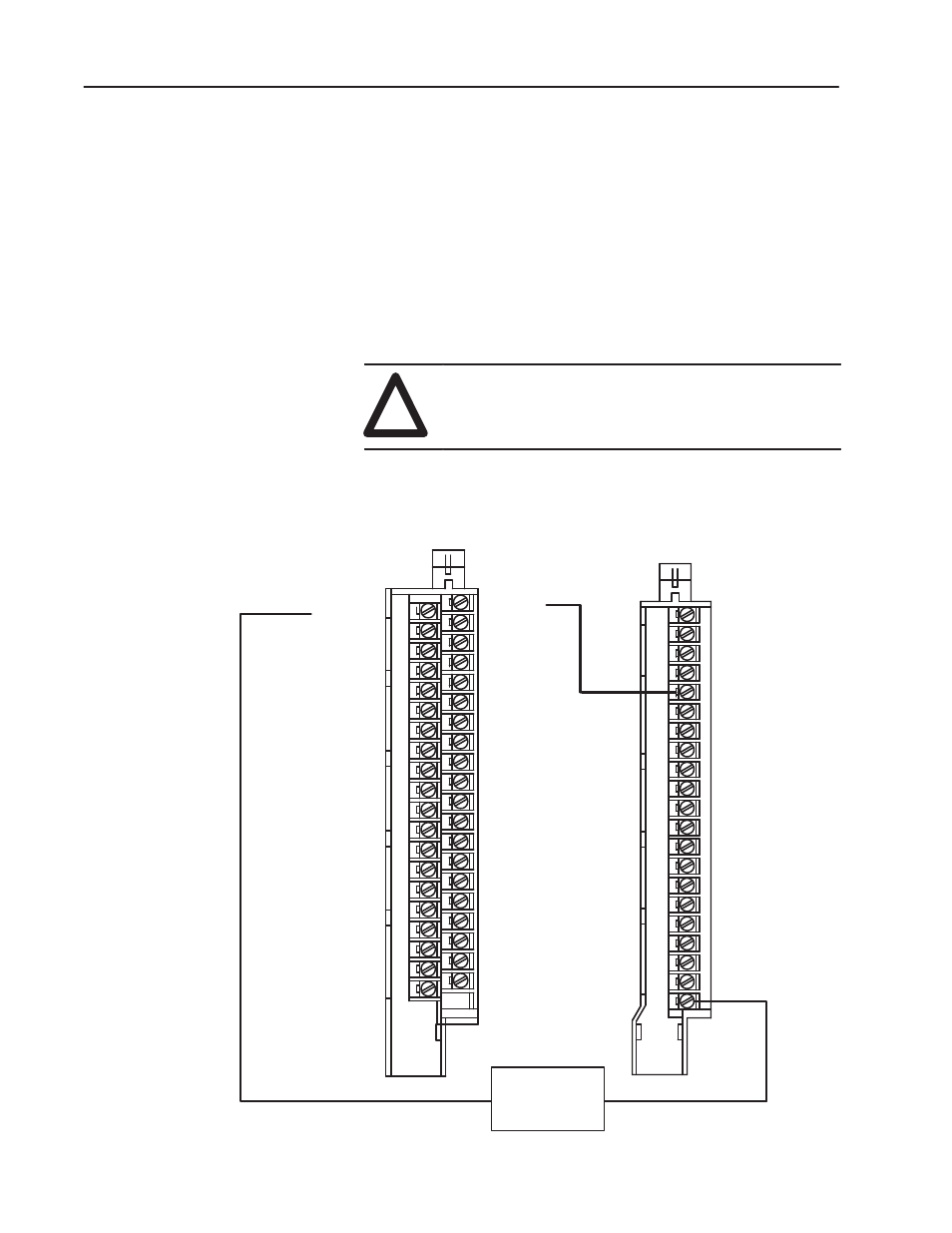

Using the 1771-ODD Output Module to drive an Input Module

Output 0
Output 1
Output 2
Output 3

Output 4
Output 5
Output 6
Output 7

Output 10
Output 11
Output 12
Output 13

Output 14

Output 15
Output 16
Output 17

ac High

ac Low

L1 Ć 0

L1 Ć 1
L1 Ć 2
L1 Ć 3

L1 Ć 4
L1 Ć 5
L1 Ć 6
L1 Ć 7

L1 Ć 10
L1 Ć 11
L1 Ć 12
L1 Ć 13

L1 Ć 14
L1 Ć 15
L1 Ć 16
L1 Ć 17

Not Used

Not used

120V ac

Supply

Input 00
Input 01
Input 02
Input 03
Input 04
Input 05
Input 06
Input 07
Input 10
Input 11
Input 12
Input 13
Input 14
Input 15

Input 16
Input 17

AC (120V) IsolatedOutput Module

Cat. No. 1771ĆODD

AC/DC (120V) Input Module

Cat. No. 1771ĆIAD

10945ĆI
