AC Output Module 5
Publication 1771-IN080A-EN-P - November 2002

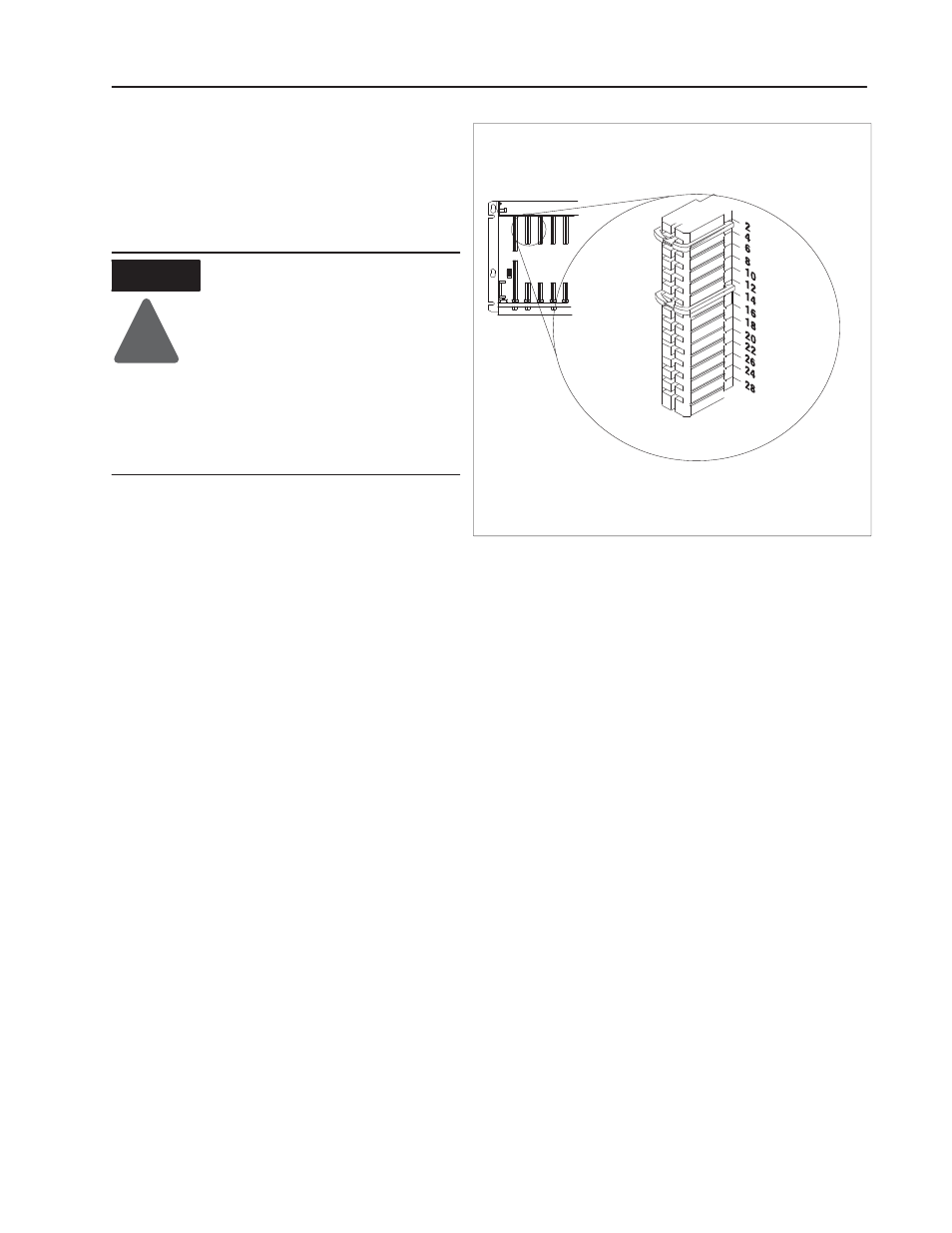

Key the Backplane Connector
Place your module in any slot in the chassis
except the leftmost slot which is reserved for
processors or adapters.
Observe the following precautions
when inserting or removing keys:
•
insert or remove keys with your
fingers
•
make sure that key placement is
correct
Incorrect keying or the use of a tool
can result in damage to the
backplane connector and possible
system faults.
ATTENTION
!
Position the keying bands in the backplane connectors to correspond to
the key slots on the module.
Place the keying bands:
- between 4 and 6
- between 12 and 14
You can change the position of these bands if
subsequent system design and rewiring makes
insertion of a different type of module necessary.
Upper
Connector
11022ĆI
I/O chassis
