7 AC (220V) Output Module Cat. No. 1771-OMD Series B
Publication 1771Ć5.26 - February 2000

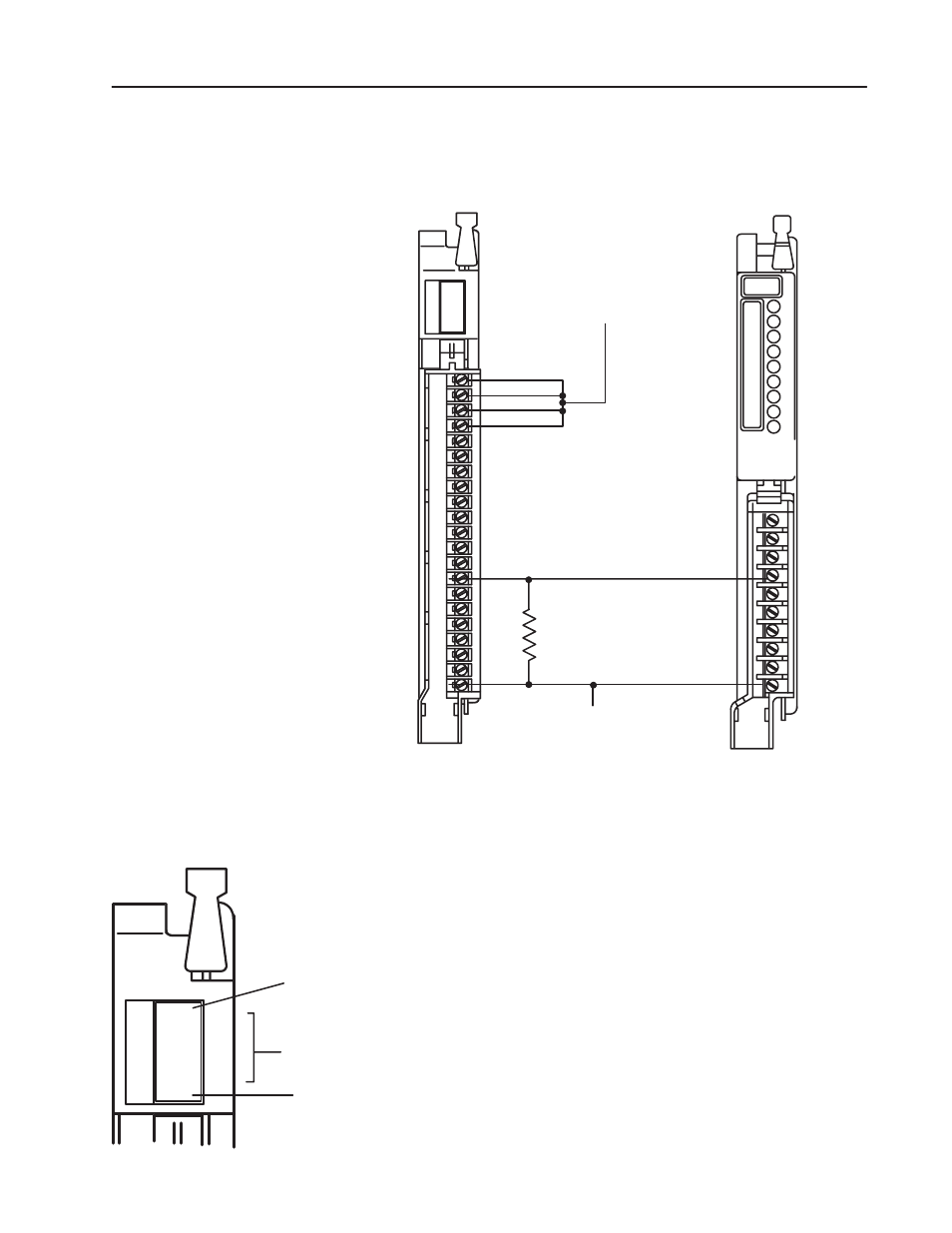

Driving an Input with an Output
(Cat. No. 1771ĆIM)
Note: 1771ĆOMD output voltĆ
age range is 184Ć250V ac.
However, the onĆstate voltage
range of the 1771ĆIM is
184Ć276V ac.
L2
ac Low
10Kohm 10W reĆ
sistor
L1
220V ac High
AC/DC (220V)
Input Module
AC (220V)
Output Module
(Cat. No. 1771ĆOMD)
11926ĆI
The front panel of your module contains one green, module active
indicator, 16 red status indicators and one red fuse-blown indicator.
The 1771-OMD/B performs diagnostics in a handshaking mode
when first powered up. Upon successful completion of the
diagnostics, the green module active indicator lights. It turns off if a
fault occurs in the data paths or the opto-isolators.
The red status indicators are provided for system logic side
indication of individual outputs. When a red status indicator lights,
voltage is present on the terminal.
The red fuse-blown indicator is lit when the fuse in the module has
cleared or been removed.
Interpreting the Status
Indicators
ACTIVE
00
01
02
03
04
05
06
07
10
11
12
13
14
15
16
17
Module Active
Indicator
(green)
00 to 17 Status
Indicators (red)
11927ĆI
FUSE Fuse Blown
Indicator
(red)
