10 SLC 500 8-Point Analog Output Module
Publication 1746-IN026A-EN-P - July 2003
Module Installation and Removal
The module fits into any slot, except the processor slot (0), in either an SLC 500
modular system or an SLC 500 fixed system expansion chassis (1746-A2).

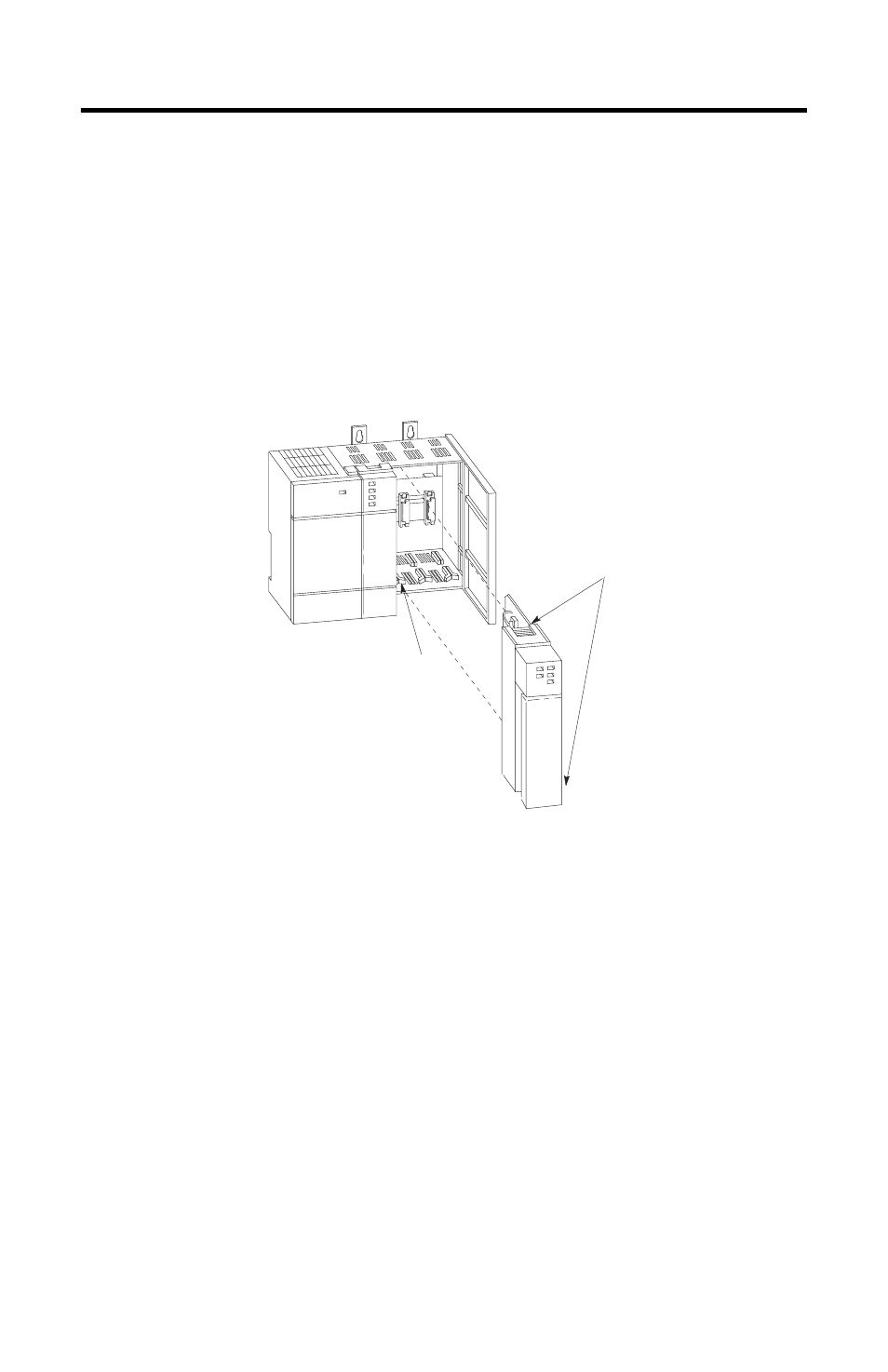

1. Align the circuit board of the analog module with the card guide of the
chassis as shown below.
2. Slide the module in until both top and bottom retaining clips are secured.
To remove the module, depress the retaining clips at the top and bottom of the
module and slide the module out of the chassis slot. Cover all unused slots with the
Card Slot Filler, catalog number 1746-N2.
Top and Bottom
Module Release (s)
Card Guide
