Troubleshooting multiple power supplies – Rockwell Automation 1771-P4R_P6R Allen-Bradley Redundent Power Installation Instructions User Manual

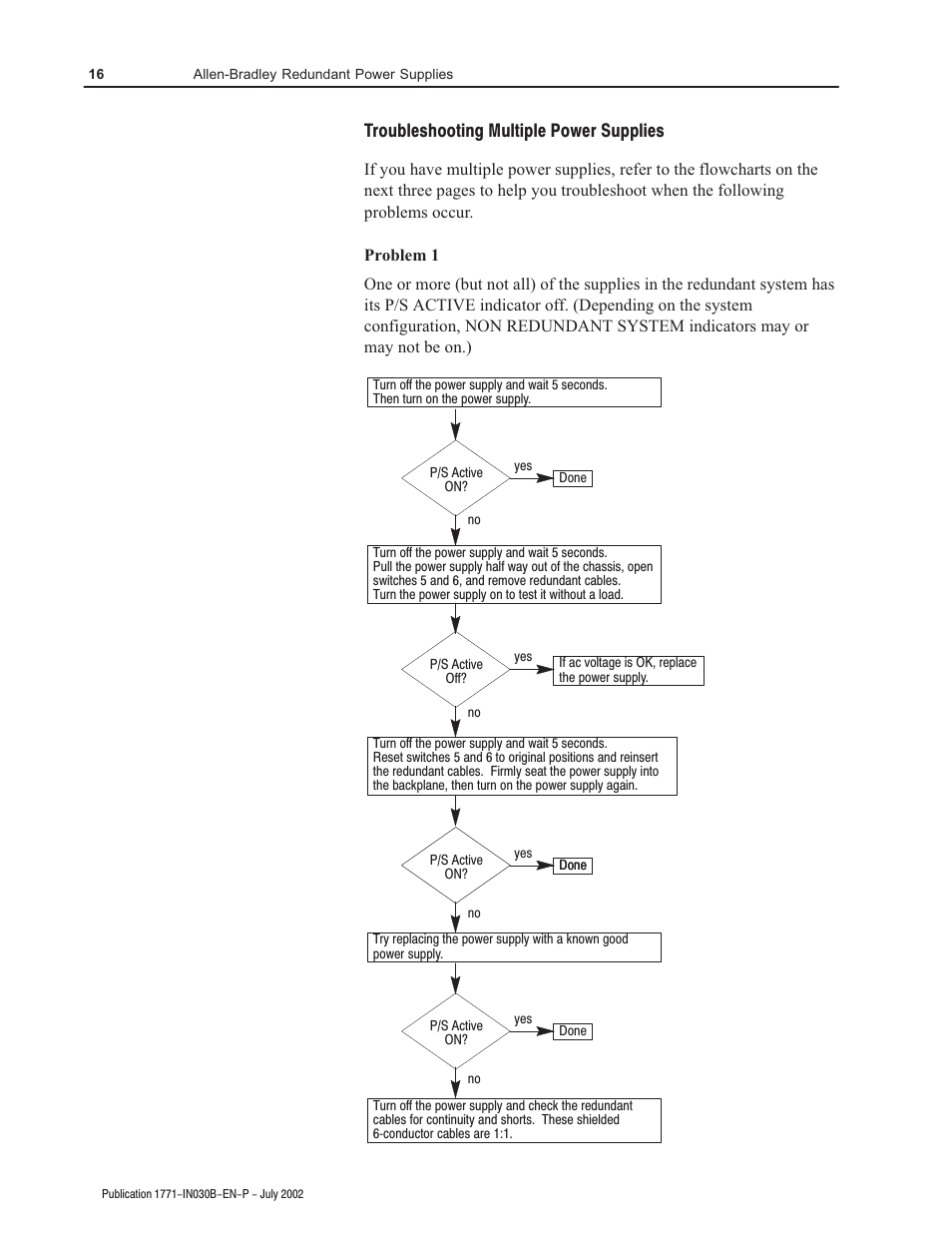

Page 16
