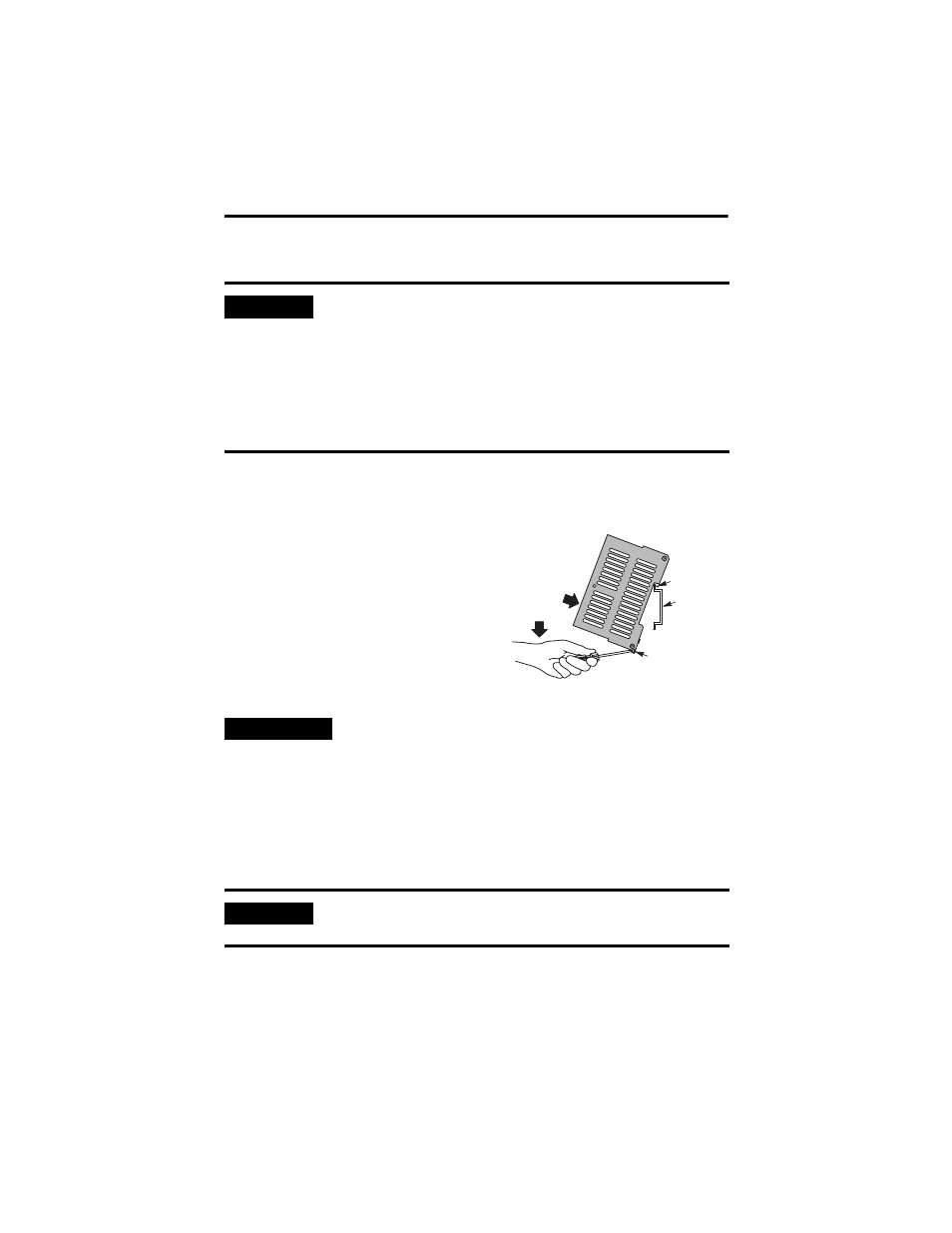

Mount the Module
The module cannot be panel-mounted. Mount the module to a DIN rail by
following the four steps below.
1. Hook the top slot over the DIN rail.
2. Insert a flathead screwdriver into the
gap between the housing and the latch
and pull the latch downward.
3. Hold the latch down as you push the
housing back onto the DIN rail.
4. Release the latch to lock the device
onto the rail.
IP Address Label
A transparent label shipped with the module can be used to note the IP Address
and System ID (SRS).
IMPORTANT
For effective cooling:
• Mount the module horizontally.
• Provide a gap of at least 100 mm (3.94 in.) above and below
the module.
• Select a location where air flows freely or use an additional
fan.
• Do not mount the module over a heating device.
TIP
To remove the module from the DIN rail, insert a flathead
screwdriver into the gap between the housing and the latch
and pull the latch downward as you lift the module off of the
rail.
IMPORTANT
If you attach the label to the module, make sure you do not cover
any of the ventilation slots.
DIN Rail
(1) Top Slot
Latch
(3)
(2)
