Getting Started with ProcessLogix R400.0 7
Publication 1757-QS040A-EN-P - October 2001
Turning Off Areas
Areas are portions of a process you wish to control. This Quick Start assumes that
Areas are turned off. To turn off areas:
1. Click Start
⇒
Programs
⇒
ProcessLogix Server
⇒
Station.
2. Select Configure
⇒
Areas
⇒
Areas.
3. Access manager mode.
a. Click Oper in the bottom right of the screen.
b. In the Station Logon dialog box, type mngr.
c. Click OK.
Oper changes to Mngr.

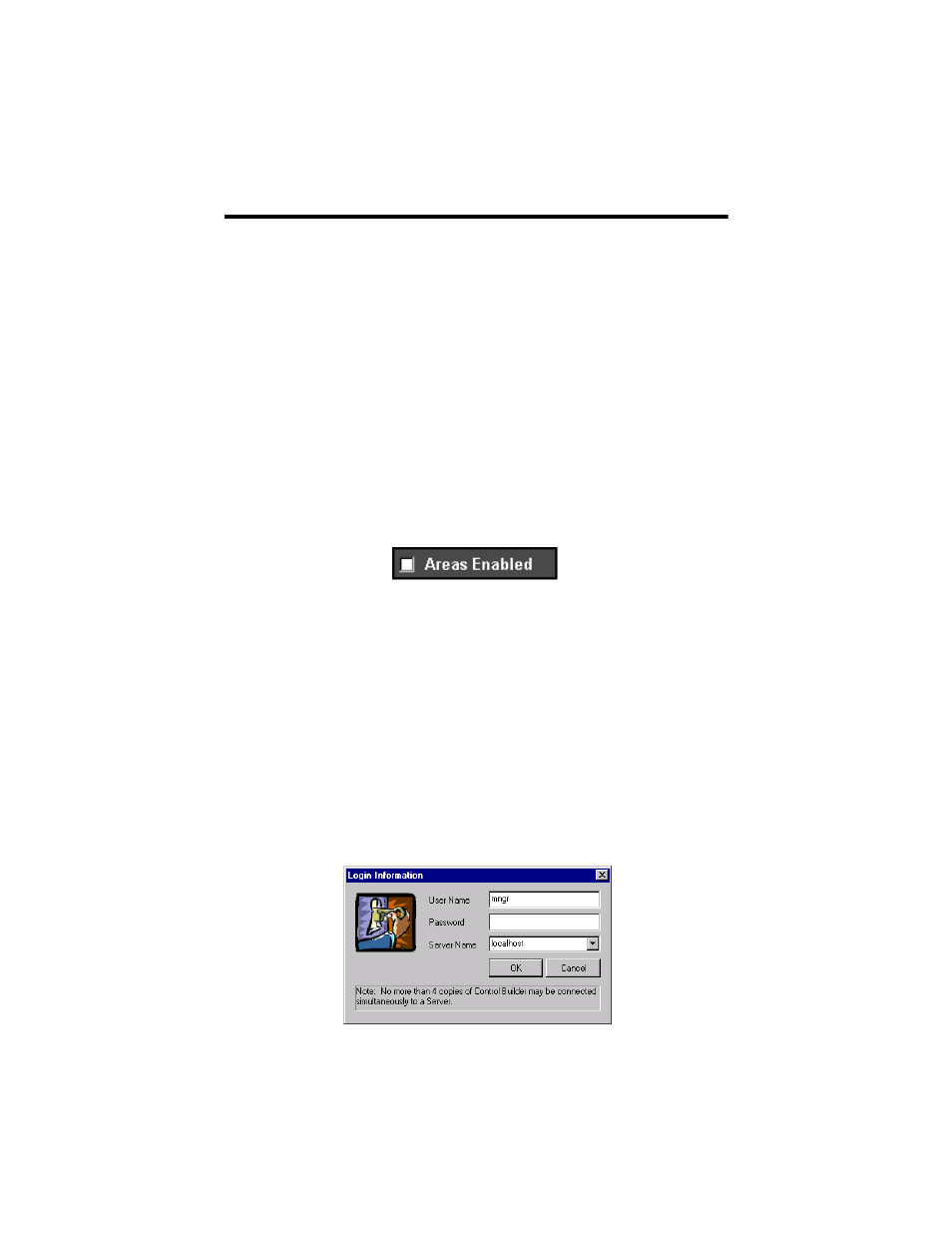

4. To disable areas, uncheck the Areas Enabled check box.
5. Exit Station.
Starting Control Builder
Control Builder software is an application you use to develop CMs (Control
Modules) and SCMs (Sequential Control Modules). The CMs and SCMs are
downloaded to the 1757-PLX52 Control Processor Module. CMs contain Function
Blocks, and together with SCMs you can tell the 1757-PLX52 how to control your
process.
To start Control Builder:
1. Click Start
⇒
Programs
⇒
ProcessLogix Engineering Tools
⇒
Control Builder.
A Login Information window appears.
