DeviceNet Digital Base Terminal Block CompactBlock LDX I/O 15
Publication 1790-IN006C-EN-P - May 2006
Connect the DeviceNet Cable
Follow these procedures to connect the DeviceNet cable to the base
block. We do not supply the DeviceNet connector with the base
block. You must purchase the connector separately. These are the
types of connectors you order directly from Rockwell Automation.
• 1799-DNETCON - 5-position open-style connector
• 1799-DNETSCON - 5-position open-style connector with
locking screws
• 1799-DNC5MMS - 5-position open-style to 12 mm connector
with locking screws

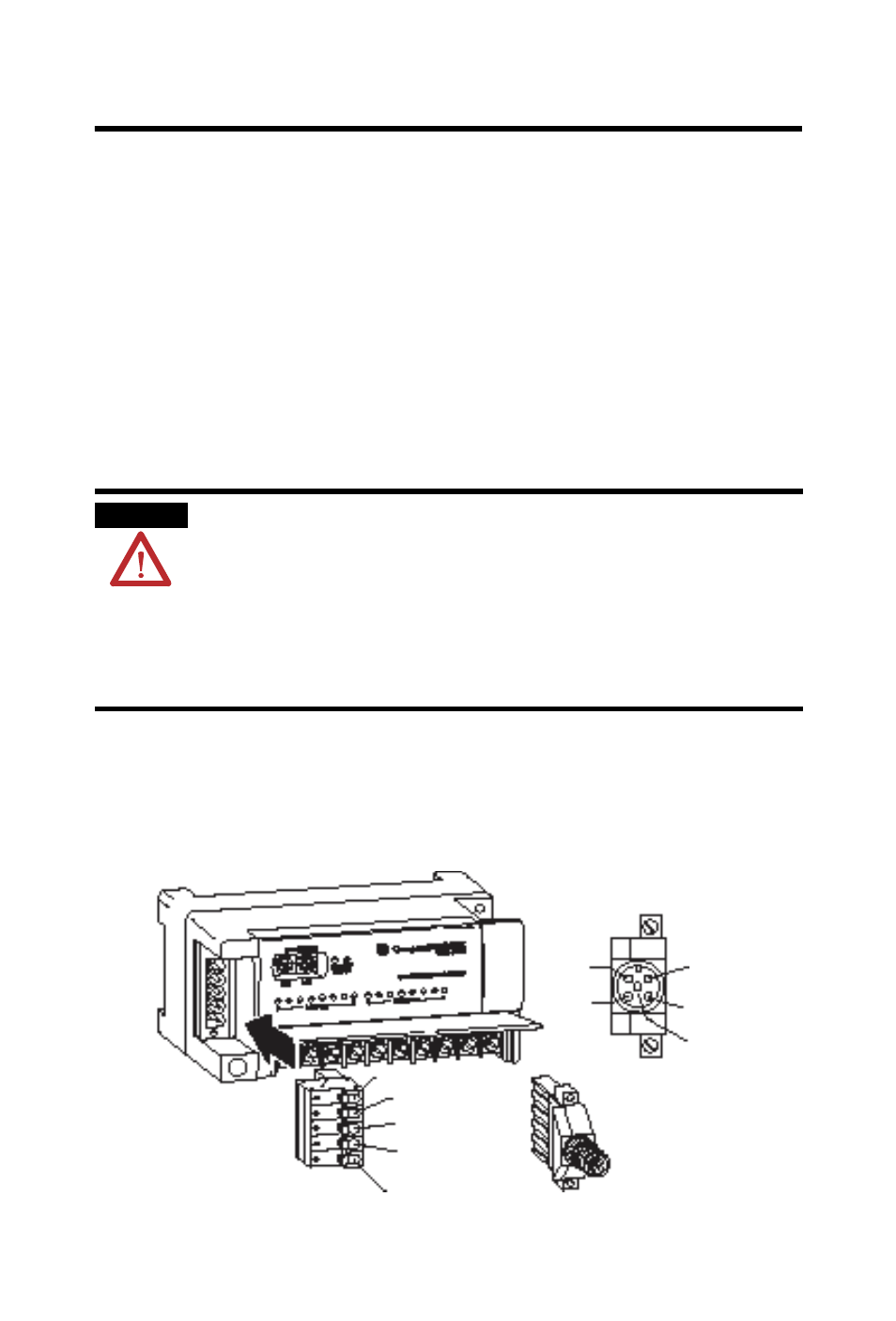

1 . Connect the DeviceNet wiring (drop line) to one of the
DeviceNet connectors as shown in the figure, noting that a
color-coded wiring diagram is printed next to the connector
on the left side of the base block.
WARNING
If you connect or disconnect the DeviceNet cable with power applied
to this module or any device on the network, an electrical arc can
occur. This could cause an explosion in hazardous location
installations.
Be sure that power is removed or the area is nonhazardous before
proceeding.
Wiring Diagram for
1799-DNETCON
Wiring Diagram for
1799-DNC5MMS Connector
Drain/Shield
Can_H White
Can_L Blue
V+ Red
V- Black
V- Black
Can_L Blue
Drain/Shield
Can_H White
V+ Red
Connector
44186
