Examples and Recommendations for Redundant Applications
(see Fig. 16 to 20)
- Use separate input fuses for each power supply.
- Use 3-phase power supplies and gain functional safety if one phase fails.
- When
Single-phase power supplies are utilized connect them to different phases.
- It is desirable to set the output voltages of all power supplies to the same value (±0.5V) to
avoid a false signal of the DC-ok signal.
- Set power supplies to “Parallel Use” if this option is available.
- Use separate mains systems for each power supply whenever it is possible
Beispiele und Empfehlungen für redundante Anwendungen
(siehe Bild 16 bis 20)
- Für jede Stromversorgung sind eigene Sicherungen zu verwenden.
- Bei 3-Phasen-Systemen erreicht man einen zusätzlichen Schutz bei Ausfall einer Phase.
- Stromversorgungen mit 1-Phasen Eingang möglichst an unterschiedliche Phasen anschließen.
- Es ist wünschenswert die Ausgangsspannung der Stromversorgungen auf annähernd gleichen
Spannungswert (±0.5V) einzustellen um falsche DC-OK Signale der Netzgeräte zu vermeiden.
- Stromversorgungen auf „Parallel Use“ stellen, falls diese Option verfügbar ist.
- Es ist vorteilhaft für jede Stromversorgung ein separates Speisenetz zu verwenden.

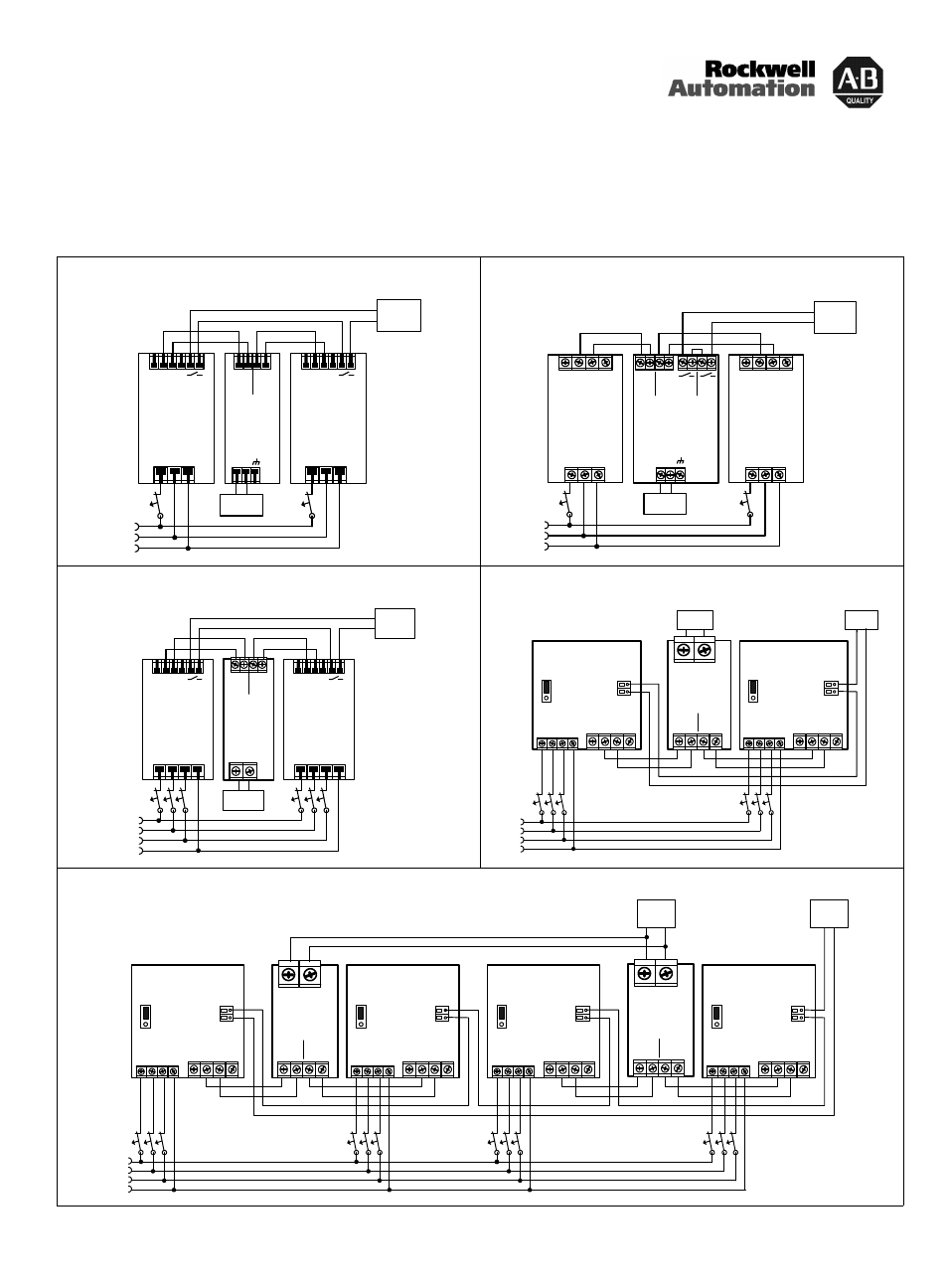

Fig. 16 / Bild 16
1+1 Redundant system utilizing 1606-XLSRED: 10A system with two 10A power supplies /
1+1 Redundantes System mittels 1606-XLSRED: 10A System mit zwei 10A Stromversorgungen
Fig. 17 / Bild 17
1+1 Redundant system utilizing 1606-XLERED: 10A system with two 10A power supplies /
1+1 Redundantes System mittels 1606-XLERED: 10A System mit zwei 10A Stromversorgungen
Failure
Monitor
10A
Load
I
I
L
N
PE
L N PE
+ +
- -
1606-XLS240E
Power
Supply
24V,10A DC-
OK
L N PE
+ +
- -
1606-XLS240E
Power
Supply
24V,10A DC-
OK
1606-
XLSRED
Redundancy
Module
Input
1
Input
2
+
-
+
-
+
-
Output
Failure
Monitor
I
I
L
N
PE
+ +
- -
L N PE
1606-XLE240E
Power
Supply
24V,10A
10A
Load
Input
1
Input
2
+
-
+
-
1606-XLERED
Redundancy
Module
Input
1
Input
2
+
-
Output
+ +
- -
L N PE
1606-XLE240E
Power
Supply
24V,10A
Fig. 18 / Bild 18
1+1 Redundant system utilizing 1606-XLSRED40: 20A system with two 20A power supplies /
1+1 Redundantes System mittels 1606-XLSRED40: 20A System mit zwei 20A Stromversorgungen
Fig. 19 / Bild 19
1+1 Redundant system utilizing 1606-XLSRED80: 40A system with two 40A power supplies /
1+1 Redundantes System mittels 1606-XLSRED80: 40A System mit zwei 40A Stromversorgungen
L1
L2
PE
L3
Failure
Monitor
I
I
I
I
I
I
L1 L2 L3 PE
+ +
- -
1606-XLS480E-3
Power
Supply
24V,20A DC-
OK
L1 L2 L3 PE
+ +
- -
1606-XLS480E-3
Power
Supply
24V,20A DC-
OK
Output
Input
1
Input
2
+
-
+
-
+
-
1606-
XLSRED40
Redundancy
Module
20A
Load
L1
L2
PE
L3
L1 L2 L3 PE
1606-XLS960E-3
40A Power Supply
+ +
- -
24V, 40A
Parallel Use
Single Use
DC-
OK
Failure
Monitor
I
I
I
I
I
I
L1 L2 L3 PE
1606-XLS960E-3
40A Power Supply
+ +
- -
24V, 40A
Parallel Use
Single Use
DC-
OK
40A
Load
+
-
+
-
Input
1
Input
2
Output
+
-
1606-XLSRED80
Redundancy
Module
Fig. 20 / Bild 20
N+1 Redundant system: 120A with four 40A power supplies / N+1 Redundantes System: 120A mit vier 40A Stromversorgungen
L1 L2 L3 PE
1606-XLS960E-3
40A Power Supply
+ +
- -
24V, 40A
Parallel Use
Single Use
DC-
OK
120A
Load
Failure
Monitor
I
I
I
I
I
I
L1 L2 L3 PE
1606-XLS960E-3
40A Power Supply
+ +
- -
24V, 40A
Parallel Use
Single Use
DC-
OK
+
-
+
-
Input
1
Input
2
Output
+
-
1606-XLSRED80
Redundancy
Module
L1 L2 L3 PE
1606-XLS960E-3
40A Power Supply
+ +
- -
24V, 40A
Parallel Use
Single Use
DC-
OK
L1 L2 L3 PE
1606-XLS960E-3
40A Power Supply
+ +
- -
24V, 40A
Parallel Use
Single Use
DC-
OK
I
I
I
I
I
I
L1
L2
PE
L3
1606-XLSRED80
Redundancy
Module
+
-
+
-
Input
1
Input
2
Output
+
-
