1397 300HP AC Line Disconnect 3
1397-5.27 October, 1997
TORQUE 14-10GA 35 LB.-IN. 0 GA 48 LB.-IN. SPEC
GND
! DANGER
RISK OF ELECTRICAL SHOCK. DISCONNECT INPUT
POWER BEFORE SERVICING EQUIPMENT.
P/N 33145
DANGER
CIRCUIT BREAKER DOES NOT DISCONNECT INCOMING A0
LINE POWER IT ONLY PROVIDES DC FAULT PROTECTION.
LE DISCONECTEUR NE COUPTE PAS L'AUTOMENTATION DU SPOTEUR IL NES
SERT QUE A ASSURER UNE PROTECTION CONTRE LES DESFAULTS DC. 810903-2424
283 282 281
4FU 5FU 6FU 7FU 8FU
183 182 181
RISK OF SHOCK REPLACE AFTER SERVICING
DANGER !
DS200
Mounting
Hole
DS300
Mounting
Hole
ON
OFF
DS300 Disconnect
Insulator
Insulator
ON
OFF
DS200 Disconnect

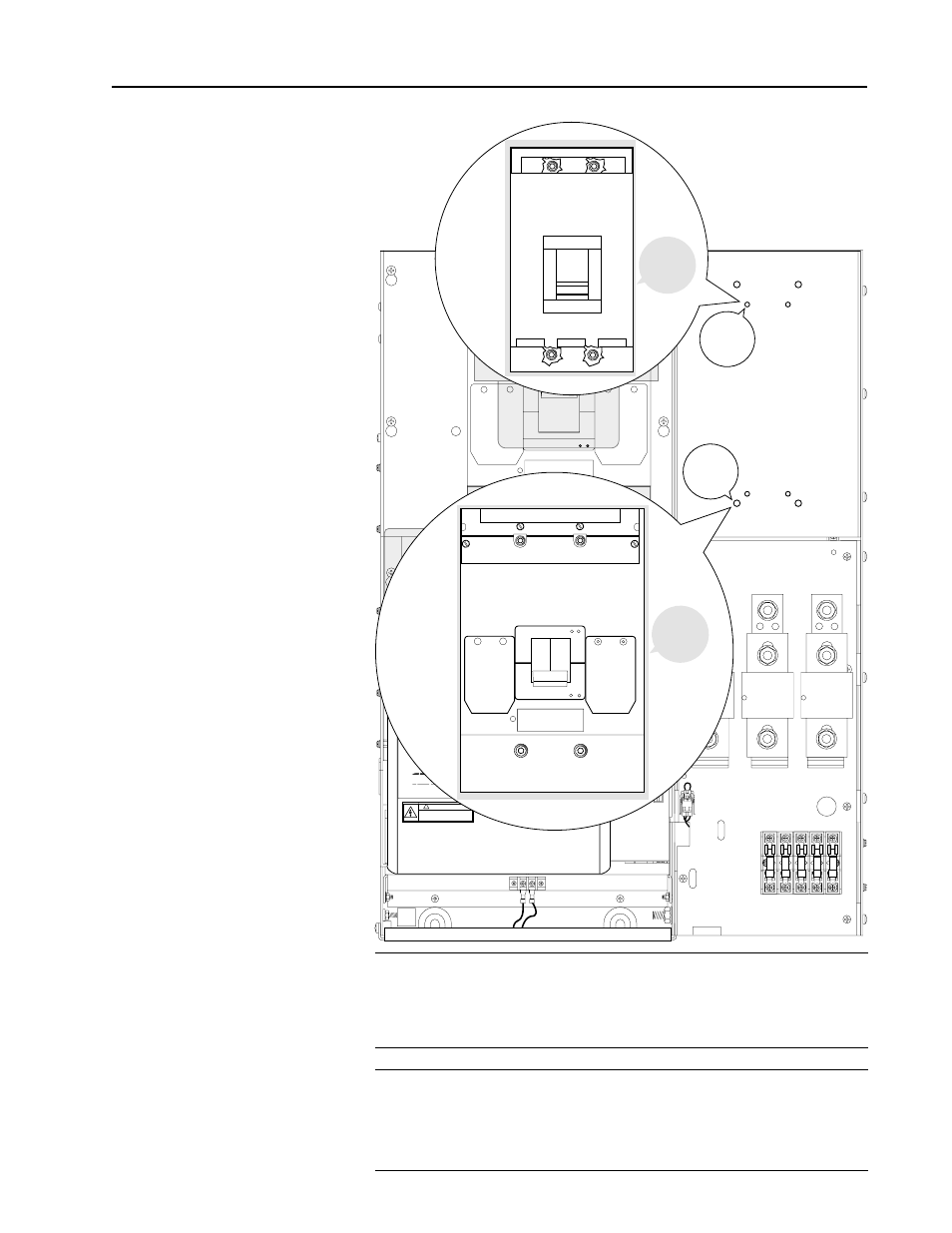

DS200 & DS300 Installation
(continued)
❐ 5 Hold the insulator in place, pick up the disconnect, and position it
over the threaded holes on the drive’s mounting panel. The (4) inner
holes are for the DS200 disconnect, the (4) outer holes are for the
DS300 disconnect.
❐ 6 Attach the disconnect by hand tightening the (2) bolts inserted
previously. Insert the remaining (2) mounting bolts
& lockwashers.
Tighten all DS200 bolts to 7N-m (60lb.-in.). Tighten all DS300
bolts to 14N-m (125lb.-in.).
