24 DC Motors
Conduit Boxes
Conduit box on C210ATZ - C400ATZ is located on the frame at the
commutator end.
Brush Rigging and Brush Holders
The brush holders are of constant pressure design and do not require
nor are capable of adjustment over the life of the brushes.
Bracket Re-assemblY
To obtain proper planity between the integral mounting feet on the
front and back end brackets. a smooth level surface should be used to
align the brackets when they are assembled to the frame.

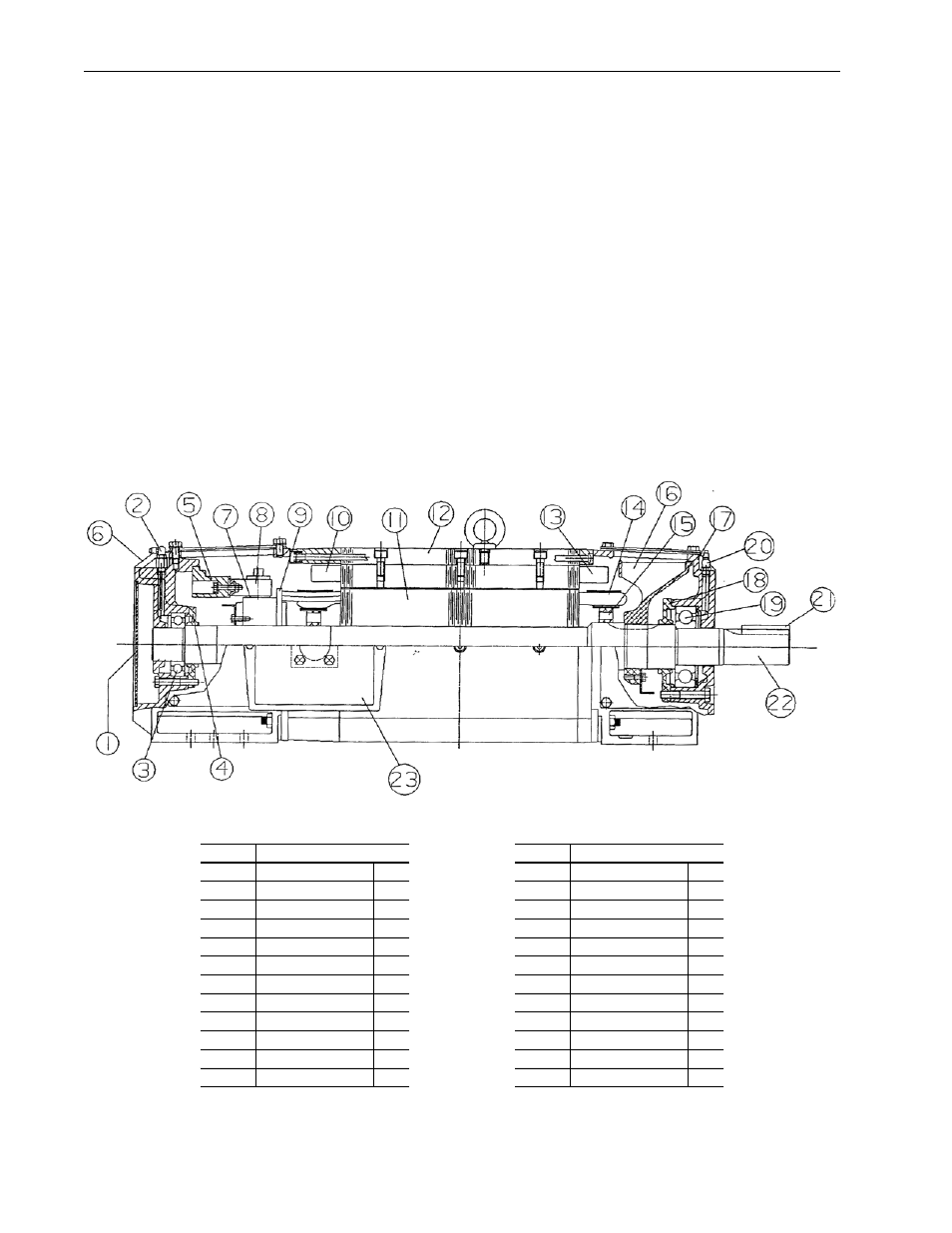

Parts Identification
C210ATZ - C440ATZ
Number Description Number Description
1 Outer Cover FE 13 Field Coil with Pole
2 Grease Plug FE 14 Armature Coil
3 Ball Bearing FE 15 Winding Support
4 Bearing Cap FE 16 Inner Fan
5 Rocker 17 Bracket BE
6 Bracket FE 18 Bearing Cap BE
7 Brush 19 Ball Bearing BE
8 Brush Holder 20 Grease Plug BE
9 Commutator 21 Shaft Key
10 Field Coil with Pole 22 Shaft
11 Armature Core 23 Conduit Box
12 Frame
